Professional bldc motor driver with advanced FOC technology for industrial applications. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Features: Simple and compact structure, low heating and low noise, convenient installation, wide adaptability, high working frequency, sensitive action, reliable braking and fast speed.
Pair with our BLDC Motors to create a safe, high-performance drive system.
LECTRICAL SPECIFICATION
| Model | WSDZ1-0.5 | WSDZ1-1 | WSDZ1-2 | WSDZ1-3 | WSDZ1-2B | WSDZ1-4B | WSDZ1-8B | |
| Rated torque | N.m | 0.5 | 1 | 2 | 3 | 2 | 4 | 8 |
| Rated Power | W | 6 | 8 | 10 | 13 | 10 | 15 | 25 |
| Rated Voltage | V DC | 110/99/48/24/12 | ||||||
| Engaging time | ≤ms | 45 | 50 | 55 | 55 | 55 | 63 | 87 |
| Disengaging Time | ≤ms | 39 | 43 | 48 | 48 | 48 | 55 | 72 |
| Allowable Max.Speed | RPM | 6000 | 6000 | 6000 | 6000 | 6000 | 3000 | 3000 |

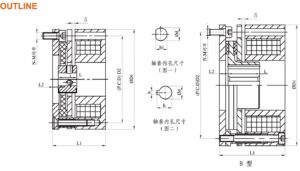

DIMENSION
| Model | D1 | D2 | L1 | L | L2 | N – M | d | h1 | h | b | δ（max） | δ（min） |
| WSDZ1-0.5 | 56 | 48 | 30.7 | 10 | 0.2 | 3-M3 | 6 | 5 | ／ | ／ | 0.4 | 0.15 |
| WSDZ1-1 | 62 | 54 | 35.2 | 10 | 0.2 | 3-M4 | 8 | 7 | ／ | ／ | 0.4 | 0.15 |
| WSDZ1-2 | 75 | 66 | 38.7 | 11 | 2 | 3-M4 | 10 | ／ | 11.8 | 4 | 0.4 | 0.2 |
| WSDZ1-3 | 0.4 | 0.2 | ||||||||||
| WSDZ1-4B | 84 | 72 | 42.3 | 18 | 7 | 3-M4 | 12 | ／ | 13.8 | 4 | 0.5 | 0.2 |
| WSDZ1-8B | 102 | 90 | 50.2 | 20 | 7.5 | 3- M5 | 15 | ／ | 17.3 | 5 | 0.5 | 0.2 |
