40mm Outer Rotor BLDC Motor – High-Precision Industrial Solution for Gimbals & Drone Propulsion

Product Overview

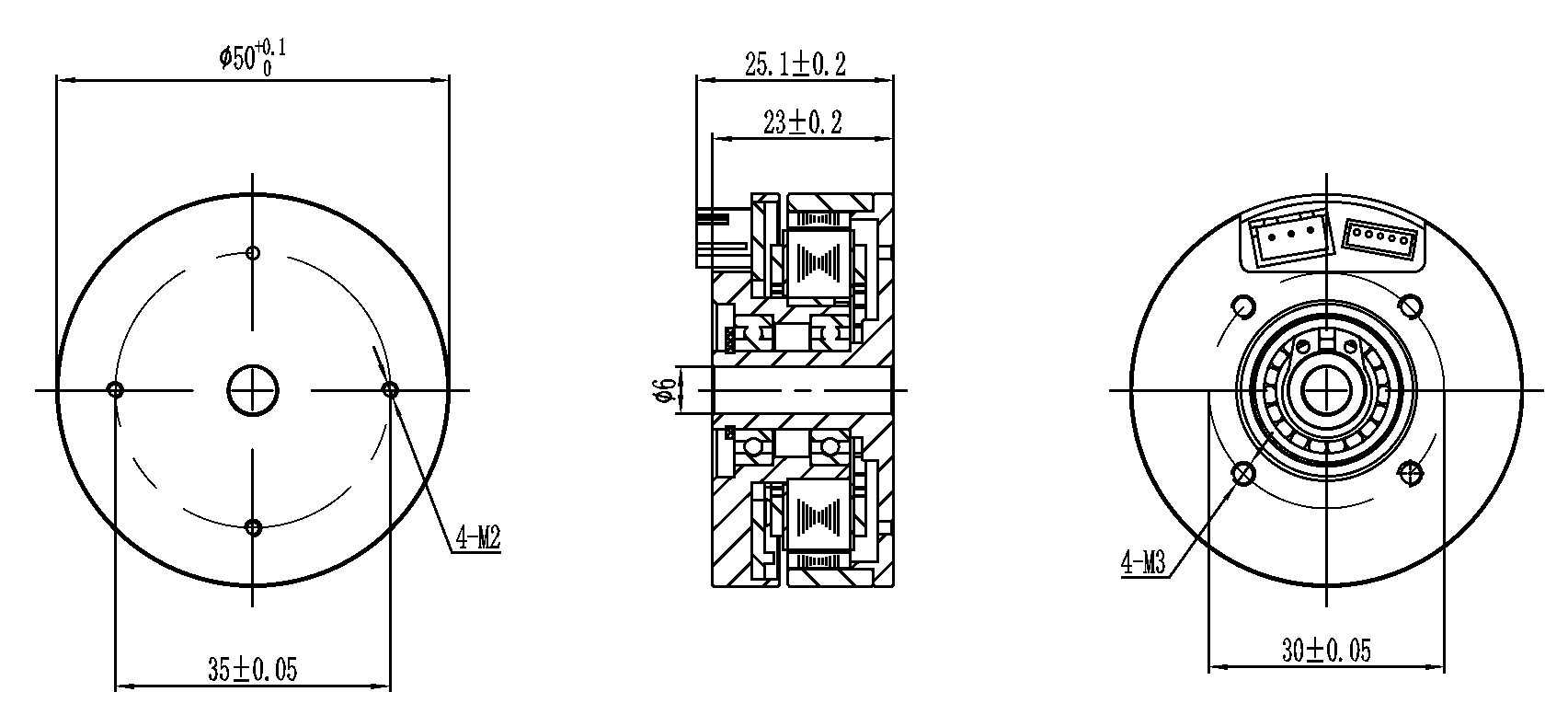

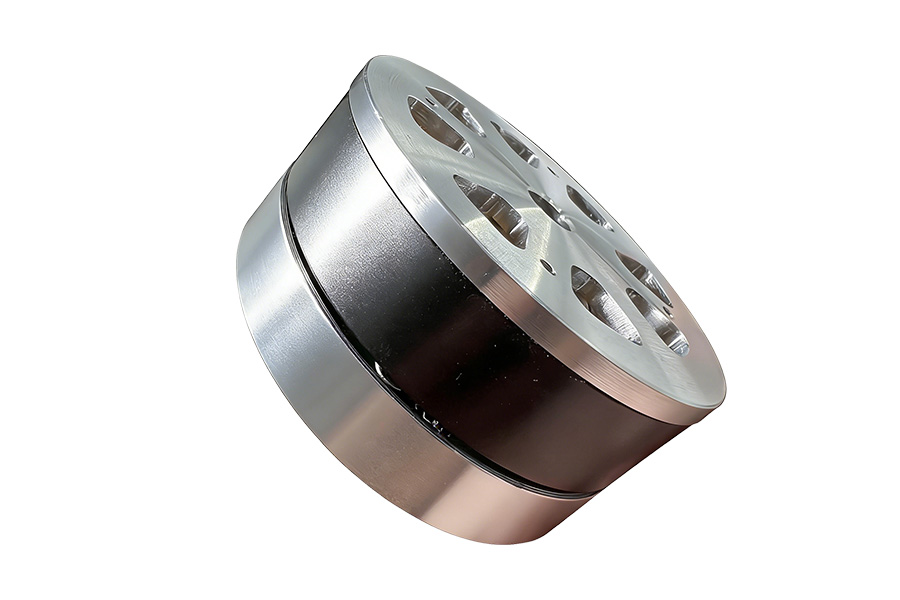

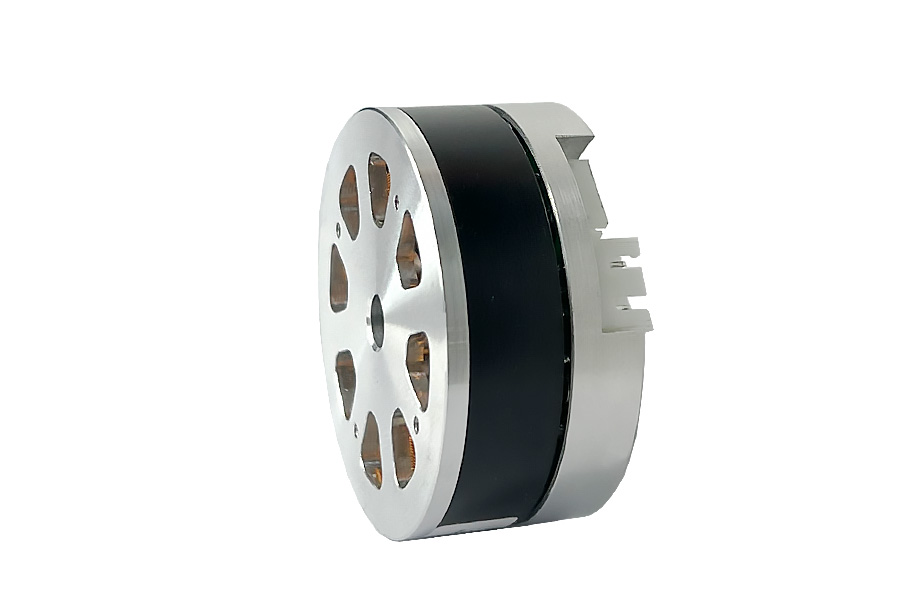

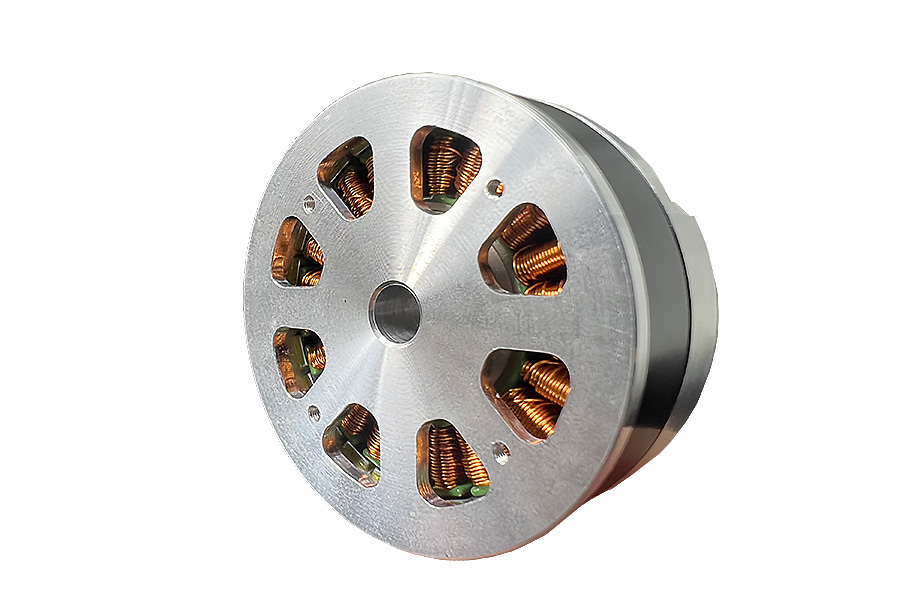

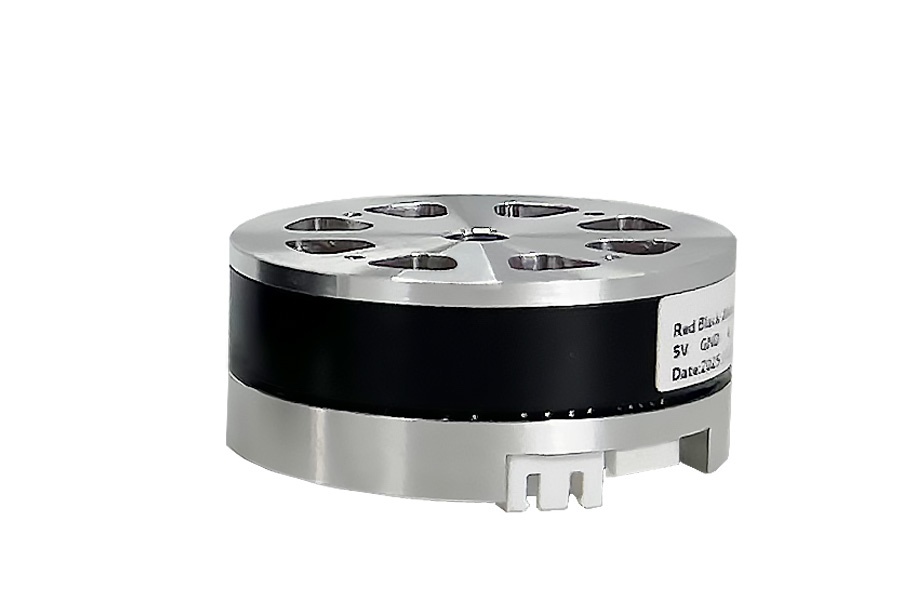

The ZGC40JM Series is a 40mm Outer Rotor Brushless DC Motor specifically engineered for precision-controlled applications. Featuring a 26-pole high torque density design and IP65-rated protection, this series delivers exceptional smoothness and stability, especially at low speeds. Whether integrated into propulsion systems for industrial drones or used for high-precision camera gimbal (Pitch/Yaw) adjustments, the ZGC40JM ensures reliable and consistent power output for demanding environments.

Key Features

• Superior Smoothness with 26-Pole Design: The high pole count (14 pole pairs) significantly reduces torque ripple, ensuring silk-smooth stability for gimbal stabilization systems and crystal-clear imaging.
• Rugged Environment Adaptation (IP65): Engineered with an IP65 waterproof and dustproof rating (excluding the output end) and a wide operating temperature range of -20°C to 60°C, it is built to excel in harsh outdoor missions.
• High Efficiency & Low Heat: Optimized with low line resistance (as low as 0.81Ω) and low inductance, this High Efficiency BLDC Motor maximizes battery life and minimizes thermal buildup during extended operations.
• Compact & Lightweight (145g): At only 145g, the lightweight form factor provides an excellent power-to-weight ratio, minimizing the overall payload for UAVs and handheld devices.

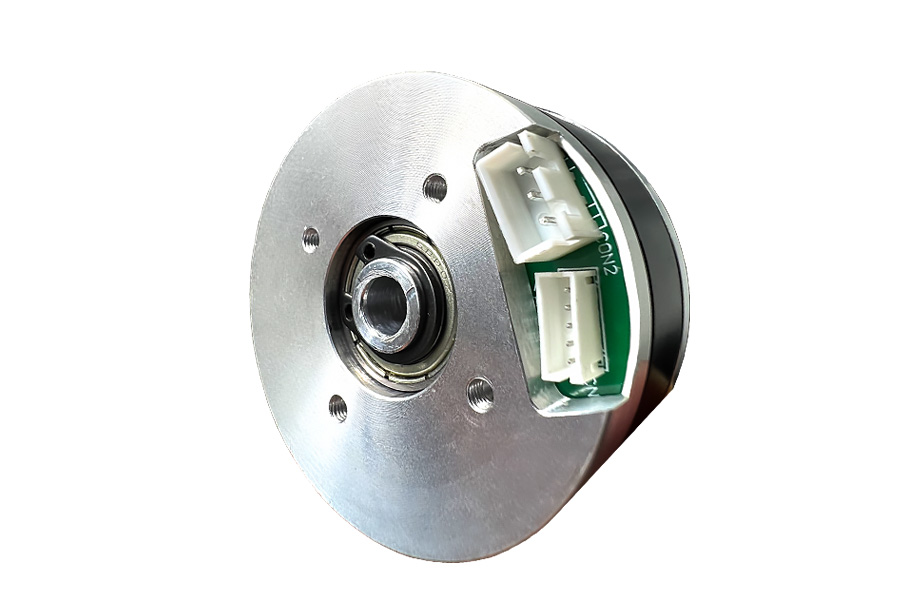

• Flexible Control Modes (Open/Closed Loop): Integrated with high-reliability Hall sensors for precise position feedback and commutation. It supports both cost-effective Open-loop operation and High-precision Closed-loop control, catering to diverse needs from robotic mowers to industrial inspection gimbals.
• Versatile Performance Specifications:

1. 12V Version: Optimized for High Torque (0.11 N.m) and low-speed stability—ideal for precision industrial inspection and handheld gimbal Pitch/Yaw axes.
2. 24V Version: Optimized for High Speed (4400 RPM)—perfectly suited for drone propulsion systems or fast-response brushless garden tools.

Performance Data

One-Stop Power Solution: ZGC Original Driver Integration

To unlock the peak performance of the ZGC40JM series, we recommend pairing it with ZGC’s self-developed Brushless Motor Drivers. Our official drivers feature advanced algorithms specifically tuned for the 26-pole configuration, providing superior commutation logic and current control. This hardware-software synergy ensures rapid dynamic response in closed-loop modes while effectively suppressing vibrations at low speeds for an ultra-smooth control experience.

Applications

Precision Gimbals: Pitch/Yaw axis adjustment for Industrial Inspection Gimbals and Aerial Photography Drones.

Smart Agriculture & Landscaping: Robotic Mowers, power pruners, and handheld blowers.

Specialized UAVs: Multi-rotor propulsion systems and payload mechanisms for High Torque BLDC requirements.

Performance Curve Analysis

Model: ZGC40JM01-12V-O-S-K (High Torque & Low Speed)

Linear Torque Delivery: Maintains a stable rated torque of 0.11 N.m at 900 RPM with minimal fluctuation.

Smooth Speed Transition: Provides precise control across the full speed range, from zero to a maximum of 1200 RPM.

Thermal Efficiency: Operates at a rated current of 0.95A, with low internal resistance (2.6Ω) to minimize heat buildup.

Precision Control: The 26-pole design ensures ultra-low torque ripple, ideal for sensitive gimbal Pitch/Yaw adjustments.

Model: ZGC40JM02-24V-O-S-K (High Speed & Dynamic Response)

High Power Output: Delivers a robust 20W rated power for demanding propulsion and driving tasks.

Enhanced Speed Range: Optimized for high-speed operation, with a rated speed of 4000 RPM and a peak of 4400 RPM.

Low Internal Loss: Features ultra-low resistance (0.81Ω) and inductance (0.17mH) for maximum energy conversion efficiency.

Rapid Commutation: Integrated Hall sensors enable fast and smooth directional changes, perfect for high-speed garden tools and drones.
