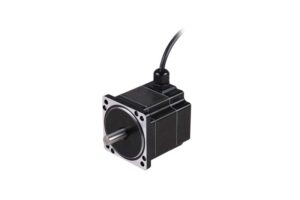

NEMA 24 (60mm) 2-Phase Bipolar Stepper Motor, 1.8° Step Angle, IP65 Waterproof

IP-rated waterproof bldc motor for outdoor and wet environment applications. (65W, 60mm) Get a free quote from ZGC Motors, a trusted servo motor manufacturer.

  • High Torque, Wide Range: Tackle tough loads with ease. With a torque range of 1.2-3.2 Nm, it performs consistently from startup to high speed.  Providing ample force to drive mechanisms.
  • Weather-Resistant Design: Don’t let dust or water stop your operations. The IP65 housing makes it ideal for outdoor use.
  • Easy to Integrate: As a standard NEMA 24 (60mm) frame motor, it mounts seamlessly to a wide range of existing machinery and drivers.
  • Cost-Effective Performance: Get the reliability and torque you need without the premium price of more complex 3-phase systems.
  • Ideal for Agricultural & Fountain Applications

Motor Specifications



ModelCurrentResistanceInductanceHolding torqueInertiaLengthWeight
AΩ±10%mH±20%N.mOZ.ing/cm²mm MaxKgLbs
SD60IP256-40044.00.51.21.5212.42340701.83.97
SD60IP286-50045.00.42.03.2453.166901003.16.83

Power Your Outdoor Applications with Confidence.

With a high torque output of up to 3.2 Nm and complete IP65 waterproof protection, it’s the ideal drive solution for harsh outdoor applications.

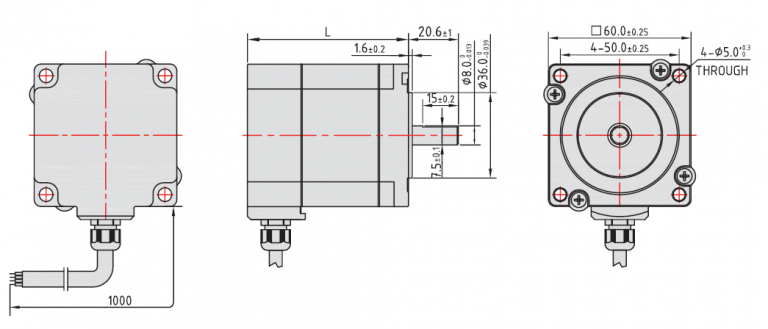

  • DIMENSION (UNIT: MM)

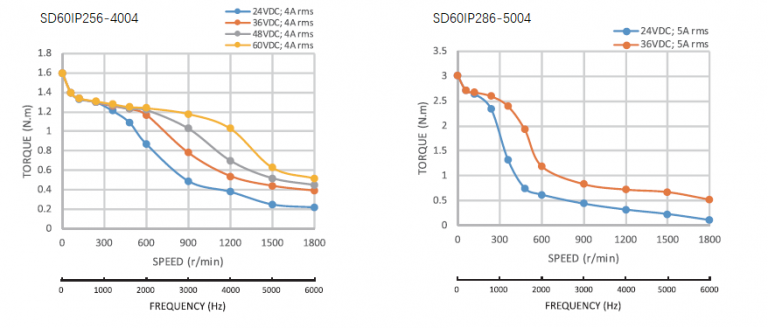

  • TORQUE-FREQUENCY CURVE
