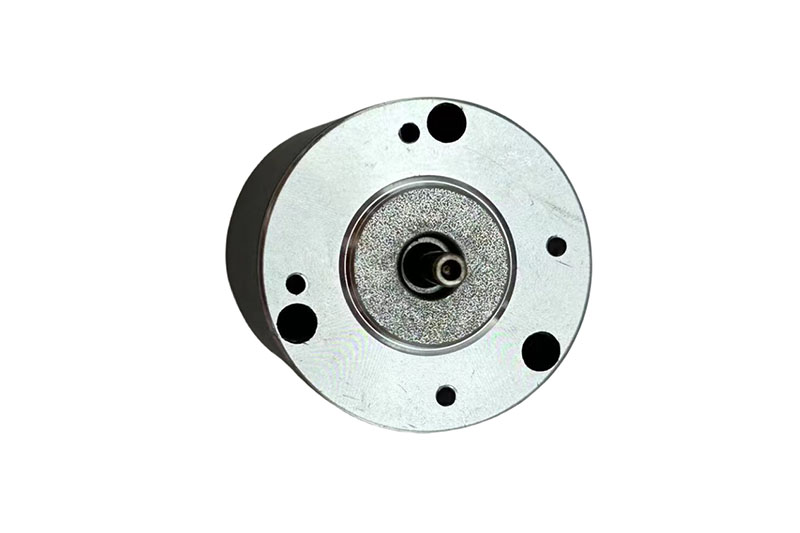

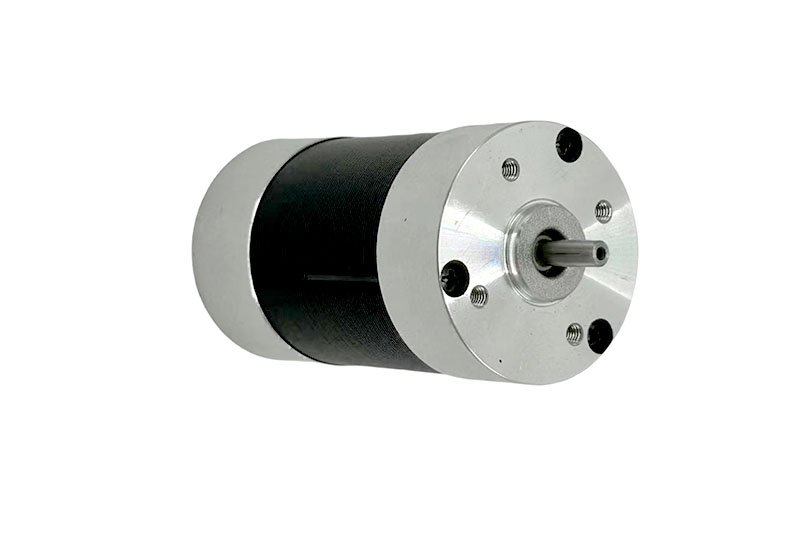

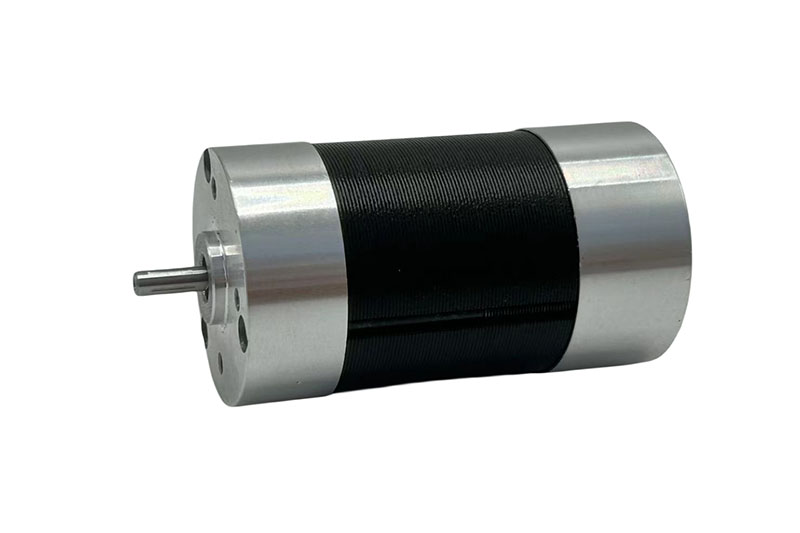

Features: Small size, 20-40W power, 12-48V DC wide voltage, 10-80 mN·m rated torque, wide speed range, high efficiency.
Optional: Planetary gearbox, optical encoder.
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |
WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 20AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 36DMW50-2440 | 36DMW55-2440 | 36DMW63-2440 | |
| Voltage | V | 24 | 24 | 24 |
| Number of poles | 4 | 4 | 4 | |
| Rated power | W | 20 | 30 | 40 |
| No load speed | rpm | 6000 | 6000 | 6000 |
| Rated torque | Nm | 0.04 | 0.06 | 0.08 |
| Rated Speed | rpm | 5000 | 5000 | 5000 |
| Rated Current | A | 1.3 | 1.8 | 2.3 |
| Peak Torque | Nm | 0.12 | 0.18 | 0.24 |
| Weight | Kg | 0.2 | 0.25 | 0.3 |
| Length | mm | 50 | 55 | 63 |
