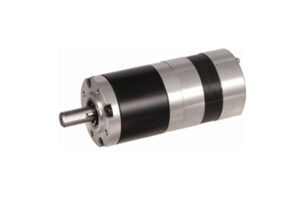

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Permissible Load Range : 3N.m~30N.m
Motor Power : 20-80W optional
Application : elevator door,solar cleaning system
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Peak torque | Peak current |
| VDC | r/min | r/min | N.m | W | N.m | A | |||
| 57DMWH55-2413 | 4 | 3 | 24 | 2000 | 1300 | 0.15 | 20 | 0.4 | 3.5 |
| 57DMWH55-2422 | 4 | 3 | 24 | 3000 | 2250 | 0.15 | 35 | 0.4 | 6.3 |
BRUSHLESS GEAR MOTOR SPECIFICATION
57DMWH55-2413 DC Motor
| Reduction ratio | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | |
| Number of gear trains | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |

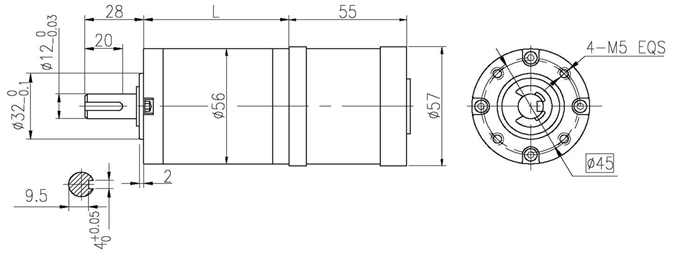

| Length(L) | mm | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 |
| No-load speed | r/min | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 | 21 | 17 |
| Rated speed | r/min | 100 | 87 | 72 | 57 | 28 | 24 | 20 | 17 | 14 | 11 |
| Rated torque | N.m | 1.5 | 1.8 | 2.1 | 2.6 | 5.1 | 6 | 7 | 8.4 | 10.5 | 13.2 |
| Peak torque | N.m | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 |
57DMWH55-2422 DC Motor
| Reduction ratio | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | |
| Number of gear trains | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Length(L) | mm | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 |
| No-load speed | r/min | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 | 31 | 25 |
| Rated speed | r/min | 173 | 150 | 125 | 98 | 48 | 41 | 35 | 29 | 23 | 19 |
| Rated torque | N.m | 1.5 | 1.8 | 2.1 | 2.6 | 5.1 | 6 | 7 | 8.4 | 10.5 | 13.2 |
| Peak torque | N.m | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 |
