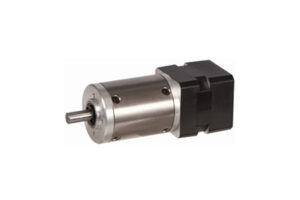

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Permissible Load Range : 0.5N.m~5N.m
Motor power : 15-30W optional
Application : reflowing soldering machine,vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Peak torque | Peak current |
| VDC | r/min | r/min | mN.m | W | mN.m | A | |||
| 42DMW41-2430 | 8 | 3 | 24 | 4000 | 3000 | 63 | 20 | 190 | 3.6 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | |

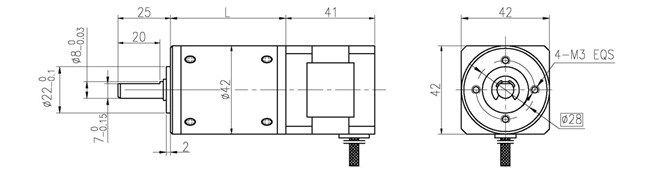

| Length(L) | mm | 34.9 | 34.9 | 45.5 | 45.5 | 45.5 | 55.9 | 55.9 | 55.9 | 55.9 | 66.3 |
| No-load speed | r/min | 1047 | 820 | 267 | 211 | 167 | 71 | 56 | 44 | 34 | 19 |
| Rated speed | r/min | 785 | 615 | 200 | 158 | 125 | 54 | 42 | 33 | 26 | 14 |
| Rated torque | N.m | 0.22 | 0.28 | 0.77 | 1.0 | 1.2 | 2.6 | 3.3 | 4.2 | 5 | 5 |
| Peak torque | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |
