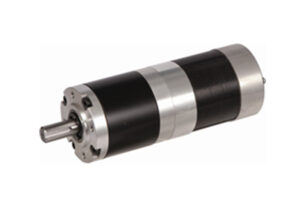

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Permissible Load Range : 3N.m~30N.m
Motor power : 50-100W optional
Application : texitle machine,vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Peak torque | Peak current |
| VDC | r/min | r/min | N.m | W | N.m | A | |||
| 57DMW75-2420 | 4 | 3 | 24 | 3000 | 2000 | 0.22 | 50 | 0.66 | 8 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | |
| Length(L) | mm | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 |
| No-load speed | r/min | 833 | 706 | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 |
| Rated speed | r/min | 556 | 471 | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 |
| Rated torque | N.m | 0.71 | 0.84 | 2.3 | 2.7 | 3.2 | 4.1 | 7.5 | 8.8 | 10 | 12 |
| Peak torque | N.m | 9 | 9 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 |
