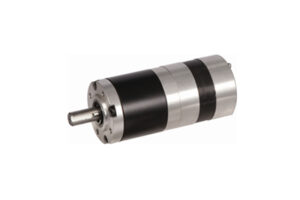

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Permissible Load Range : 3N.m~30N.m
Motor power : 25-50W optional
Application : texitle machine,vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Peak torque | Peak current |
| VDC | r/min | r/min | N.m | W | N.m | A | |||
| 57DMW55-2420 | 4 | 3 | 24 | 3000 | 2000 | 0.11 | 25 | 0.33 | 4.5 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | |
| Number of gear trains | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Length(L) | mm | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 |
| No-load speed | r/min | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 | 31 | 25 |
| Rated speed | r/min | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 | 21 | 17 |
| Rated torque | N.m | 1.2 | 1.3 | 1.6 | 2.0 | 3.8 | 4.4 | 5.2 | 6.2 | 7.7 | 9.7 |
| Peak torque | N.m | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 |
