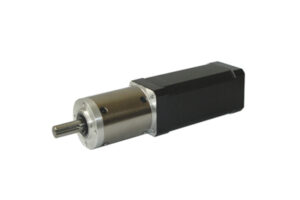

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor power : 40-60W optional
Application : texitle machine, vending machine
Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor power : 40-60W optional
Application : texitle machine, vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number of poles | Number of phase | Rated voltage | No-load speed | Rated speed | Rated torque | Rated power | Peak torque | Peak current |
| VDC | r/min | r/min | mN.m | W | mN.m | A | |||
| 42DMW81-2430 | 8 | 3 | 24 | 4000 | 3000 | 180 | 60 | 750 | 10 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 17 | 22 | 65 | 83 | 106 | 247 | |
| Number of gear trains | 2 | 2 | 3 | 3 | 3 | 4 | |

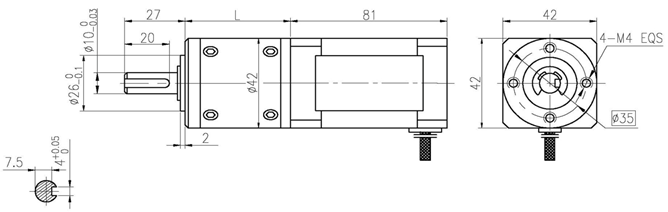

| Length(L) | mm | 48.0 | 48.0 | 58.3 | 58.3 | 58.3 | 68.6 |
| No-load speed | r/min | 235 | 182 | 62 | 48 | 38 | 16 |
| Rated speed | r/min | 176 | 136 | 46 | 36 | 28 | 12 |
| Rated torque | N.m | 3.4 | 4.5 | 12 | 15 | 19 | 20 |
| Peak torque | N.m | 25 | 25 | 50 | 50 | 50 | 60 |
