Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor Technical Data
| Type | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current |
| VDC | r/min | A | r/min | N.m | W | A | N.m | A | |
| 63ZY125-2450 | 24 | 5000 | 1.2 | 4000 | 0.38 | 159 | 9.5 | 1.5 | 32 |
Gear Motor Technical Data
63ZY125-2450 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | 220 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |

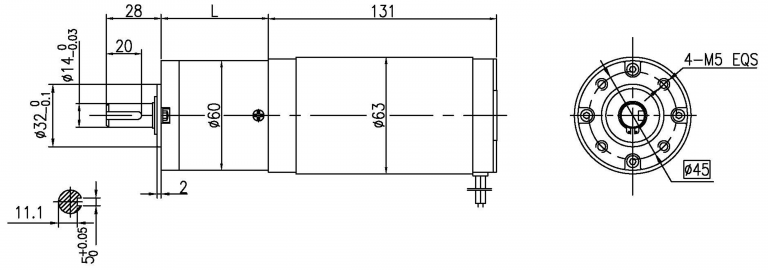

| Length(L) mm | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 | 80.6 |
| No-load speed r/min | 1389 | 1176 | 385 | 333 | 278 | 217 | 179 | 116 | 96 | 82 | 69 | 52 | 41 | 32 | 27 | 23 |
| Rated speed r/min | 1111 | 941 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 | 26 | 21 | 18 |
| Rated torque N.m | 1.2 | 1.5 | 4.0 | 4.6 | 5.5 | 7.1 | 8.6 | 12 | 14 | 17 | 20 | 27 | 34 | 38 | 45 | 45 |
| Max. permissible load in a short time N.m | 12 | 12 | 50 | 50 | 50 | 50 | 50 | 100 | 100 | 100 | 100 | 100 | 100 | 110 | 110 | 110 |
