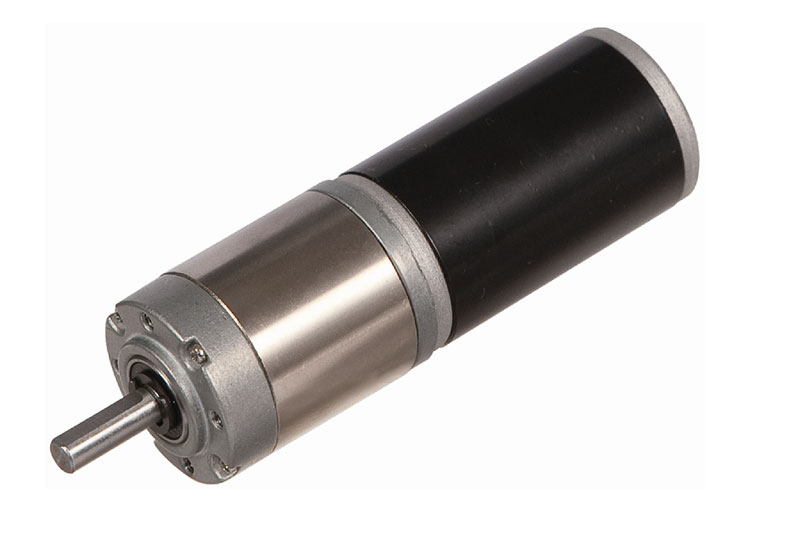

Name: 32JXE30K/31ZY51G PM DC Planetary Gear Motor
Brand: ZGC Motors
SKU: ZGC-32JXE30K-31ZY51G
Availability: InStock

Products

32JXE30K/31ZY51G PM DC Planetary Gear Motor

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.

32mm OD Planetary Gearbox

Permissible Load Range: 0.3 N·m to 3.0 N·m
Ring Gear Material: Metal
Motor: Permanent Magnet DC Motor

31ZY51G DC Motor – Advanced Configuration

Key Features: Ball bearing support, long-life brushes, equipping with inductance – capacitance anti jamming elements
Typical Use: Ideal for precision instrumentation and automation devices

31ZY51G DC motor is an advanced configuration, besides ball bearing and long lived brushes, equipping with inductance – capacitance anti jamming elements, It is suitable for instrumentation and automation devices.

TYPE
	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
	VDC	r/min	mA	r/min	m. Nm	W	mA	m. Nm	A
31ZY51G-2440	24	4000	70	3130	22	7.1	430	101.1	1.6
31ZY51G-2450	24	5000	75	3830	25	9.8	570	106.8	2.3

Gear Motor Technical Data

31ZY51G-2440 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	181	219	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
Length(L) mm	25.7	25.7	32.8	32.8	32.8	39.7	39.7	39.7	39.7	46.6	46.6	46.6	46.6
No-load speed r/min	1081	769	286	211	148	78	56	40	29	22	18	13	11
Rated speed r/min	846	602	224	165	116	61	44	31	23	17	14	10	9
Rated torque N.m	0.073	0.103	0.249	0.339	0.481	0.818	1.139	1.604	2.229	2.613	3.161	4.417	5.110
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9

31ZY51G-2450 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	181	219	254
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	25.7	25.7	32.8	32.8	32.8	39.7	39.7	39.7	39.7	46.6	46.6	46.6
No-load speed r/min	1351	962	357	263	185	98	70	50	36	28	23	20
Rated speed r/min	1035	737	274	202	142	75	54	38	28	21	17	15
Rated torque N.m	0.083	0.117	0.284	0.385	0.547	0.929	1.294	1.823	2.533	2.969	3.592	4.166
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9

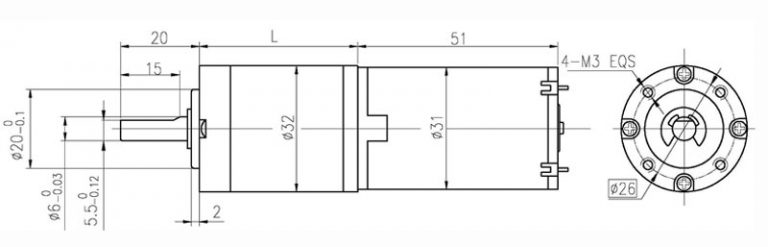

32JXE30K/31ZY51G Dimension Drawing & Specs
