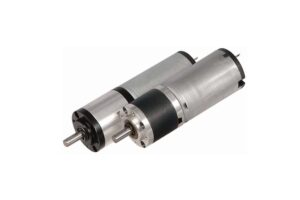

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor Technical Data
| TYPE | |||||||||
| Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current | |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 22ZY38B-1230 | 12 | 3000 | 70 | 2200 | 3 | 0.7 | 135 | 9.3 | 0.26 |
| 22ZY38B-1260 | 12 | 6000 | 100 | 5000 | 3 | 1.56 | 250 | 17 | 0.87 |
Gear Motor Technical Data
22ZY38B-1230 DC Motor
| Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |

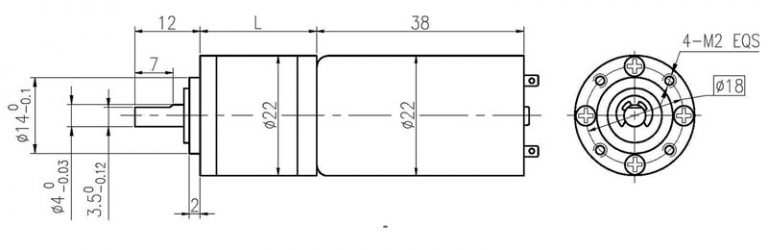

| Length(L) mm | 14.4 | 14.4 | 17.8 | 17.8 | 17.8 | 21.5 | 21.5 | 21.5 | 21.5 | 25.2 | 25.2 |
| No-load speed r/min | 750 | 632 | 188 | 158 | 136 | 47 | 39 | 33 | 28 | 12 | 10 |
| Rated speed r/min | 550 | 463 | 138 | 116 | 100 | 34 | 29 | 24 | 21 | 8.6 | 7.2 |
| Rated torque N.m | 0.011 | 0.013 | 0.039 | 0.046 | 0.053 | 0.14 | 0.17 | 0.20 | 0.23 | 0.3 | 0.3 |
| Max. permissible load in a short time N.m | 0.09 | 0.09 | 0.45 | 0.45 | 0.45 | 0.75 | 0.75 | 0.75 | 0.75 | 0.9 | 0.9 |
22ZY38B-1260 DC Motor
| Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 14.4 | 14.4 | 17.8 | 17.8 | 17.8 | 21.5 | 21.5 | 21.5 | 21.5 | 25.2 | 25.2 |
| No-load speed r/min | 1500 | 1263 | 375 | 316 | 273 | 94 | 79 | 67 | 56 | 23 | 20 |
| Rated speed r/min | 1250 | 1035 | 313 | 263 | 227 | 78 | 66 | 56 | 47 | 20 | 16 |
| Rated torque N.m | 0.011 | 0.013 | 0.039 | 0.046 | 0.053 | 0.14 | 0.17 | 0.20 | 0.23 | 0.3 | 0.3 |
| Max. permissible load in a short time N.m | 0.09 | 0.09 | 0.45 | 0.45 | 0.45 | 0.75 | 0.75 | 0.75 | 0.75 | 0.9 | 0.9 |
