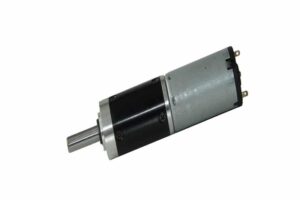

Compact planetary gear motor with high torque output for precision drive systems. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor Technical Data
| TYPE | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 22ZY38B-1245 | 12 | 4500 | 85 | 3340 | 3 | 1.0 | 180 | 13.2 | 0.48 |
| 22ZY38B-1260 | 12 | 6000 | 100 | 5000 | 3 | 1.56 | 250 | 17 | 0.87 |
| 22ZY38B-12100 | 12 | 10000 | 150 | 8700 | 3 | 2.7 | 500 | 28 | 2.3 |
Gear Motor Technical Data
22ZY38B-1245 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 24.4 | 24.4 | 31.0 | 31.0 | 31.0 | 37.4 | 37.4 | 37.4 | 37.4 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| No-load speed r/min | 1213 | 869 | 321 | 237 | 167 | 88 | 63 | 45 | 32 | 24 | 17 | 12 | 8.7 | 6.2 |
| Rated speed r/min | 900 | 645 | 239 | 176 | 124 | 65 | 47 | 33 | 24 | 18 | 13 | 9.1 | 6.5 | 4.6 |
| Rated torque N.m | 0.010 | 0.014 | 0.034 | 0.046 | 0.066 | 0.11 | 0.16 | 0.22 | 0.30 | 0.37 | 0.51 | 0.72 | 1 | 1 |
| Max. permissible load in a short timeN.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
22ZY38B-1260 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 24.4 | 24.4 | 31.0 | 31.0 | 31.0 | 37.4 | 37.4 | 37.4 | 37.4 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 | 23 | 16 | 12 | 8.3 |
| Rated speed r/min | 1348 | 965 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 26 | 19 | 14 | 9.7 | 6.9 |
| Rated torque N.m | 0.010 | 0.014 | 0.034 | 0.046 | 0.066 | 0.11 | 0.16 | 0.22 | 0.30 | 0.37 | 0.51 | 0.72 | 1 | 1 |
| Max. permissible load in a short timeN.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
22ZY38B-12100 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 24.4 | 24.4 | 31.0 | 31.0 | 31.0 | 37.4 | 37.4 | 37.4 | 37.4 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| No-load speed r/min | 2695 | 1931 | 714 | 526 | 370 | 196 | 141 | 100 | 72 | 53 | 38 | 27 | 19 | 14 |
| Rated speed r/min | 2480 | 1776 | 621 | 458 | 322 | 171 | 123 | 87 | 63 | 46 | 33 | 24 | 17 | 12 |
| Rated torque N.m | 0.010 | 0.014 | 0.034 | 0.046 | 0.066 | 0.11 | 0.16 | 0.22 | 0.30 | 0.37 | 0.51 | 0.72 | 1 | 1 |
| Max. permissible load in a short timeN.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
