Name: NSP-SERVO-DC-01 Series Low-Voltage DC Servo Drives, Compact, High-Performance
Brand: ZGC Motors

High-performance servo motor for precision automation and robotics. Get a free quote from ZGC Motors, a trusted servo motor manufacturer.

Work Voltage: 24V-60VDC
Output Current: peak current 1A-5A
Rated Speed: 3000rpm
Maximum Speed: 5000rpm
Receiving Frequency Range: 500KHZ
Control Modes: External pulse control mode, analog input, CAN bus, RS485 bus, RS232 communication control, etc. Supports position, speed, and torque modes.
Protection Functions: Undervoltage, Overvoltage, Overload, Overcurrent, Excessive Position Deviation, Encoder Fault; Alarm Output.
Compatible Motors: 50W-100W low-voltage DC servo motors (24V-60V), Brushless DC Motors (BLDC) with encoder, or coreless motors.

1.Application Fields—NSP-SERVO-DC-01 Low-Voltage DC Servo Drives

Various electronic processing equipment, conveyor belt feeding devices, medical equipment, instrumentation, precision testing equipment, gate control, Cartesian robots, servo fixed-length positioning, garage barrier control, equipment loading/unloading devices, auxiliary motion devices, pick-and-place machinery, plotters, photo printers, home and office automation devices, etc.

2. Technical Specifications

Utilizes FOC (Field-Oriented Control) technology and SVPWM (Space Vector Pulse Width Modulation) algorithms. Parameters of the driver can be conveniently modified to adapt to motors of various specifications. It is equipped with a built-in electronic gear and graphical debugging software. Custom control functions available upon request.

Repetitive tracking error: 1 pulse

Speed control accuracy: 1rpm

Receiving frequency range: 500KHZ

Maximum speed support: 5000rpm

Minimum speed support: 1rpm

Positioning resolution: Incremental 1/10000, Absolute 1/137072

Maximum no-load acceleration: 200rpm/ms

Compatible motors: Adapts to 24V/36V/48V/60V low-voltage DC servo motors, Brushless DC Motors (BLDC) with encoder, or coreless motors.

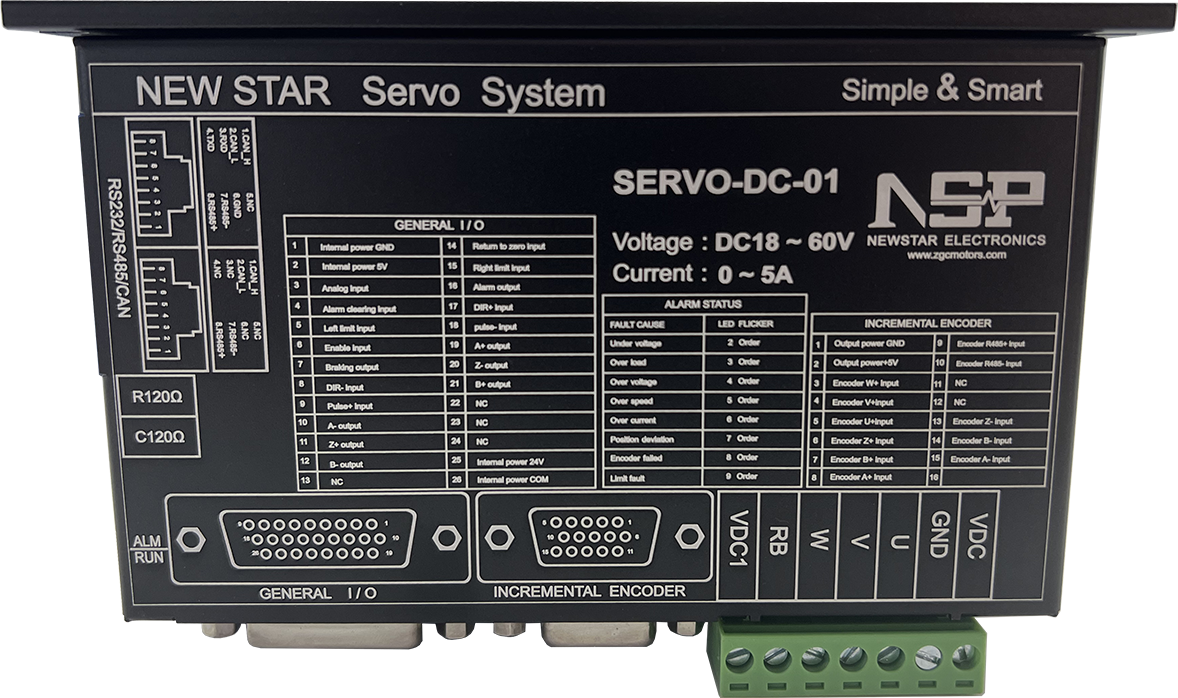

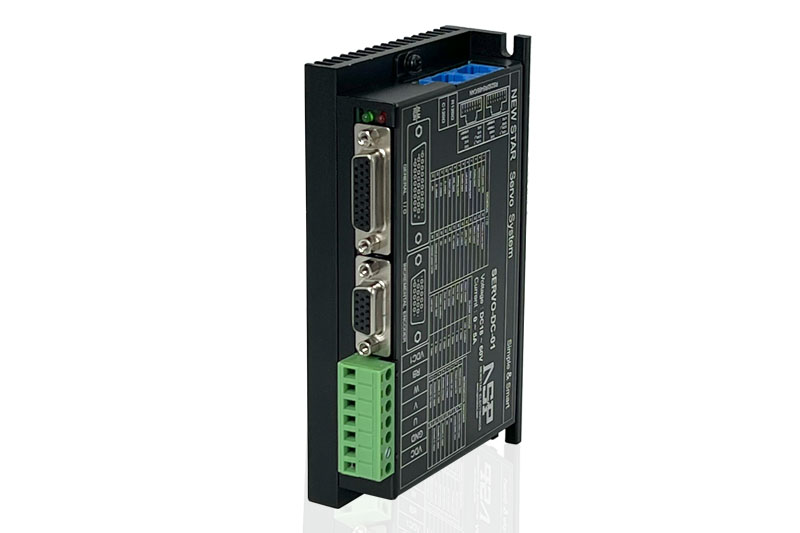

NSP-SERVO-DC-01 Series Low-Voltage DC Servo Drives, Compact, High-Performance product image

4. Hardware Functions

Function

Servo Drive Model

NSP-SERVO-DC-01

NSP-SERVO-DC-02

NSP-SERVO-DC-05

Potentiometer Input

0-5V

✔

Enable Input

Differential Level

✔

Pulse Input

Differential Level

✔

Direction

Forward Input

✔

Reverse Input

✔

Encoder Input

Incremental Differential Input

✔

Communication Absolute Value

✔

Encoder Output

Differential Output

✔

Clear Input

Active Low

✔

Zero Point Input

Active Low

✔

Brake Output

Active High

✔

Position Output

Active High

✔

Ready Output

Active High

✔

Fault Output

Active High

✔

Communication Interface

USB Interface

✔

RS232 Interface

✔

RS485 Interface

✔

CAN Interface

✔

Termination Resistor

✔

Panel Display

✔

Host Computer Debugging

✔

5. Software Functions

Function

Servo Drive Model

NSP-SERVO-DC-01

NSP-SERVO-DC-02

NSP-SERVO-DC-05

Position Mode – External Pulse Input

✔

Position Tuning Mode – PC Digital Input

✔

Position Control Mode – External Analog Input

✔

Speed Control Mode – External Analog Input

✔

Speed Tuning Mode – PC Digital Input

✔

Torque Control Mode – External Analog Input

✔

Torque Tuning Mode – PC Digital Input

✔

Jog Speed Mode

✔

Key Speed Mode

✔

Products

NSP-SERVO-DC-01 Series Low-Voltage DC Servo Drives, Compact, High-Performance

1.Application Fields—NSP-SERVO-DC-01 Low-Voltage DC Servo Drives

2. Technical Specifications

3. Hardware Parameters

4. Hardware Functions

5. Software Functions

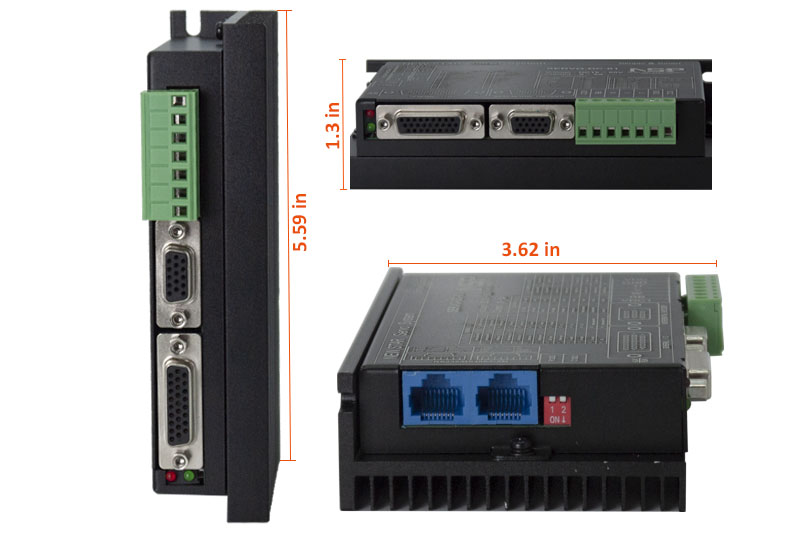

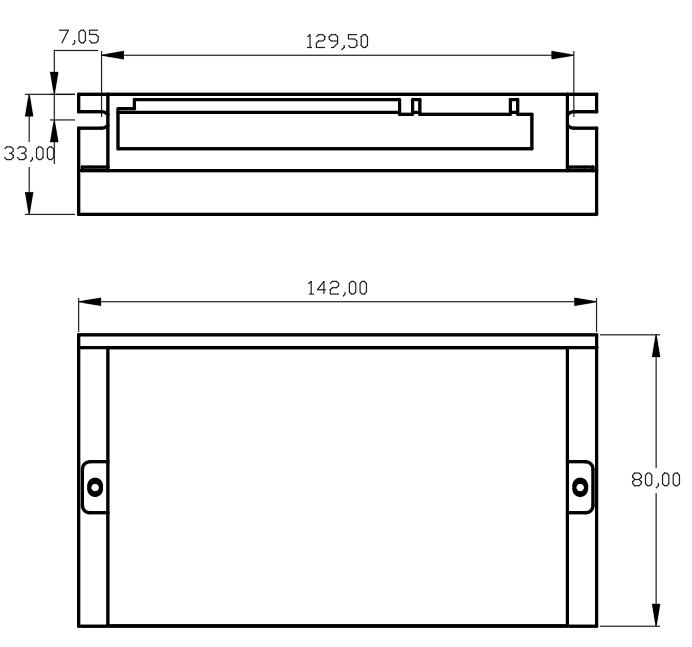

Installation dimensions (mm)
