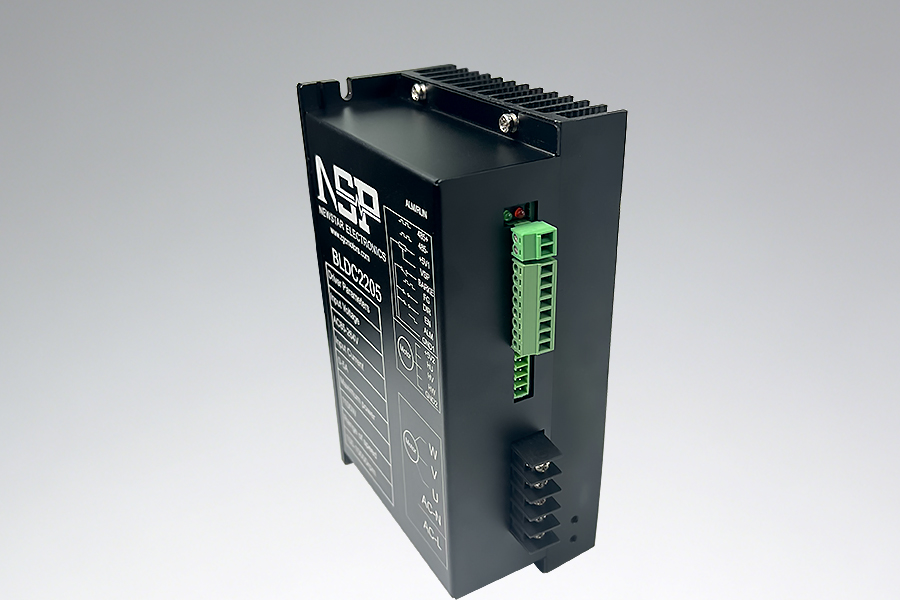

NSP-BLDC2205 AC Input BLDC Motor Drive, AC 220V, DC 310V, 10A, Fast Response Performance

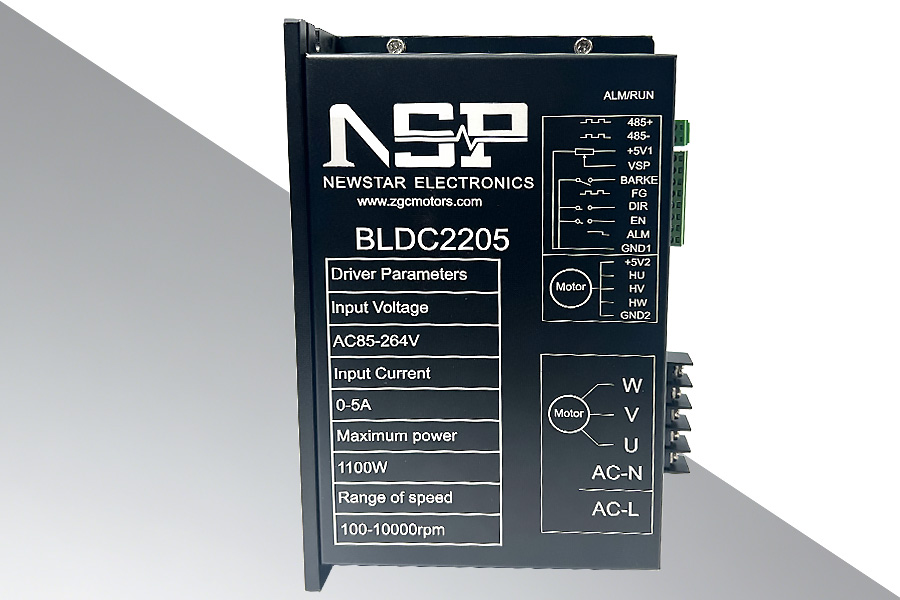

Product Overview

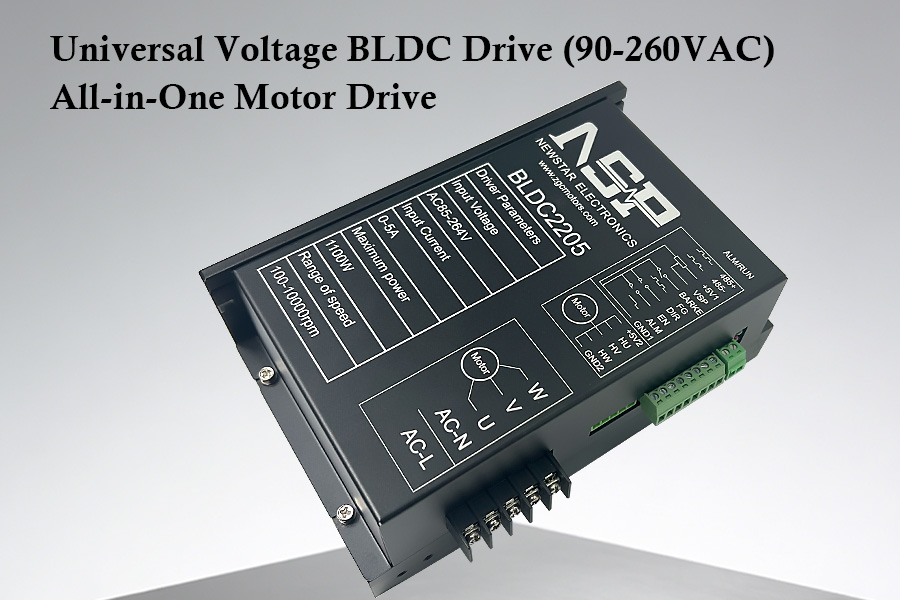

The NSP-BLDC2205 simplifies system design by integrating a wide-range AC/DC power supply into a robust brushless DC motor drive. Simply connect it to 90V-260V AC mains—eliminating the need for an external power supply. This all-in-one solution reduces component count, wiring, and panel space while offering global voltage compatibility. It is designed to drive brushless DC motors with power ratings up to 1500W, providing a compact and reliable solution for industrial equipment.

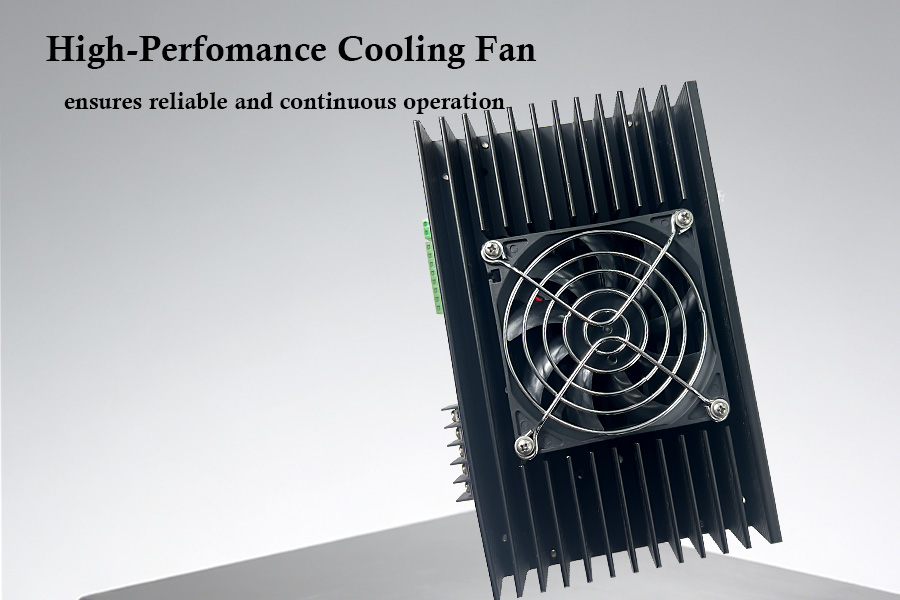

Key Features

• Dual closed-loop design for current and speed, featuring high torque at low speeds and smooth operation.
• High torque and high speed output, with a maximum speed of up to 10000rpm/min.
• Speed control method: 0–5V analog speed regulation.
• Equipped with signal input terminals including EN (Start/Stop), DIR (Direction), and Brake (Electromagnetic Brake).
• Can output speed signal, fault signal, etc.
• Protections include overcurrent, overvoltage, undervoltage, and motor stall.

Function Overview

1. Hall Sensor-based Open-Loop Speed Control
2. Hall Sensor-based Closed-Loop Speed Control
3. Hall Sensorless Open-Loop Speed Control
4. Hall Sensorless Closed-Loop Speed Control

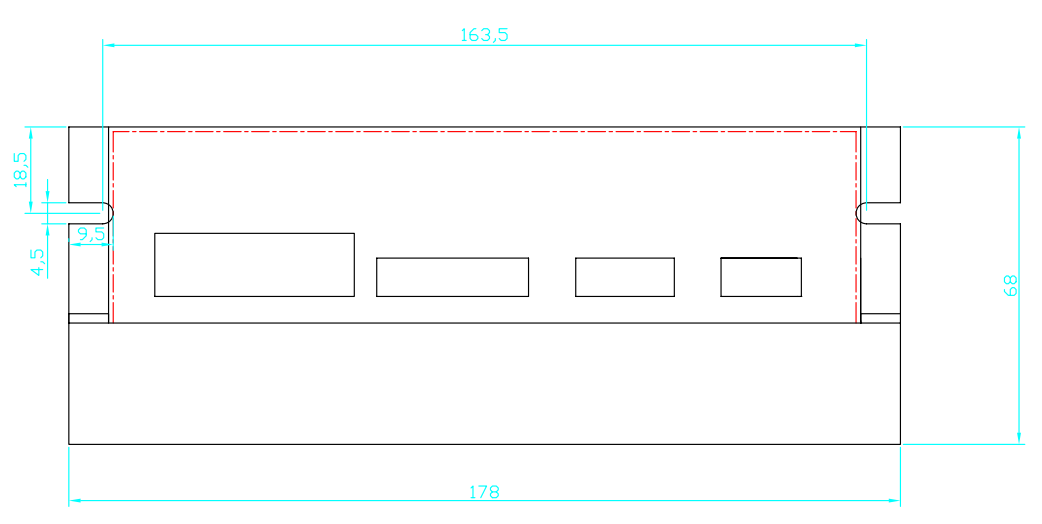

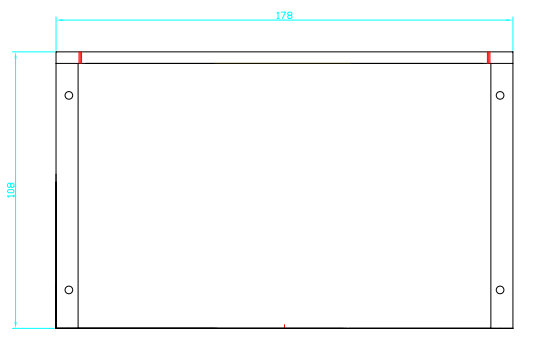

Environmental Parameters

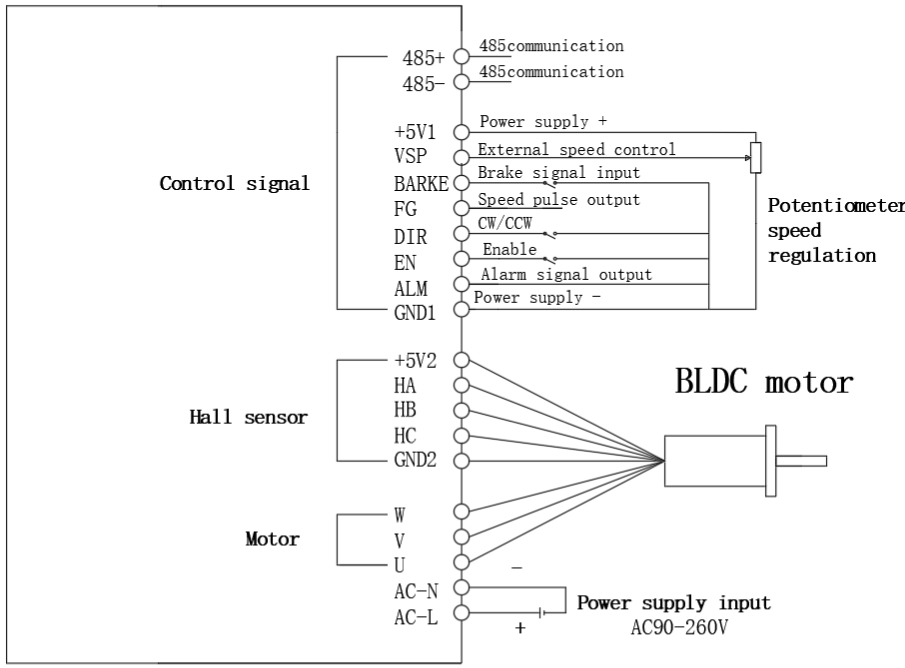

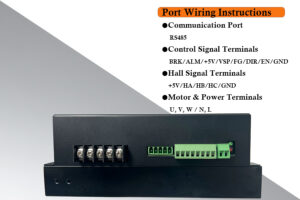

Wiring Diagram
