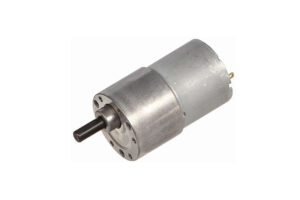

Compact planetary gear motor with high torque output for precision drive systems. (12V) Get a free quote from ZGC Motors, a trusted servo motor manufacturer.
Motor Technical Data
| TYPE | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 35ZY30-1230 | 12 | 3000 | 60 | 2400 | 5 | 1.2 | 280 | 20 | 0.56 |
| 35ZY30-1250 | 12 | 5000 | 80 | 4300 | 4 | 1.8 | 330 | 24 | 1.20 |
Gear Motor Technical Data
35ZY30-1230 DC Motor
| Reduction ratio | 10 | 18 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 750 | 1000 |
| Number of gear trains | 2 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |

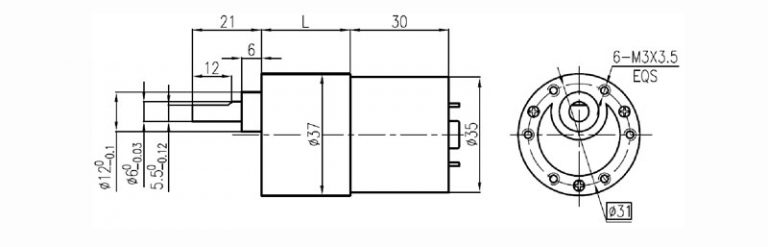

| Length(L) mm | 19 | 21.5 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 26.5 | 26.5 | 29 | 29 | 29 | 29 |
| No-load speed r/min | 300 | 167 | 100 | 60 | 40 | 30 | 20 | 15 | 12 | 10 | 7.5 | 6 | 4 | 3 |
| Rated speed r/min | 240 | 133 | 80 | 48 | 32 | 24 | 16 | 12 | 10 | 9 | 7 | 5 | 3.2 | 2.4 |
| Rated torque N.m | 0.04 | 0.07 | 1.11 | 0.16 | 0.24 | 0.33 | 0.44 | 0.59 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. permissible load in a short time N.m | 0.3 | 0.6 | 0.6 | 1.2 | 1.2 | 1.2 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Direction of rotation | CCW | CW | CW | CCW | CCW | CCW | CW | CW | CW | CW | CCW | CCW | CCW | CCW |
35ZY30-1250 DC Motor
| Reduction ratio | 10 | 18 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 750 | 1000 |
| Number of gear trains | 2 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Length(L) mm | 19 | 21.5 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 26.5 | 26.5 | 29 | 29 | 29 | 29 |
| No-load speed r/min | 500 | 278 | 167 | 100 | 67 | 50 | 33 | 25 | 20 | 16 | 12 | 10 | 6.6 | 5.0 |
| Rated speed r/min | 430 | 239 | 143 | 86 | 57 | 43 | 29 | 22 | 17 | 14 | 11.3 | 9.2 | 6.3 | 4.8 |
| Rated torque N.m | 0.04 | 0.05 | 0.10 | 0.16 | 0.22 | 0.29 | 0.44 | 0.58 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. permissible load in a short time N.m | 0.3 | 0.6 | 0.6 | 1.2 | 1.2 | 1.2 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Direction of rotation | CCW | CW | CW | CCW | CCW | CCW | CW | CW | CW | CW | CCW | CCW | CCW | CCW |
