high energy efficiency, low temperature rise, and a long operational life
Voltage: DC72V
Rated speed: 20000rpm
Rated power: 2000w
Rated torque: 0.96Nm
Duty: S1
high energy efficiency, low temperature rise, and a long operational life
Voltage: DC72V
Rated speed: 20000rpm
Rated power: 2000w
Rated torque: 0.96Nm
Duty: S1

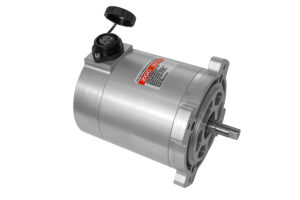

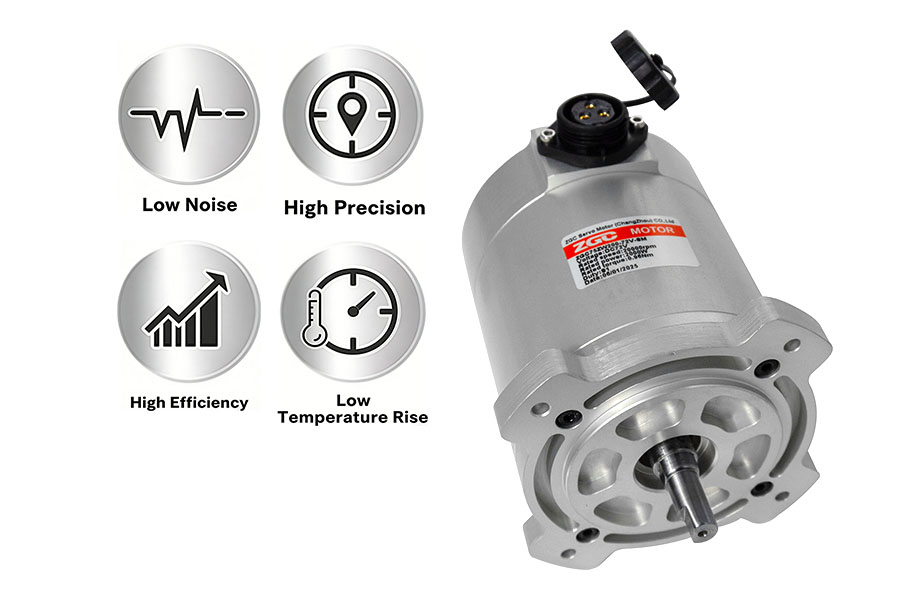

The ZGC71BM40 is a compact 24V Brushless DC (BLDC) motor, engineered to deliver high-efficiency power output in extremely limited spaces. Featuring high energy efficiency, low temperature rise, and a long operational life, this motor supports S1 continuous duty cycle operation, allowing it to run reliably at rated power without interruption. This high level of reliability makes it an ideal power solution for equipment requiring extended operation, such as lawn mowers and cleaning machines.
| Performance Data | |||||||
| Model | Units | ZGC75BM200-72V-RM | |||||
| Number of Ploes | / | 6 | |||||
| Rated Voltage | (V) | 72 | |||||
| Rated Power | (W) | 2000 | |||||
| Rated Torque | (N.m) | 1.08 | |||||
| Rated Speed | (RPM) | 18500±200 | |||||
| Maximum Speed | (RPM) | 21000±200 | |||||
| Rated Current | (A) | 27 | |||||
| Rotor Intertia | (kg*㎡) | 1.85×10-5 | |||||
| Back E.M.F | （Vs/Rad） | 0.032 | |||||
| Line resistance | （Ω） | 0.025 | |||||
| Line inductance | （mH） | 0.146 | |||||
| Insulation Class | （Class） | F | |||||
| Safety Class | IP(65) Excluding the output end | ||||||
| Options | Encoder Gearbox | ||||||
| Environment | （-20℃—60℃ ） | ||||||
| Application scenarios | Garden cleaning and blowing tools | ||||||
