high energy efficiency, low temperature rise, and a long operational life
Voltage: DC24V
Rated speed: 7000±200rpm
Rated power: 400w
Rated torque: 0.55NM
Efficiency: 90.5%
Duty: S1
high energy efficiency, low temperature rise, and a long operational life
Voltage: DC24V
Rated speed: 7000±200rpm
Rated power: 400w
Rated torque: 0.55NM
Efficiency: 90.5%
Duty: S1

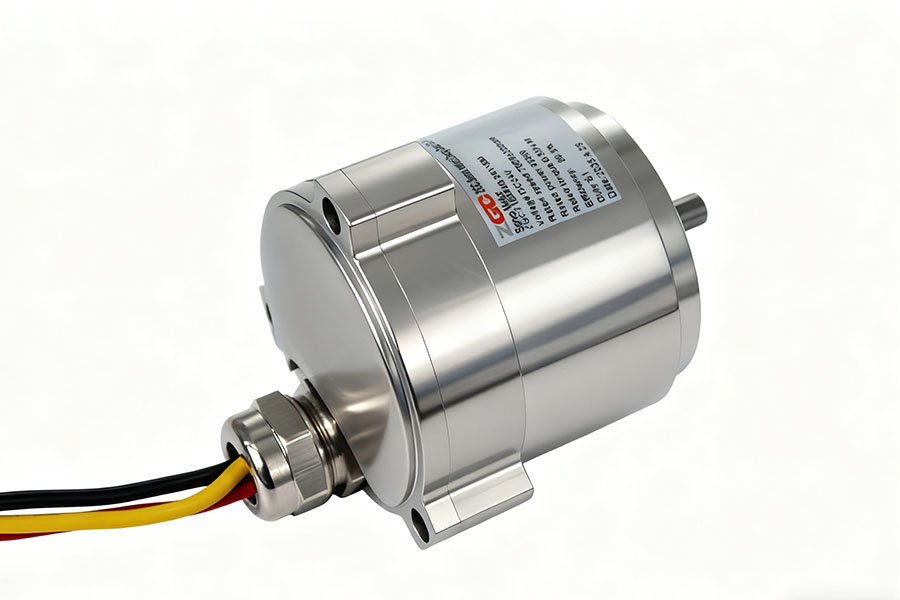

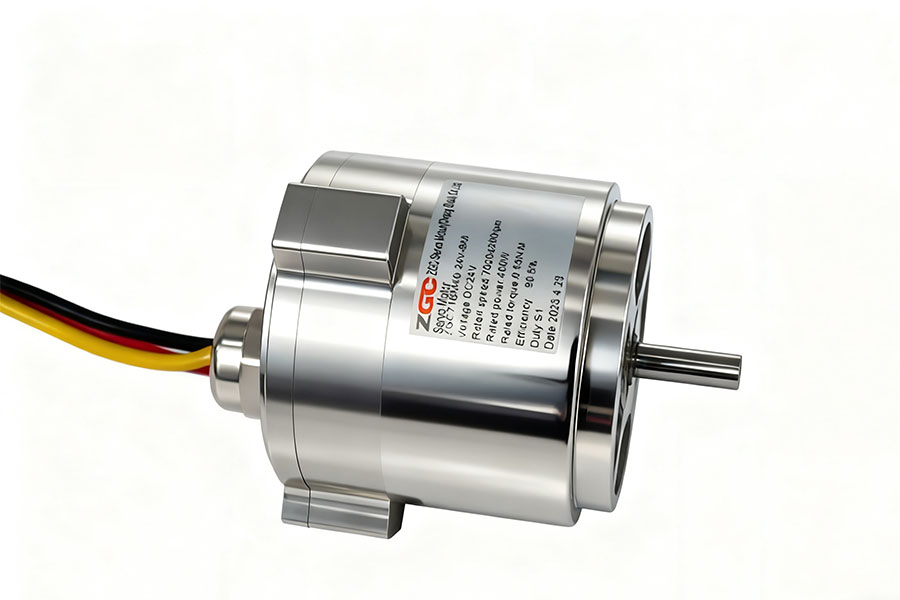

The ZGC71BM40 is a compact 24V Brushless DC (BLDC) motor, engineered to deliver high-efficiency power output in extremely limited spaces. Featuring high energy efficiency, low temperature rise, and a long operational life, this motor supports S1 continuous duty cycle operation, allowing it to run reliably at rated power without interruption. This high level of reliability makes it an ideal power solution for equipment requiring extended operation, such as lawn mowers and cleaning machines.
| Model | Units | ZGC71BM40-24V-RM | |||||
| Number of Ploes | / | 6 | |||||
| Rated Voltage | (V) | 24 | |||||
| Rated Power | (W) | 400 | |||||
| Rated Torque | (N.m) | 0.55 | |||||
| Rated Speed | (RPM) | 7000±200 | |||||
| Maximum Speed | (RPM) | 8400±200 | |||||
| Rated Current | (A) | 19 | |||||
| Rotor Intertia | (kg*㎡) | 2.3×10-5 | |||||
| Back E.M.F | （Vs/Rad） | 0.03 | |||||
| Line resistance | （Ω） | 0.055 | |||||
| Line inductance | （mH） | 0.1 | |||||
| Insulation Class | （Class） | F | |||||
| Safety Class | IP(65) Excluding the output end | ||||||
| Option | Encoder Gearbox | ||||||
| Environment | （-20℃—60℃ ） | ||||||
| Application scenarios | Garden cleaning and blowing tools | ||||||
