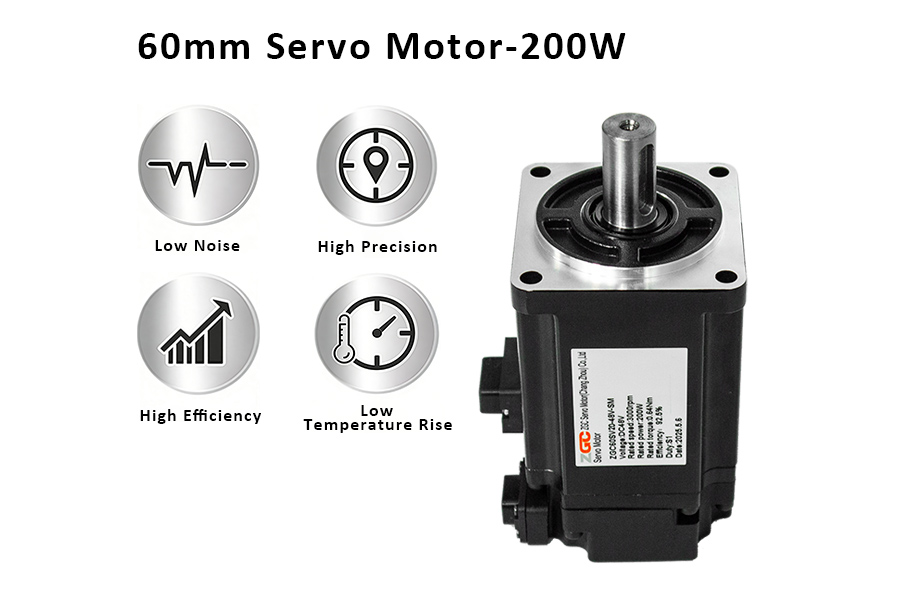

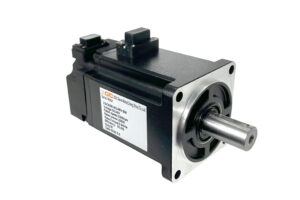

The ZGC60SV20 series servo motor is designed for automation scenarios requiring high dynamic response and space efficiency. Featuring a high-performance stator winding and a low inertia rotor, it delivers stable 200W output while achieving fast start-stop, precise positioning, and efficient heat dissipation. It is an ideal compact servo motor for robotic arm joints, precision handling equipment, and compact automation modules.

1.High Efficiency & Thermal Management

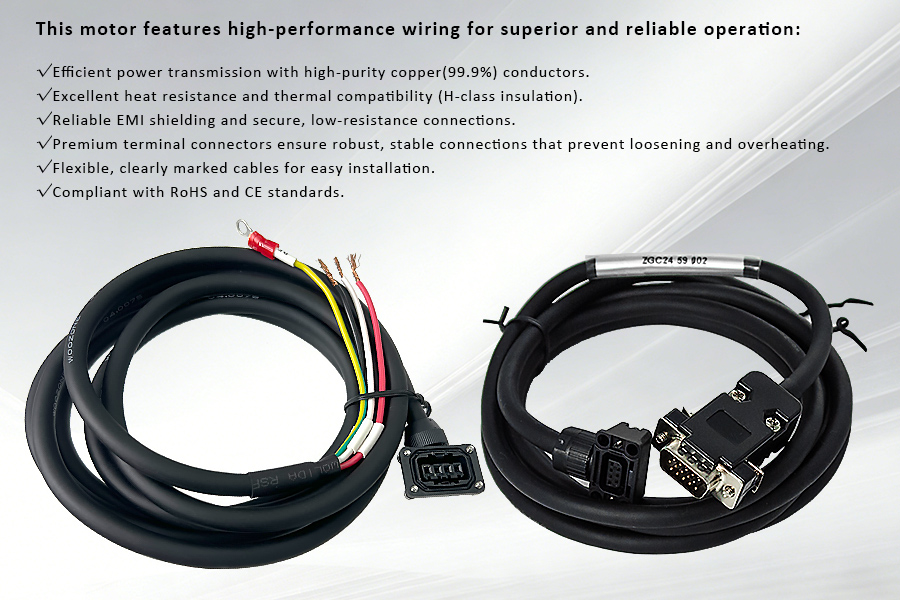

• Performance: Both the internal electromagnetic coils (windings) and external power cables use 99.9% pure copper conductors and a Class H insulation system.    This builds a high-conductivity, low-heat-loss pathway from end-to-end, ensuring excellent electrical efficiency and heat dissipation, perfectly matching the motor’s thermal characteristics.
• Advantage: Maintains a low temperature rise even under continuous duty (S1 operation), extending motor service life and making it ideal for long-term high-load operation.

2.Low Inertia for Fast Response

• Performance: Features an ultra-low rotor inertia of just 1.62×10⁻⁵ kg·m², combined with low resistance (0.09Ω for 24V model) and low inductance (0.19mH for 24V model) design for millisecond-level electromagnetic response.
• Advantage: Enhances system dynamic performance, suitable for high-cycle applications like robotic arms, high-speed indexing, and pick-and-place.

3.Wide Voltage Range & Speed Control

• Performance: Available in 24V, 48V, and 60V DC versions, supporting a wide speed range of 0–4500 RPM to adapt to various power systems and speed requirements.
• Advantage: Simplifies system integration and power supply selection, provides flexible speed-torque matching, and enhances application adaptability.

4.High Precision & Reliable Connection

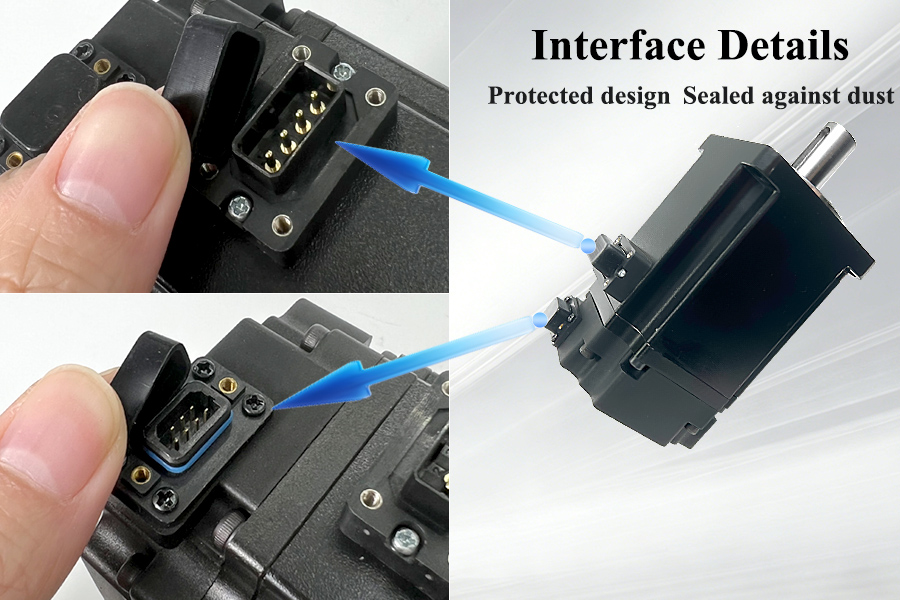

• Performance: Equipped with a standard absolute encoder for accurate position feedback.    High-quality terminal connectors ensure low contact resistance and secure, vibration-resistant connections.
• Advantage: Achieves high repeatable positioning accuracy and stable signal transmission, ideal for scenarios demanding consistency like precision assembly and inspection positioning.

5.Durability & Environmental Resistance

• Performance: Features IP65 protection rating (excluding output shaft), a wide operating temperature range of -20°C to 60°C, and a built-in EMI shielding design.
• Advantage: Ensures stable operation in harsh environments (humid, dusty, electromagnetically complex), reducing failure rates and maintenance costs.

6.Plug-and-Play & Compliance

• Performance: Supports modular expansion with gearboxes and brakes.    Features flexible, clearly marked cables for easy installation.    Certified with CE and RoHS.
• Advantage: Provides a plug-and-play servo solution, meets international market access requirements, and shortens time-to-market.

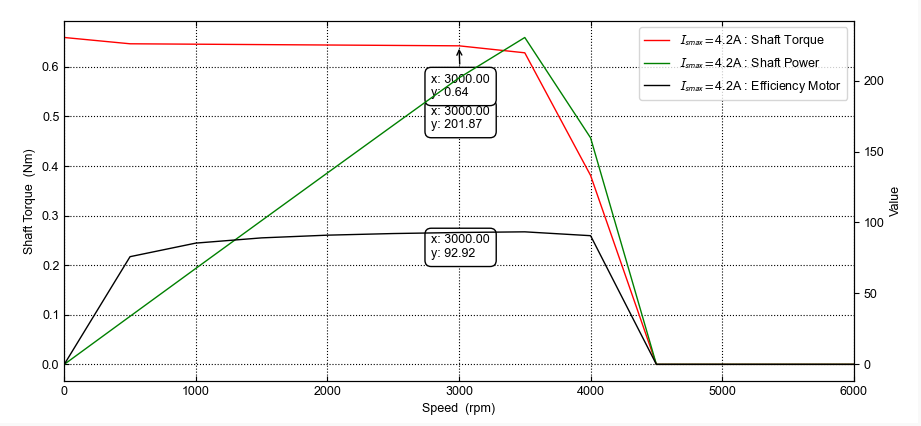

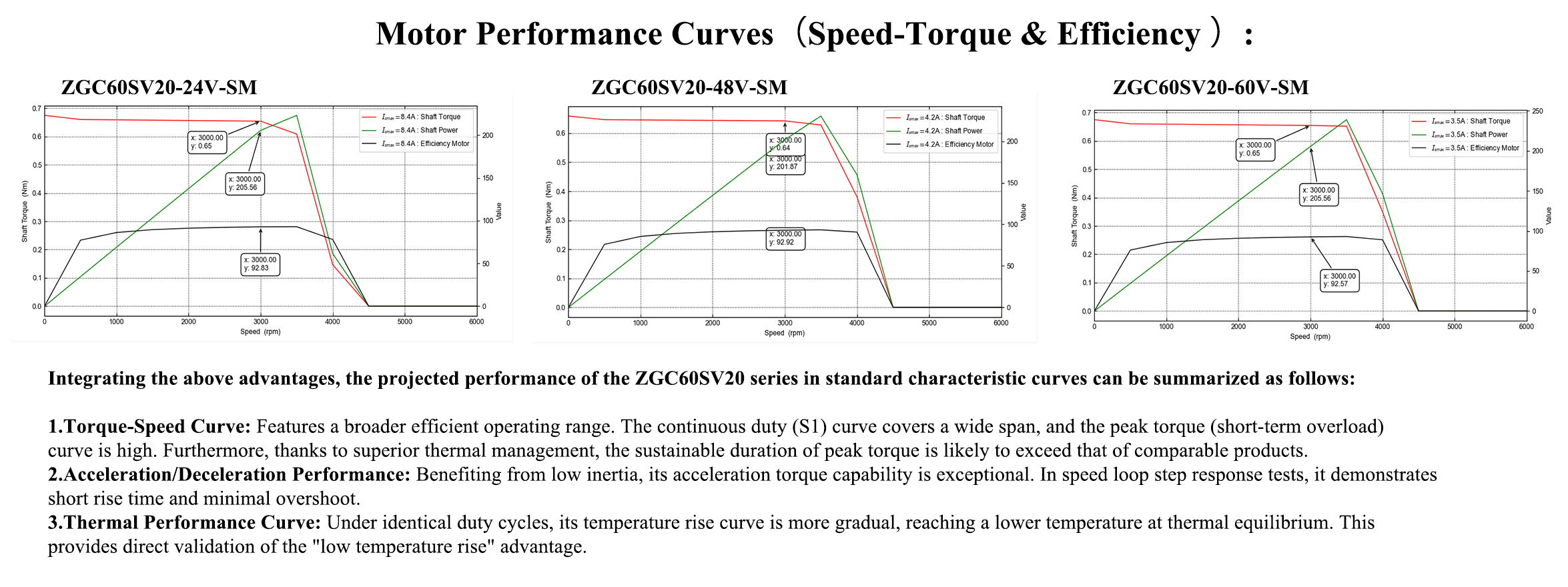

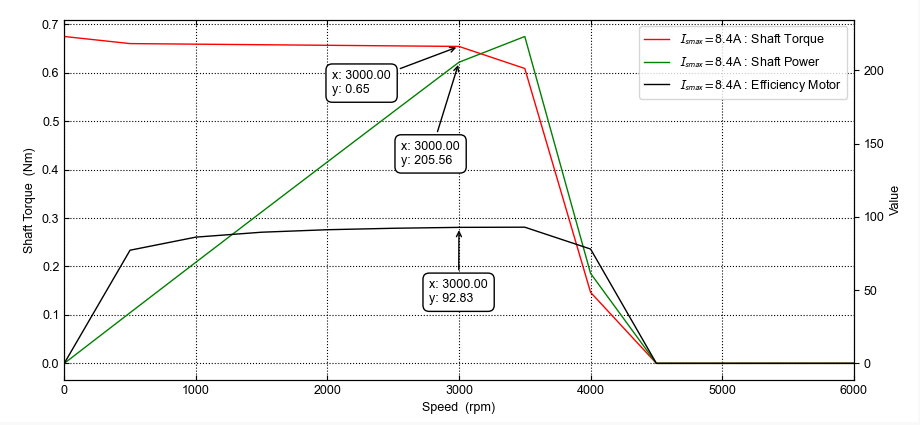

7.Performance Data
