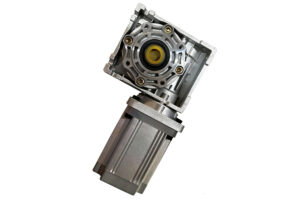

80DWM+RV040/050 Series BLDC Worm Geared Motor, High Torque, Low Speed, Self-Locking, Compact & Reliable

24V Brushless DC Motor + RV040/RV050 Worm Gear Reducer

  • Motor Voltage: 24V
  • Motor Rated speed: 3000rpm
  • Motor Rated torque: 0.6-2.4Nm
  • Motor Rated current: 9.5A/18.8A/32A/39A
  • Rated power: 188W/376W/628W/750W
Inquiry

This product is an integrated power unit combining a 24V brushless DC motor and RV040/RV050 worm gear reducers. With a motor rated speed of 3000rpm and a precision reducer with a reduction ratio ranging from 5:1 to 100:1, it achieves a wide range of output speeds from 30 to 600rpm and output torques from 0.66 to 84Nm. It is widely applied in industrial scenarios such as automation equipment, intelligent devices, and precision conveying systems.

Product Features

  1. Integrated Power System: The 24V brushless DC motor and RV series worm gear reducers are precisely matched. The motor rated power ranges from 188W to 750W, and the reducer’s maximum output torque reaches 84Nm, meeting the power demands of different loads.
  2. Precision Transmission with High Efficiency: The motor features excellent efficiency, and the reducer’s transmission efficiency exceeds 92%. It operates smoothly at low speeds without jamming. With an input speed of 3000rpm, it can stably output 30~600rpm after deceleration, ensuring high speed regulation accuracy.
  3. Industrial-Grade Reliability: The brushless motor design ensures low loss and a long service life.  With a robust housing offering a high waterproof rating and an operating temperature range of -10°C to 60°C, the entire system guarantees over 20,000 hours of trouble-free operation.
  4. Strong Installation Adaptability: The modular design supports horizontal/vertical multi-directional installation. It requires no complicated debugging and can be easily integrated into scenarios such as automated production lines, intelligent robots, and precision instruments.
  5. Customization Service: Motor power, reduction ratio, installation interface, etc., can be customized according to requirements to flexibly match personalized application scenarios.

Application Scenarios

  • Automated Production Lines: Ideal for sorting and conveying processes, its 24V low-voltage operation ensures safety.  The high torque handles heavy-load transmission, while low noise (≤55dB) maintains a suitable workshop environment
  • Intelligent Equipment: It delivers precise power for AGVs and small robotic arms. The 24V power supply and compact design enable flexible equipment operation with high energy efficiency.
  • Precision Instruments: In medical testing and laboratory automation devices, it ensures stable operation of the instruments with high transmission precision (backlash ≤0.05mm) and low current loss.



MOTOR PERFORMANCE PARAMETERS

Model Voltage(Vdc) Rated torque(Nm) Rated speed(rpm) Rated current(A) Rated power(W) Motor length L2(mm)
80DMW20 24 0.6 3000 9.5 188 85
80DMW40 24 1.2 3000 18.8 376 105
80DMW60 24 2 3000 32 628 115
80DMW80 24 2.4 3000 39 750 140



RV040 Performance parameters of worm gear and worm gearbox

Model Ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
80DMW20 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 2.64 3.87 5.10 7.29 9.24 11.10 12.42 15.36 18.30 20.52 24.48 28.20
80DMW40 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 5.28 7.74 10.20 14.58 18.48 22.20 24.84 30.72 36.60 41.04 45.00 45.00
80DMW60 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 8.80 12.90 17.00 24.30 30.80 37.00 41.40 45.00 45.00 45.00 45.00 45.00
80DMW80 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 10.56 15.48 20.40 29.16 36.96 44.40 45.00 45.00 45.00 45.00 45.00 45.00



RV050 Performance parameters of worm gear and worm gearbox

Model Ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
80DMW20 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 2.61 3.87 5.04 7.20 9.24 11.10 12.60 15.60 18.30 20.52 24.48 29.40
80DMW40 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 5.22 7.74 10.08 14.40 18.48 22.20 25.20 31.20 36.60 41.04 48.96 58.80
80DMW60 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 8.70 12.90 16.80 24.00 30.80 37.00 42.00 52.00 61.00 68.40 81.60 84.00
80DMW80 Output speed 600 400 300 200 150 120 100 75 60 50 38 30
Output torque 10.44 15.48 20.16 28.80 36.96 44.40 50.40 62.40 73.20 82.08 84.00 84.00



80DWM-RV040/050 Dimension Drawing & Specs
