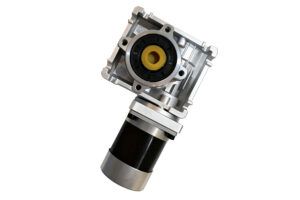

57DWM+RV030/040 BLDC Worm Geared Motor | Precision Transmission, High Efficiency & Energy Saving, An Industrial-Grade Reliable Choice

  • Motor Voltage: 24V
  • Motor Rated speed: 4000rpm
  • Motor Rated torque: 0.15-0.56Nm
  • Motor Rated current: 3.4A/6.78A/10A/12.5A
  • Motor Rated power: 63W/125W/188W/235W
Inquiry

Product Introduction

The 57DWM+RV030040 Brushless DC Worm Gear Reducer is an integrated power unit that combines the 57DWM brushless DC motor with the RV030/040 worm gear reducer. It is widely applied in automation equipment, intelligent equipment, precision conveying systems, and precision instrumentation industries, providing stable and reliable power support for core operational links.

Product Feature:

  1.    Precision integrated design, complete specification range; covering multiple reduction ratios (1:5~1:100) to match diverse speed and torque demands.
  2.     Compact size + lightweight body, high-strength structure; easy to install in limited space with stable load-bearing performance.
  3.     Ultra-low operating noise, smooth operation, and efficient heat dissipation; adapting to long-term continuous operation scenarios.
  4.     Low temperature rise, 20,000-hour long service life, lower maintenance cost; industrial-grade quality ensures trouble-free operation in harsh environments.
  5.     Supports customized adaptation; can be tailored in terms of voltage, protection level (optional IP65), and installation mode to meet diverse scenario needs.

MOTOR PERFORMANCE PARAMETERS

Model Voltage(Vdc) Rated torque(Nm) Rated speed(rpm) Rated current(A) Rated power(W) Motor length L2(mm)
57DMW20H 24 0.15 4000 3.4 63 54
57DMW40H 24 0.3 4000 6.78 125 74
57DMW60H 24 0.45 4000 10 188 94
57DMW80H 24 0.56 4000 12.5 235 114



RV030 Performance parameters of worm gear and worm gearbox

Model Ratio 5 7.5 10 15 20 25 30 40 50 60 80
57DMW20H Output speed 800 533 400 267 200 160 133 100 80 67 50
Output torque 0.65 0.95 1.22 1.71 2.16 2.51 2.88 3.48 4.05 4.50 5.28
57DMW40H Output speed 800 533 400 267 200 160 133 100 80 67 50
Output torque 1.29 1.89 2.43 3.42 4.32 5.03 5.76 6.96 8.10 9.00 10.56
57DMW60H Output speed 800 533 400 267 200 160 133 100 80 67 50
Output torque 1.94 2.84 3.65 5.13 6.48 7.54 8.64 10.44 12.15 13.5 15.84
57DMW80H Output speed 800 533 400 267 200 160 133 100 80 67 50
Output torque 2.41 3.53 4.54 6.38 8.06 9.38 10.75 12.99 15.12 16.80 19.71



RV040 Performance parameters of worm gear and worm gearbox

Model Ratio 5 7.5 10 15 20 25 30 40 50 60 80 100
570MW20H Output speed 800 533 400 267 200 160 133 100 80 67 50 40
Output torque 0.66 0.97 1.28 1.82 2.31 2.78 3.11 3.84 4.58 5.13 6.12 7.05
570MW40H Output speed 800 533 400 267 200 160 133 100 80 67 50 40
Output torque 1.32 1.94 2.55 3.65 4.62 5.55 6.21 7.68 9.15 10.26 12.24 14.1
57DMW60H Output speed 800 533 400 267 200 160 133 100 80 67 50 40
Output torque 1.98 2.90 3.83 5.47 6.93 8.33 9.32 11.52 13.73 15.39 18.36 21.15
570MW80H Output speed 800 533 400 267 200 160 133 100 80 67 50 40
Output torque 2.46 3.61 4.76 6.80 8.62 10.36 11.59 14.34 17.08 19.15 22.85 26.32

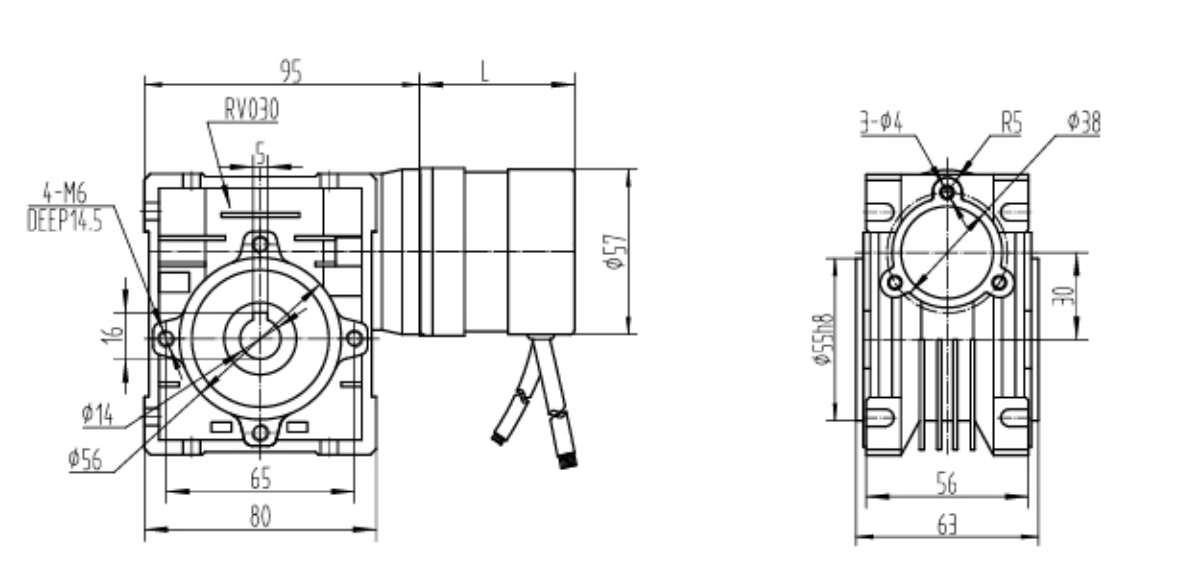

57DMW-RV030/040 Dimension Drawing & Specs
