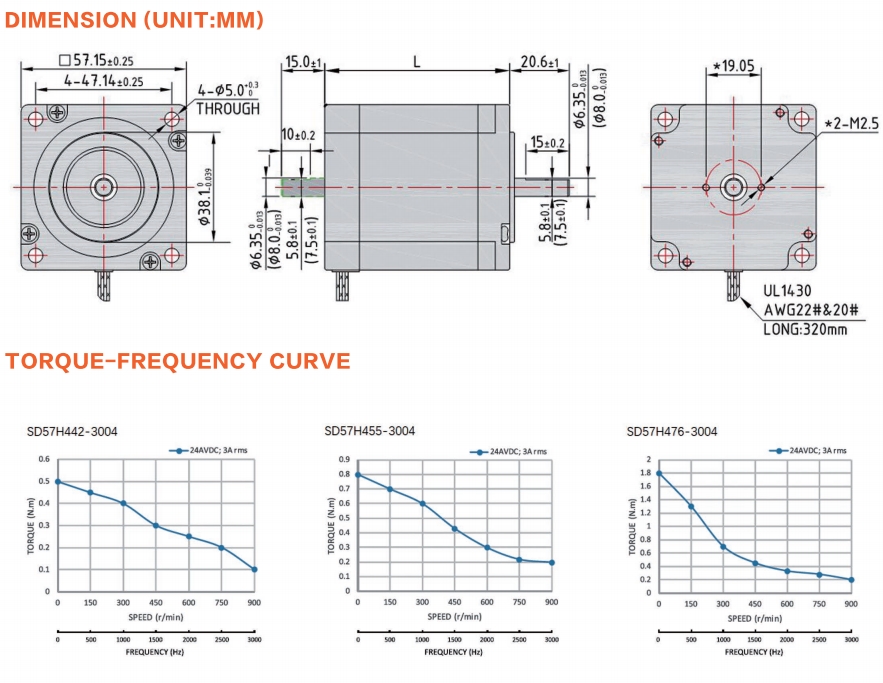

Motor Specifications

Engineered for Demanding Industrial Precision

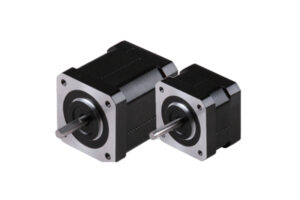

This NEMA 23 high-precision stepper motor is designed for applications where both power and accuracy are non-negotiable. Combining an exceptional 0.9° step angle with a robust 0.8-3.2 Nm torque output in a 57mm frame, it delivers the forceful and flawless motion control required for advanced automation tasks.

Core Advantages

• Unmatched Accuracy & Smoothness:The 0.9° step angle enables ultra-fine positioning, eliminating visible steps and ensuring exceptionally smooth operation in high-resolution printing, precise textile guiding, and secure ATM currency handling.
• Power for Demanding Loads:With a peak torque of 3.2 Nm, this motor confidently drives heavier mechanisms, larger printers, and more robust industrial textile equipment that smaller motors cannot support.
• Built for Continuous Duty:The bipolar design and NEMA 23 construction ensure long-term reliability and consistent performance in 24/7 operational environments like banking, manufacturing, and commercial printing.
