NEMA 14 1.8° Stepper Motor (35mm), 2-Phase Bipolar

Precise Micro-Torque: Delivers 0.1-0.4 Nm of controlled force for delicate and lightweight motion control.
Compact & Efficient Design: Built to the NEMA 14 standard (35mm), optimized for space-constrained applications.
Accurate Stepping: 1.8° step angle ensures smooth operation and precise repeatable positioning.

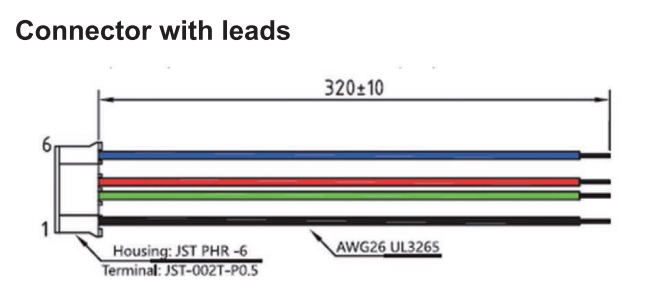

Reliable Connectivity Wiring: The leads allow for direct termination to your driver or control system, enabling a customized and secure installation.
Versatile Application: Monitoring equipment, textile equipment, printing machine

Motor Specifications

Model	Current	Resistance	Inductance	Holding torque		Inertia	Length	Weight
Model	A	Ω±10%	mH±20%	N.m	OZ.in	g/cm²	mm Max	Kg	Lbs
SD35H226-1004	1	3.1	2.2	0.07	9.91	12	26	0.15	0.33
SD35H226-1504	1.5	1.4	0.9	0.07	9.91	12	26	0.15	0.33
SD35H236-1004	1	4.6	5	0.18	25.49	20	36.5	0.21	0.46
SD35H236-1504	1.5	2.1	2.1	0.18	25.49	20	36.5	0.21	0.46
SD35H253-1504	1.5	3.25	4.1	0.31	43.9	35	53	0.24	0.53
SD35H253-2004	2	1.65	2.5	0.31	43.9	35	53	0.24	0.53

This NEMA 14 stepper motor is engineered for precision equipment where space and weight are at a premium. With its 0.1-0.4 Nm micro-torque output, 1.8° step angle, and compact 35mm frame, it is the ideal drive for miniature components.

Core Advantages

Controlled Micro-Torque Output: Perfectly matched for lightweight load requirements, it provides the right amount of power for monitoring pan-tilts, textile guiders, and printer paper feeds, ensuring smooth motion and rapid response.
Superior Space Efficiency: The NEMA 14 standard and compact 35mm body allow for easy integration into high-density equipment layouts, making it a cornerstone of miniaturized design.
Easy & Reliable Connectivity: The leads allow for direct termination to your driver or control system, enabling a customized and secure installation.
