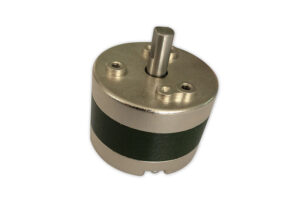

The compact rotary solenoid is available in different versions with a rotation angle between 30° and 100°.

• Bistable Rotation Design:Rotates to either the left or right side by changing the direction of the electrical current. Without electrification, the holding power of the permanent magnet maintains the position, which ensures precise positioning and maximum durability.
• High Output and High Response Speed: Reciprocation is achieved by changing the direction of electrification without using a spring.This design enables the product to deliver high output and high response speed.
• Wide-Range Adjustable Angle: The operating angle can be set to any value within a wide range of 30° to 100°.
• Stable Operation with Low Noise: There is no movement along the axis, and the external stopper design helps to lower operating noise.    For products with a built-in stopper, the stopper material is examined to reduce noise and librations.
• Long Service Life: No mechanical moving part is used except a ball bearing, which enable the products to have long life.
• Compact Design:Can be easily integrated into space-constrained automated systems.
