一、Product Overview

The ZGC130SV200 series is a flagship servo drive solution developed for extreme heavy-duty load and high dynamic response requirements. Boasting a 2000W servo motor with 9.55N·m super strong torque output, combined with a specially designed high inertia servo motor rotor (1.2×10⁻³ kg·m²), this BLDC servo motor delivers unparalleled operational stability, anti-disturbance capability, and instantaneous overload potential when driving extra-large loads. Tailored for the core drive components of heavy industrial robots, large CNC turntables, heavy material handling equipment, and high-dynamic stamping machinery, it serves as the power cornerstone breaking the boundaries of traditional power density and stability.

二、Core Performance Advantages

1.Super Strong Torque & Power

• Performance: With a rated power of 2000W, it continuously outputs 9.55N·m powerful torque, and its instantaneous overload capacity far exceeds that of peers, providing abundant acceleration and continuous driving force for heavy-duty equipment.
• Advantage: Capable of directly driving extra-large robotic arms, heavy-duty rotating worktables, and large-inertia linear modules, it offers an “all-in-one” power solution to simplify system design—making it an ideal heavy duty servo motor for demanding industrial scenarios.

2.High Inertia Design, Delivering Extreme Stability & Anti-Disturbance

• Performance: The rotor inertia reaches up to 1.2×10⁻³ kg·m², and combined with optimized electromagnetic design, it can effectively absorb and suppress massive load fluctuations and external impacts.
• Advantage: In working conditions such as heavy-load cutting and high-speed handling of large workpieces, it maintains exceptional speed stability, significantly improving machining precision and operational smoothness.

3.Ultra-Low Loss & Efficient Thermal Management

• Performance: Adopts an ultra-low winding resistance of 0.03Ω (for 48V model) to minimize copper loss and heat generation at the source.     Equipped with H-class temperature-resistant cables and F-class insulation system, the heat dissipation efficiency is deeply optimized for the 2000W power platform.
• Advantage: Significantly enhanced energy efficiency ratio with excellent temperature rise control during continuous full-load operation (S1 duty cycle), ensuring long-term stable operation of the motor and reducing performance degradation or shutdown caused by overheating.

4.Fast Electrical Response & Precision Wide-Speed Control

• Performance: Optimized inductance design (0.4mH @48V) combined with ultra-low resistance ensures fast current response and torque establishment.     Supports wide-range speed regulation from 0 to 2500RPM, maintaining stable torque within the rated speed range.
• Advantage: Delivers enormous starting torque at low speeds while maintaining constant power output at high speeds, with rapid dynamic response to meet complex and variable process speed requirements—embodying the characteristics of a high power density motor.

5.All-Environment Protection & Industrial-Grade Durability

• Performance: Features IP65 servo motor protection class, resistant to dust and water splashes.Operates within a temperature range of -20℃ to 60℃, adapting to harsh industrial environments.Built-in overload and overheating protection.
• Advantage: Maintains high reliability in harsh workshop environments, reducing failure rates and maintenance costs to ensure long-term stable equipment output.

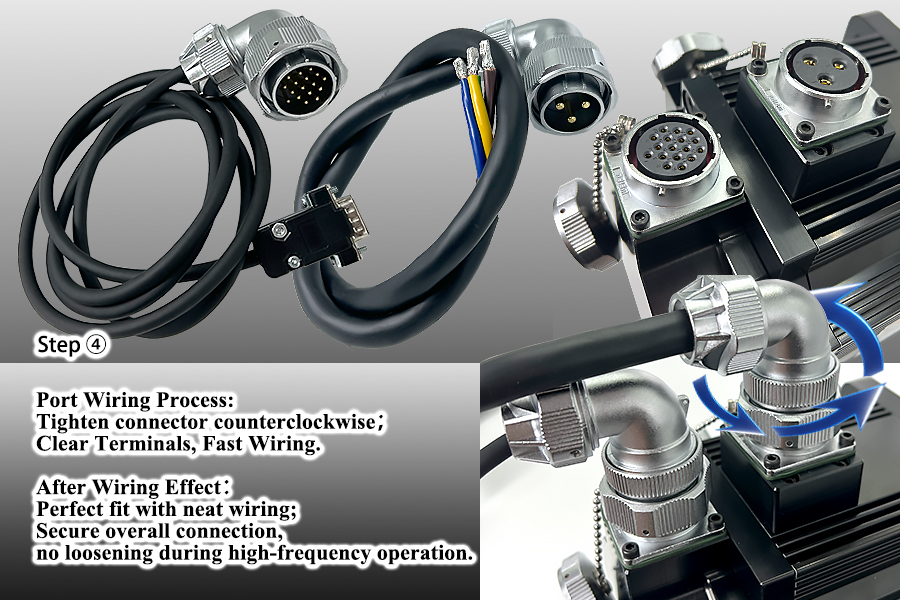

6.High-Precision Absolute Positioning & Reliable Connection

• Performance: Utilizes high-quality terminal connectors and high-flexibility servo-specific shielded cables, ensuring low contact resistance, secure vibration-resistant connections, and effective EMI shielding.
• Advantage: Prevents communication interruptions or control errors caused by poor contact or interference, laying the foundation for achieving high repeat positioning accuracy as an absolute encoder servo motor.

7.Modular Configuration & Global Compliance

• Performance: Offers modular options for gearboxes and brakes with standard mounting interfaces. As a CE and Rohs certified servo motor.
• Advantage: Facilitates system integration and function expansion, meets global market access requirements, and is suitable for matching with high-end projects.

三、Performance Curve

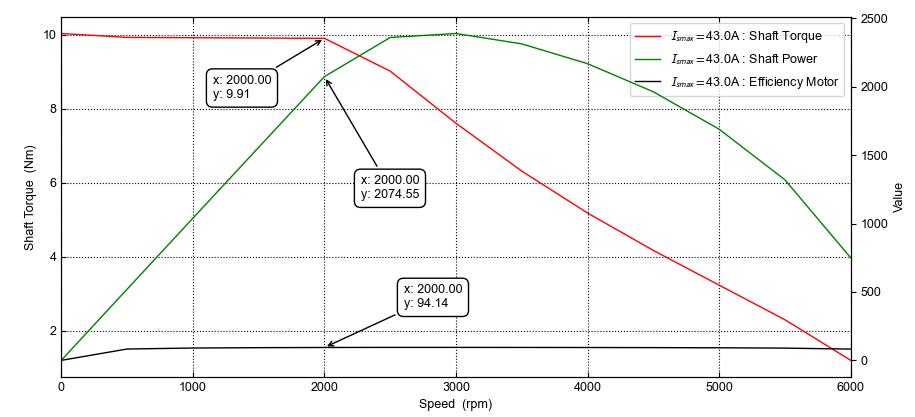

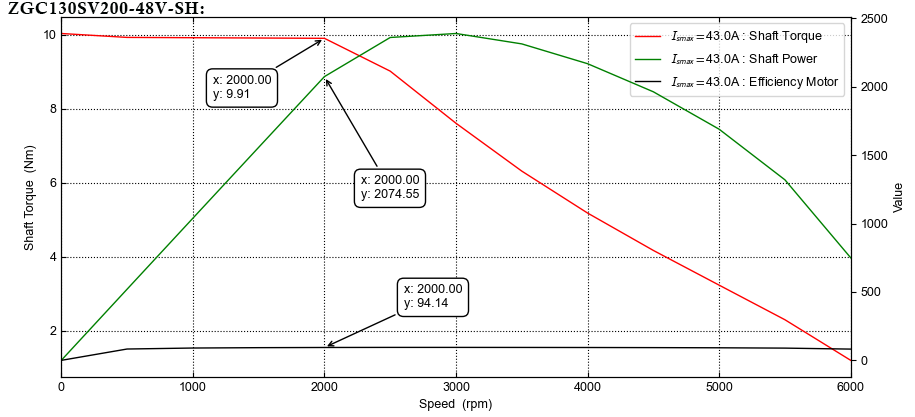

• ZGC130SV200-48V-SH: Demonstrates excellent stability of 9.55N·m super torque in the constant torque region of 0-2000RPM under 48V voltage, as well as constant power expansion capability up to 2500RPM, with a high and wide efficiency platform—an outstanding 48V servo motor for heavy-duty applications.

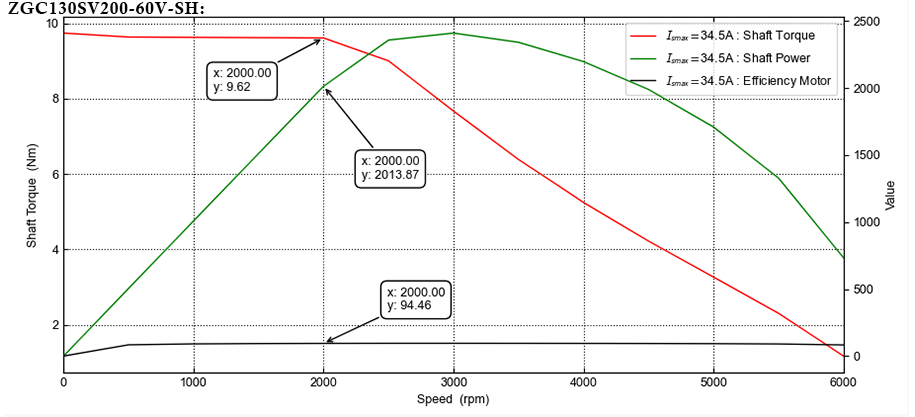

• ZGC130SV200-60V-SH: Operates at lower current under 60V platform with an optimized torque-speed curve, suitable for long-time continuous heavy-load operations and energy efficiency-sensitive applications as a 60V servo motor.

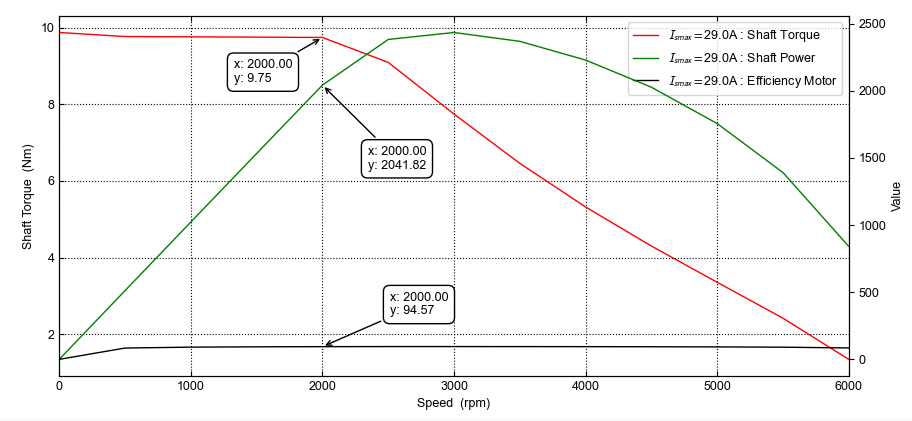

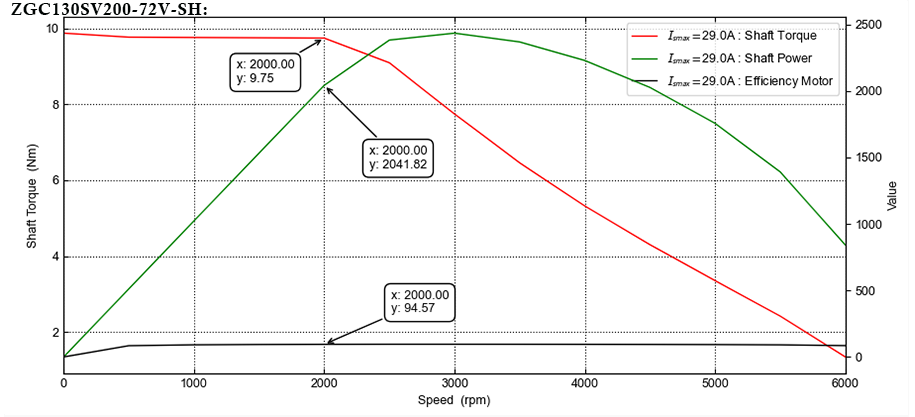

• ZGC130SV200-72V-SH: The 72V high-voltage version provides higher power density and dynamic response speed, specifically optimized for multi-axis synchronous heavy-duty systems with extreme requirements for acceleration and high-speed performance—an advanced 72V servo motor.

四、Performance Data

五、Key Industrial Applications

Ideal for industrial automation motor scenarios including industrial robot servo motor (robotic arm servo motor), CNC servo motor, heavy material handling equipment, and high-dynamic stamping machinery, the ZGC130SV200 series serves as a reliable servo drive system for diverse heavy-duty automation needs.
