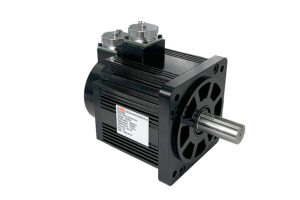

The ZGC130SV150 series is a high-power servo drive solution engineered for heavy-duty automation equipment and high-inertia loads. Boasting 1500W output power, 7.2N·m high torque, and an optimized high-inertia rotor, this servo motor delivers exceptional operational stability and anti-disturbance performance while ensuring robust heavy-load driving capability. It is ideal for core drive applications in industrial robot joints, large transfer equipment, heavy-duty turntables, and automated production lines.

Core Performance Advantages

1.High Torque & Power for Heavy-Duty Loads

• Performance: 1500W rated power, 7.2 N·m continuous torque, and peak torque to meet heavy-load starting and acceleration demands.
• Advantage: Delivers ample power for heavy-duty robotic arms and large rotary platforms; directly drives high-inertia loads, reduces transmission links, and boosts system rigidity and efficiency.

2.High-Inertia Design for Ultra-stable Operation

• Performance: 0.9×10⁻³ kg·m² rotor inertia effectively suppresses load fluctuations and external disturbances.
• Advantage: Excellent speed stability under heavy and variable load conditions, suitable for cutting, stamping, and large workpiece handling requiring high motion smoothness.

3.Superior Heat Dissipation & Temperature Control

• Performance: Class F insulation system paired with Class H heat-resistant cables (99.9% high-purity copper conductors)
• Advantage: Controls temperature rise during continuous heavy-load operation (S1 duty cycle), extends insulation lifespan, and enhances long-term reliability.

4.Precision Control Across Wide Medium-high Speed Range

• Performance: 2000RPM rated speed & 2500RPM max speed support wide-range speed regulation;low-resistance winding ensures excellent current response.
• Advantage: Balances low-speed high torque and high-speed operation with smooth speed adjustment, meeting complex process trajectory and multi-speed control needs.

5.Industrial-grade Durable Design with Full Protection

• Performance: IP65 rating for -20℃~60℃ wide-temperature operation; built-in overcurrent & overheat protection; standard EMI shielded cables.
• Advantage: Resists workshop dust, oil, moisture, and temperature variations;ensures stable operation in harsh industrial environments and reduces downtime risks.

6.High-precision Positioning & Servo-grade Cable

• Performance: Standard absolute encoder enables precise positioning control; servo-grade high-flexibility shielded cables (high-purity copper conductors) ensure efficient, low-loss power and signal transmission.
• Advantage: Maintains ultra-high repeat positioning accuracy and millisecond-level stable communication under heavy-load, vibration, and continuous bending conditions.Cables pass ≥5 million-cycle cable chain tests, with a lifespan far exceeding ordinary cables and secure connections.

7.Modular Expandability & Global Compliance

• Performance: Modular options (gearbox, brake) and standard mounting interfaces; full range complies with CE (including EMC) and RoHS directives.
• Advantage: Facilitates system integration and function expansion; meets global market access requirements for high-end project matching.

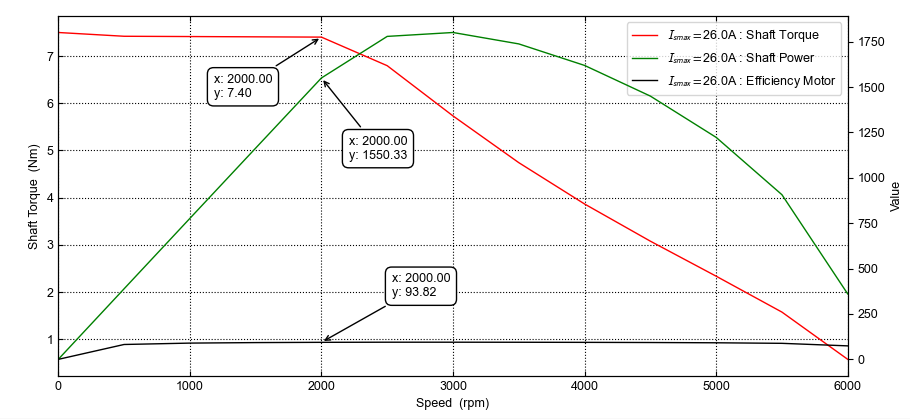

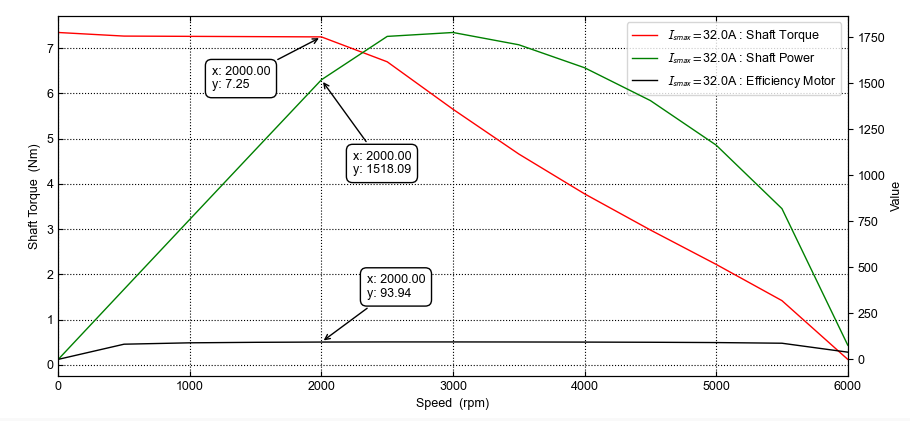

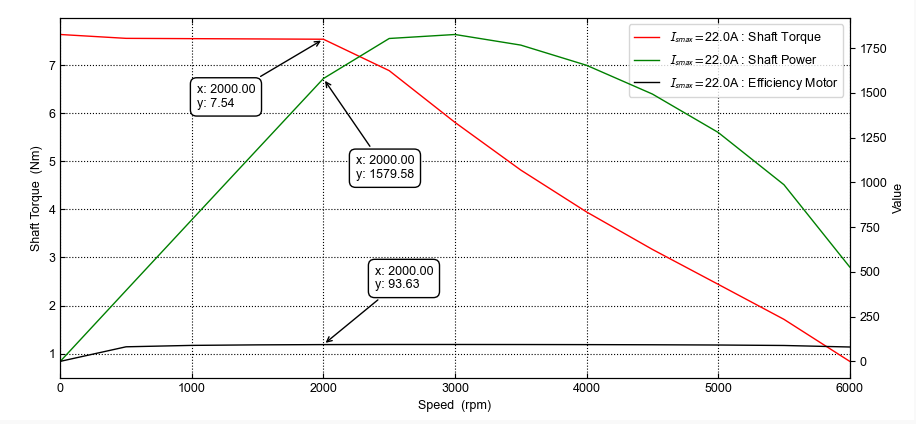

Performance Data
