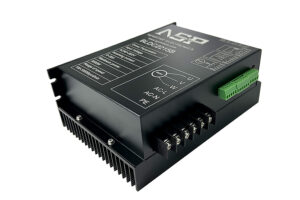

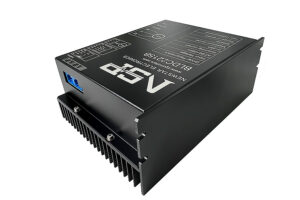

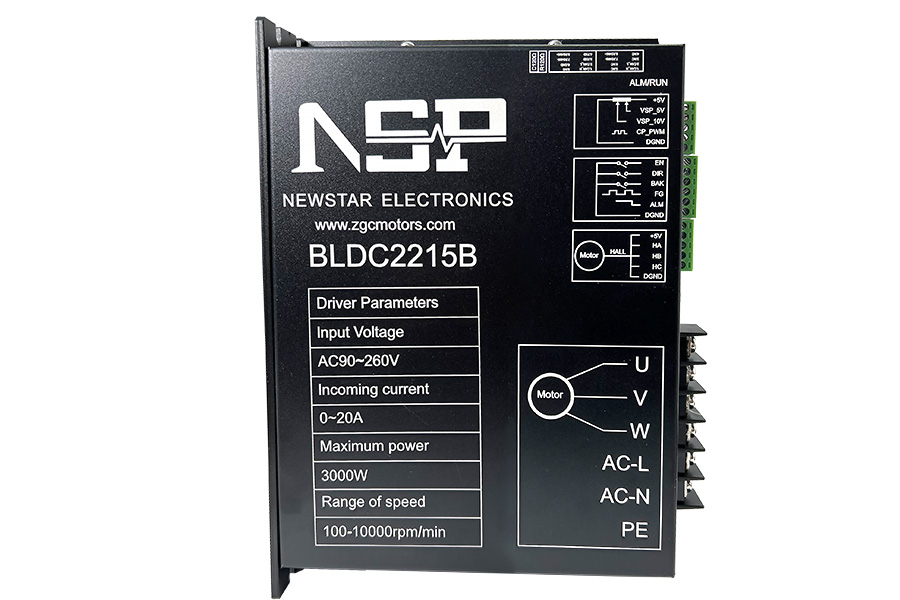

NSP-BLDC2215B 3000W AC Input BLDC Drive, Sine/Square Wave, 20A, RS485/CAN

  • Power Supply: AC 90V–260V
  • Rated Current: ≤ 20A (Depending on the matched motor and rated load)
  • Rated Power: Max. 3000W (Do not use with motors exceeding the drive’s power rating)
  • Insulation Resistance: ＞ 500 MΩ at room temperature
  • Insulation Strength: 0.5 kV for 1 minute at room temperature and atmospheric pressure
  • Communication Interfaces: RS232/RS485 /CAN Bus
Inquiry

Product Overview

It is our high-power, integrated brushless DC motor drive platform, combining direct AC line operation with full-featured intelligent control for heavy-duty industrial applications.
The NSP-BLDC2215B brushless DC (BLDC) motor drive is the latest high-tech product launched by our company, targeting the medium-power brushless motor drive field. This product adopts large-scale integrated circuits (LSIC) to replace the original hardware design, featuring higher anti-interference capability and fast response performance. It is suitable for driving any three-phase low-voltage BLDC motor (with or without Hall sensors) with a peak current of less than 20A and a power supply voltage ranging from AC 90V to 260V, and boasts the characteristic of low temperature during high-current operation. The product is applied in a series of electrical automation control fields such as knitting equipment, medical equipment, food packaging machinery, and power tools.

Main Features

  • Current-loop controller design, high torque at low speeds, smooth operation.
  • High torque and high speed output, the maximum speed is 10000rpm/min (Depending on the motor speed).
  • Speed control methods: Analog (0-5V), PWM(10Hz-300Hz).
  • Equipped with signal input terminals including EN (Start/Stop), DIR (Direction), and Brake (Electromagnetic Brake).
  • Protections include overcurrent, overvoltage, undervoltage, and motor stall.

Main Functions

  1. Square Wave Hall Sensor-based Open-Loop Speed Control
  2. Square Wave Hall Sensor-based Closed-Loop Speed Control
  3. Square Wave Hall Sensorless Open-Loop Speed Control
  4. Square Wave Hall Sensorless Closed-Loop Speed Control
  5. Sine Wave Hall Sensor-based Open-Loop Speed Control
  6. Sine Wave Hall Sensor-based Closed-Loop Speed Control
  7. Sine Wave Hall Sensorless Open-Loop Speed Control
  8. Sine Wave Hall Sensorless Closed-Loop Speed Control

Communication Interfaces

  • Supports RS232 Interface Communication
  • Supports RS485 Interface Communication
  • Supports CAN Bus Interface Communication

Environmental Parameters

Parameter Specification

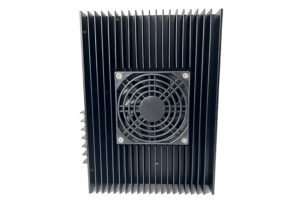

Cooling Method Natural air cooling (Forced air cooling is recommended)
 Environment Application Avoid dust, oil mist and corrosive gases
Temperature 0℃～+50℃
Humidity <80%RH, non-condensing, no frost
Vibration ﹤0.5G（4.9 m/s²）10Hz-60Hz (non-continuous operation)
Storage Temperature -20℃～+65℃
Dimensions 203 × 146.7 × 77.6 mm
Weight 1308.7g

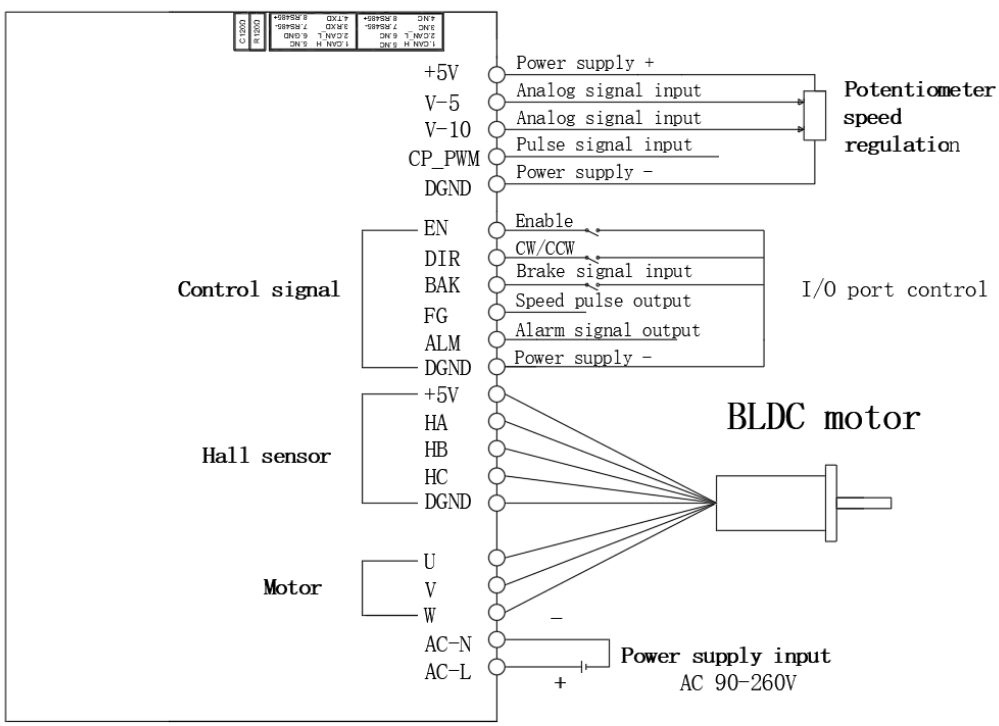

Wiring Diagram

Brushless Driver Function Parameter Table
Function Brushless Drive Model
Basic Series Standard Series Enhanced Series UL Certified Enhanced Series
Hardware Parameters NSP BLDC-4805 BLDC-4810 BLDC-4820 BLDC-4830 BLDC-2205 BLDC-4810A BLDC-4820A BLDC-4830A BLDC-2205A BLDC-2210A FOC-4810AS FOC- 4820AS FOC-4830AS FOC-2205AS FOC-2210AS BLDC-4810B BLDC-4820B BLDC-4830B BLDC-2205B BLDC-2210B BLDC-2215B
Input Voltage DC18-60V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
AC90-265V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Input Current DC1-5A ✔
DC-10A ✔ ✔ ✔ ✔
DC-20A ✔ ✔ ✔ ✔
DC-30A ✔ ✔ ✔ ✔
AC-05A ✔ ✔ ✔ ✔
AC-10A ✔ ✔ ✔
AC-15A ✔
Output Speed 5-10000 rpm ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Hardware Functions Potentiometer Input 0-5V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
0-10V ✔ ✔ ✔ ✔ ✔ ✔
Enable Input Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Direction Input Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Pulse Input Duty Cycle Input ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Input ✔ ✔ ✔ ✔ ✔ ✔
ABS Brake Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Speed Output Pulse Waveform ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Fault Output Active High ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Communication Interface TTL Interface ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
RS232 Interface ✔ ✔ ✔ ✔ ✔ ✔
RS485 Interface ✔ ✔ ✔ ✔ ✔ ✔
CAN Interface ✔ ✔ ✔ ✔ ✔ ✔
Termination Resistor ✔ ✔ ✔ ✔ ✔ ✔
Handheld Speed Controller ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Host Computer Speed Control ✔ ✔
Software Functions Square Wave Mode Square Wave Hall-based ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Hall Sensorless ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Open-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Closed-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Mode Sine Wave Hall-based ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Hall Sensorless ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Open-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Closed-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Certification CE Europe ✔ ✔ ✔ ✔ ✔ ✔
UL USA ✔ ✔ ✔ ✔ ✔ ✔

Unit:mm

NSP-BLDC2215B User Manual-V1.0.pdf
Download
NSP-BLDC2215B Functional Technical Specifications-V1.0.pdf
Download
Download
Download
Download
