NSP-FOC4810AS 500W Compact BLDC Drive with Square & Sine Wave Modes

  • Power supply: DC 18V to 60V.
  • Rated current: ≤ 15A (Depending on the matched motor and rated load).
  • Rated power: Up to 500W (Do not use with motors exceeding the drive’s power rating).
  • Communication Port: TTL=RS232
  • Insulation resistance: >500 MΩ at room temperature.
  • Insulation strength: 0.5 KV for 1 minute under normal temperature and pressure.

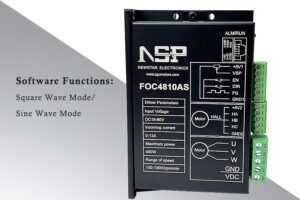

  • Dual Commutation Modes: Square Wave / Sine Wave
  • Built-in Overcurrent, Overvoltage & Motor Stall Protection.
Inquiry

Product Overview

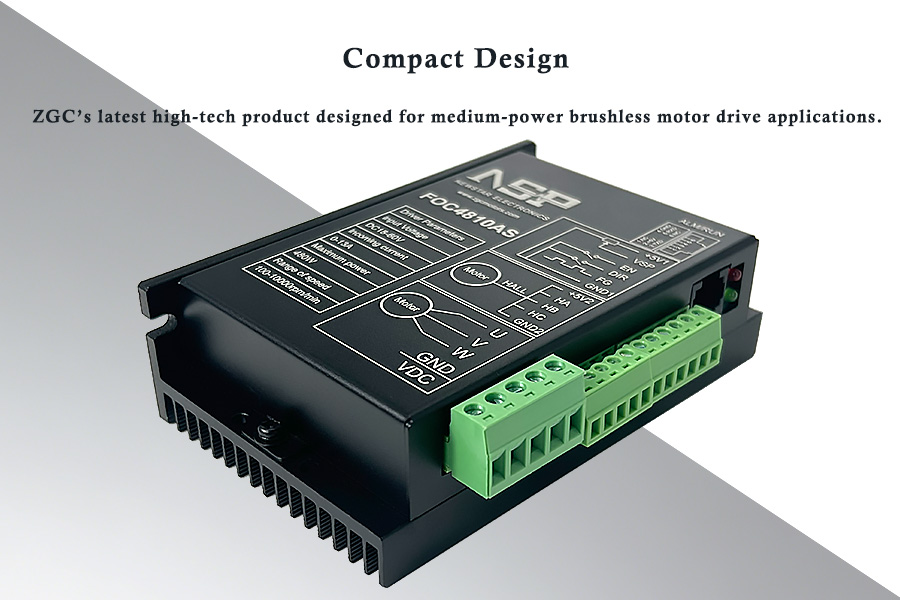

It is a compact and highly versatile brushless DC motor drive, uniquely offering both square wave and sine wave commutation modes in a single, space-saving package.

The NSP-FOC4810AS brushless DC (BLDC) motor drive is the latest high-tech product launched by our company, targeting the medium-power brushless motor drive field. This product adopts large-scale integrated circuits (LSIC) to replace the original hardware design, featuring higher anti-interference capability and fast response performance. It is suitable for driving any three-phase low-voltage BLDC motor (with or without Hall sensors) with a peak current of less than 15A and a power supply voltage ranging from DC 18V to 60V, and boasts the characteristic of low temperature during high-current operation. The product is applied in a series of electrical automation control fields such as knitting equipment, medical equipment, food packaging machinery, and power tools.

Key Features

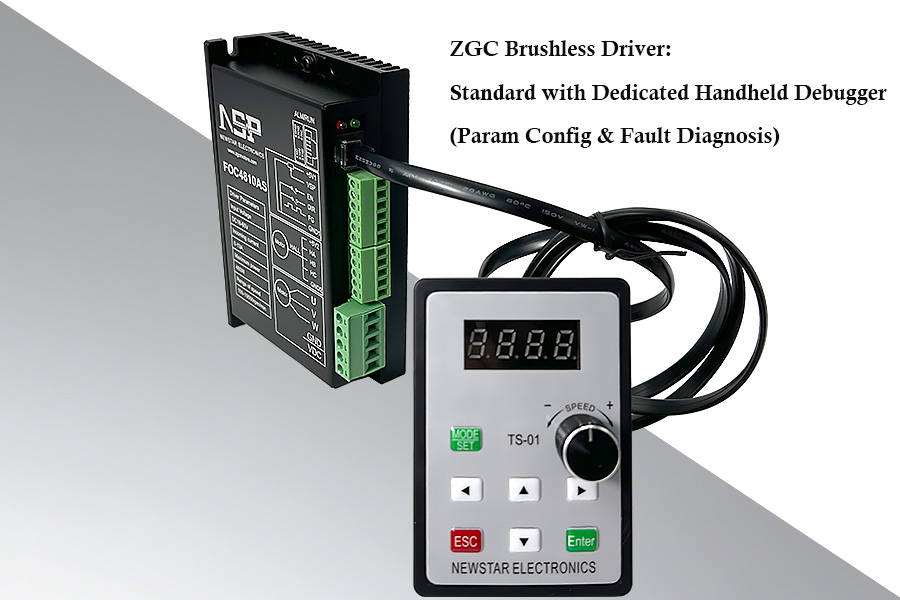

  • External display panel can be connected to show speed, set drive parameters, or connect to a computer.
  • Dual closed-loop design for current and speed, featuring high torque at low speeds and smooth operation.
  • High torque and high speed output, with a maximum speed of up to 10000rpm/min.
  • Speed control methods: Analog (0-5V), PWM(10Hz-300Hz).
  • Equipped with signal input terminals including EN (Start/Stop), DIR (Direction), and Brake (Electromagnetic Brake).
  • Can output speed signal, fault signal, etc.
  • Protections include overcurrent, overvoltage, undervoltage, and motor stall.

Function Overview

  1. Square Wave Hall Sensor-based Open-Loop Speed Control
  2. Square Wave Hall Sensor-based Closed-Loop Speed Control
  3. Square Wave Hall Sensorless Open-Loop Speed Control
  4. Square Wave Hall Sensorless Closed-Loop Speed Control
  5. Sine Wave Hall Sensor-based Open-Loop Speed Control
  6. Sine Wave Hall Sensor-based Closed-Loop Speed Control
  7. Sine Wave Hall Sensorless Open-Loop Speed Control
  8. Sine Wave Hall Sensorless Closed-Loop Speed Control

Environmental Parameters

Parameter Specification
Cooling Method Natural air cooling (Forced air cooling is recommended)
 Environment Application Avoid dust, oil mist and corrosive gases
Temperature 0℃～+50℃
Humidity <80%RH, non-condensing, no frost
Vibration ﹤0.5G（4.9 m/s²）10Hz-60Hz (non-continuous operation)
Storage Temperature -20℃～+65℃
Dimensions 118 × 76 × 34 mm
Weight 271.52g

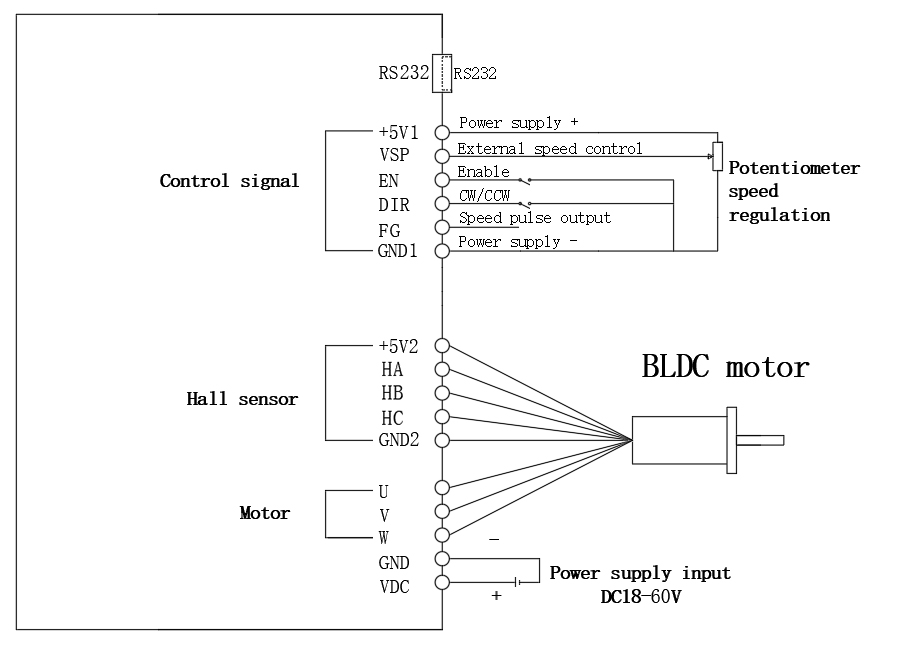

Wiring Diagram

Brushless Driver Function Parameter Table
Function Brushless Drive Model
Basic Series Standard Series Enhanced Series UL Certified Enhanced Series
Hardware Parameters NSP BLDC-4805 BLDC-4810 BLDC-4820 BLDC-4830 BLDC-2205 BLDC-4810A BLDC-4820A BLDC-4830A BLDC-2205A BLDC-2210A FOC-4810AS FOC- 4820AS FOC-4830AS FOC-2205AS FOC-2210AS BLDC-4810B BLDC-4820B BLDC-4830B BLDC-2205B BLDC-2210B BLDC-2215B
Input Voltage DC18-60V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
AC90-265V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Input Current DC1-5A ✔
DC-10A ✔ ✔ ✔ ✔
DC-20A ✔ ✔ ✔ ✔
DC-30A ✔ ✔ ✔ ✔
AC-05A ✔ ✔ ✔ ✔
AC-10A ✔ ✔ ✔
AC-15A ✔
Output Speed 5-10000 rpm ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Hardware Functions Potentiometer Input 0-5V ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
0-10V ✔ ✔ ✔ ✔ ✔ ✔
Enable Input Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Direction Input Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Pulse Input Duty Cycle Input ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Input ✔ ✔ ✔ ✔ ✔ ✔
ABS Brake Active Low ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Speed Output Pulse Waveform ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Fault Output Active High ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Communication Interface TTL Interface ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
RS232 Interface ✔ ✔ ✔ ✔ ✔ ✔
RS485 Interface ✔ ✔ ✔ ✔ ✔ ✔
CAN Interface ✔ ✔ ✔ ✔ ✔ ✔
Termination Resistor ✔ ✔ ✔ ✔ ✔ ✔
Handheld Speed Controller ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Host Computer Speed Control ✔ ✔
Software Functions Square Wave Mode Square Wave Hall-based ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Hall Sensorless ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Open-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Square Wave Closed-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Mode Sine Wave Hall-based ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Hall Sensorless ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Open-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Sine Wave Closed-Loop ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Certification CE Europe ✔ ✔ ✔ ✔ ✔ ✔
UL USA ✔ ✔ ✔ ✔ ✔ ✔

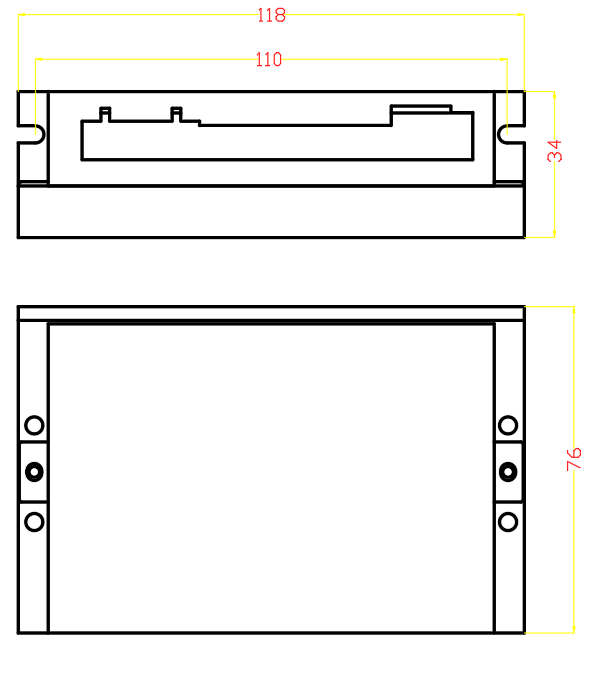

Unit:mm

NSP-FOC4810AS User Manual-V2.3.pdf
