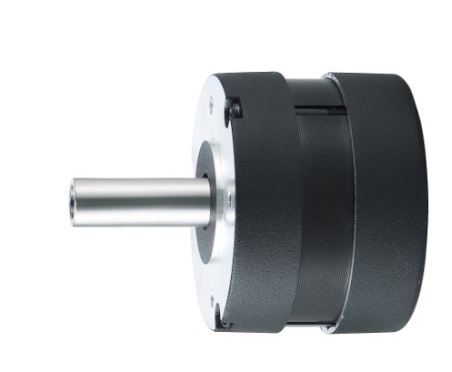

High-Performance Brushless DC Motor
- Key Features: 150-450W power, 12-310V DC voltage, 0.45-1.75Nm rated torque, wide speed range, high efficiency, long lifetime.
- Applications: Texitle machine
- Optional Accessories: Planetary gearbox, encoder, brake.

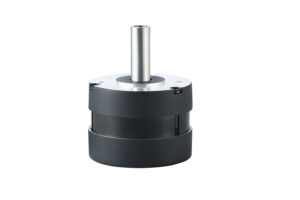

High-Performance Brushless DC Motor
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |

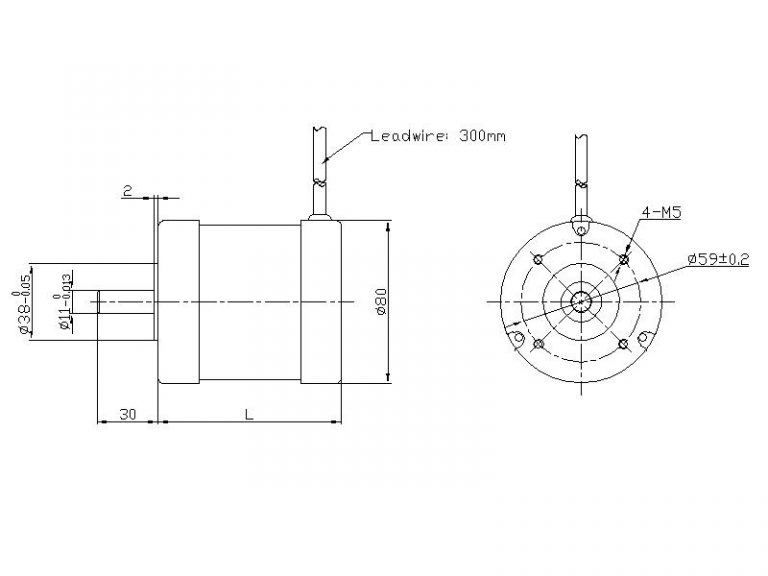

WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 16AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 80DMWR58-7230 | 80DMWR78-7230 | 80DMWR98-7230 | |
| Voltage | V | 72 | ||
| Number of poles | 8 | |||
| Rated power | W | 150 | 300 | 450 |
| No load speed | rpm | 3800 | 3800 | 3800 |
| Rated torque | Nm | 0.45 | 0.9 | 1.45 |
| Rated Speed | rpm | 3000 | 3000 | 3000 |
| Rated Current | A | 4 | 8 | 15 |
| Peak Torque | Nm | 1.35 | 2.7 | 4.35 |
| Weight | Kg | 0.9 | 1.2 | 1.5 |
| Length | mm | 58 | 78 | 98 |
