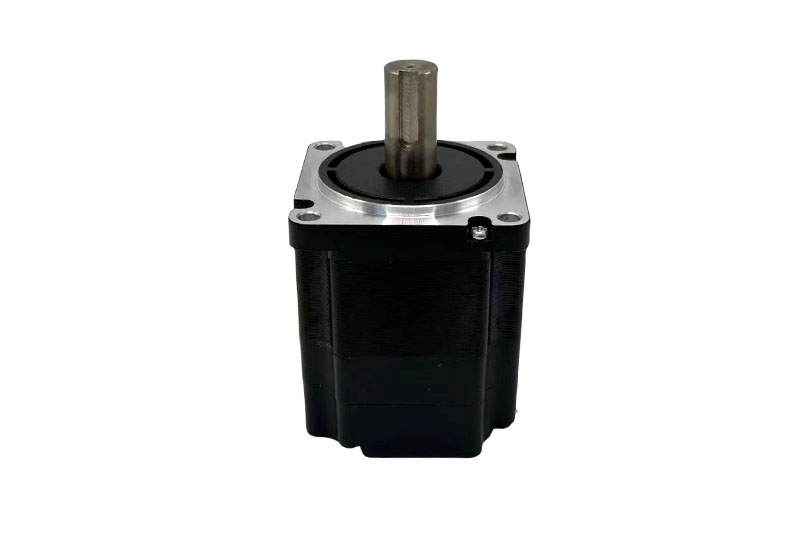

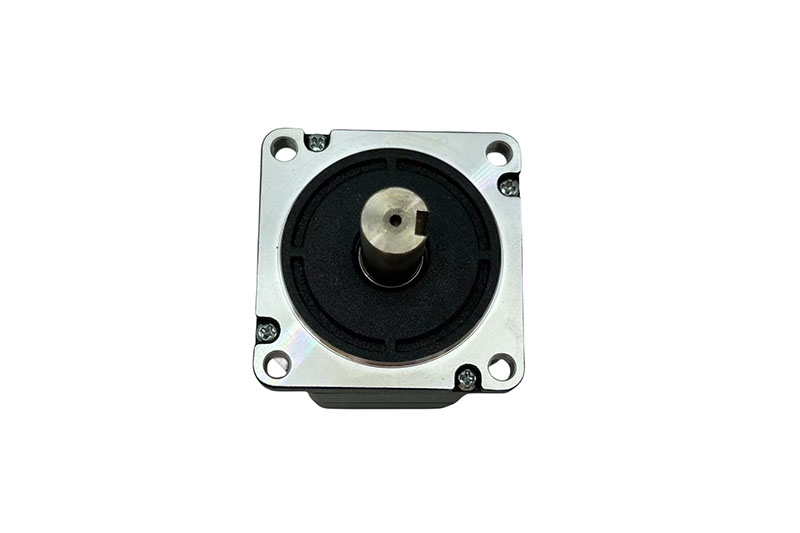

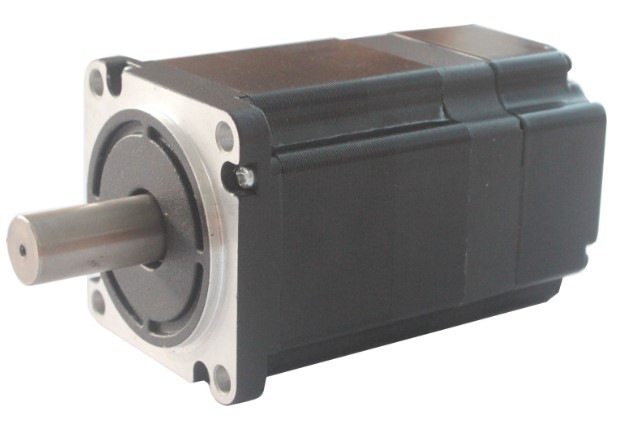

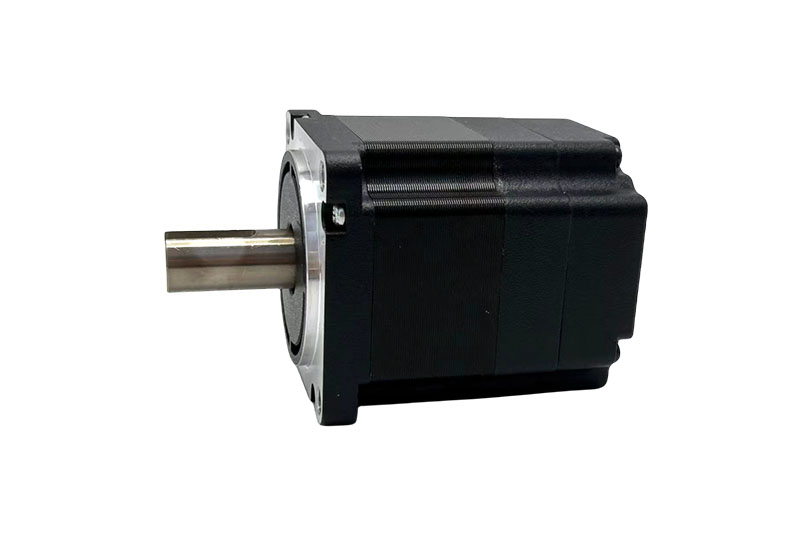

Medium Size Brushless DC Motor
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |

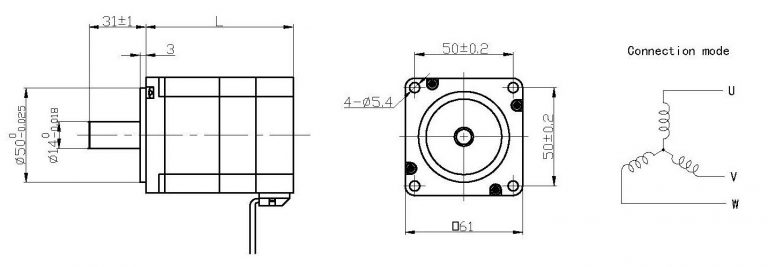

WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 18AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 60DMW75-3630 | 60DMW95-3630 | 60DMW115-3630 | |
| Voltage | V | 36 | ||
| Number of poles | 8 | |||
| Rated power | W | 80 | 160 | 230 |
| No load speed | rpm | 4100 | 4100 | 4100 |
| Rated torque | Nm | 0.25 | 0.5 | 0.75 |
| Rated Speed | rpm | 3000 | 3000 | 3000 |
| Rated Current | A | 3 | 6 | 9 |
| Torque(max) | Nm | 0.75 | 1.5 | 2 |
| Back-EMF constant | V/Krpm | 6.2 | 6.5 | 6.5 |
| Torque Constant | Nm/A | 0.043 | 0.045 | 0.041 |
| Resistance | ohm | 0.59 | 0.26 | 0.2 |
| Weight | Kg | 0.9 | 1.2 | 1.6 |
| Length | mm | 75 | 95 | 115 |
