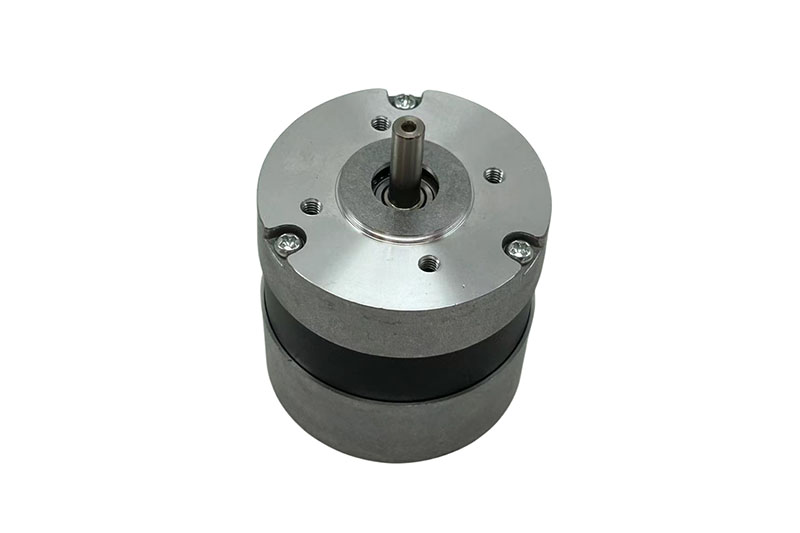

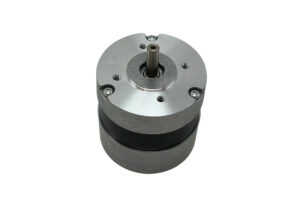

High-Torque Brushless DC Motor
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |
WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 18AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 57DMWH54(6)-2435 | 57DMWH69(6)-2435 | 57DMWH105(6)-2435 | |
| Voltage | V | 24 | ||
| Number of poles | 6 | |||
| Rated power | W | 70 | 140 | 260 |
| No load speed | rpm | 4700 | 4700 | 4700 |
| Rated torque | Nm | 0.2 | 0.37 | 0.7 |
| Rated Speed | rpm | 3500 | 3500 | 3500 |
| Rated Current | A | 4 | 8 | 15 |
| Peak Torque | Nm | 0.6 | 1.1 | 2.1 |
| Weight | Kg | 0.5 | 0.7 | 1.3 |
| Length | mm | 54 | 69 | 105 |
