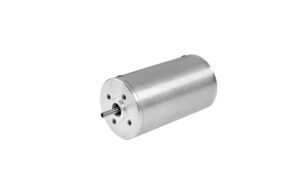

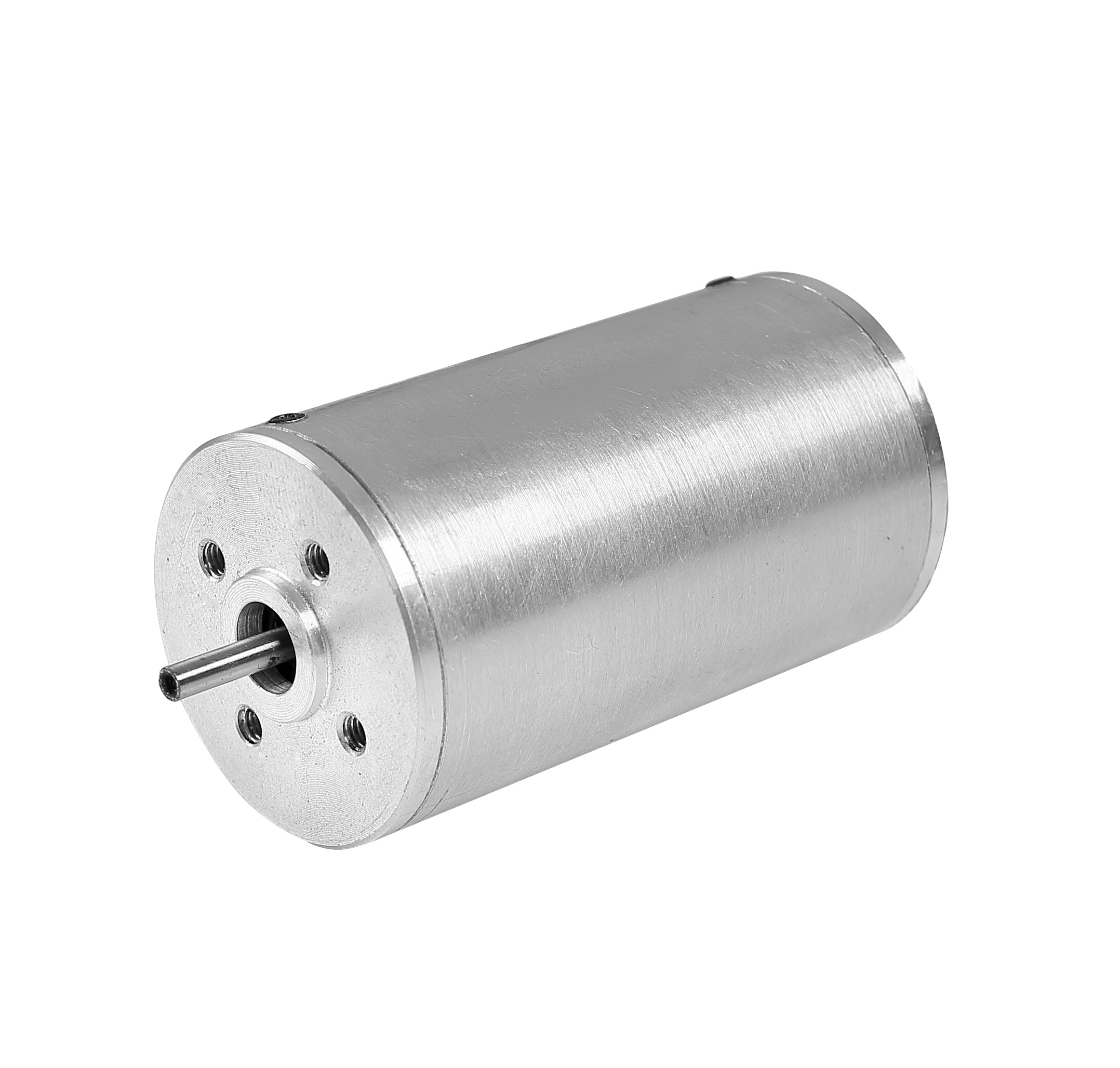

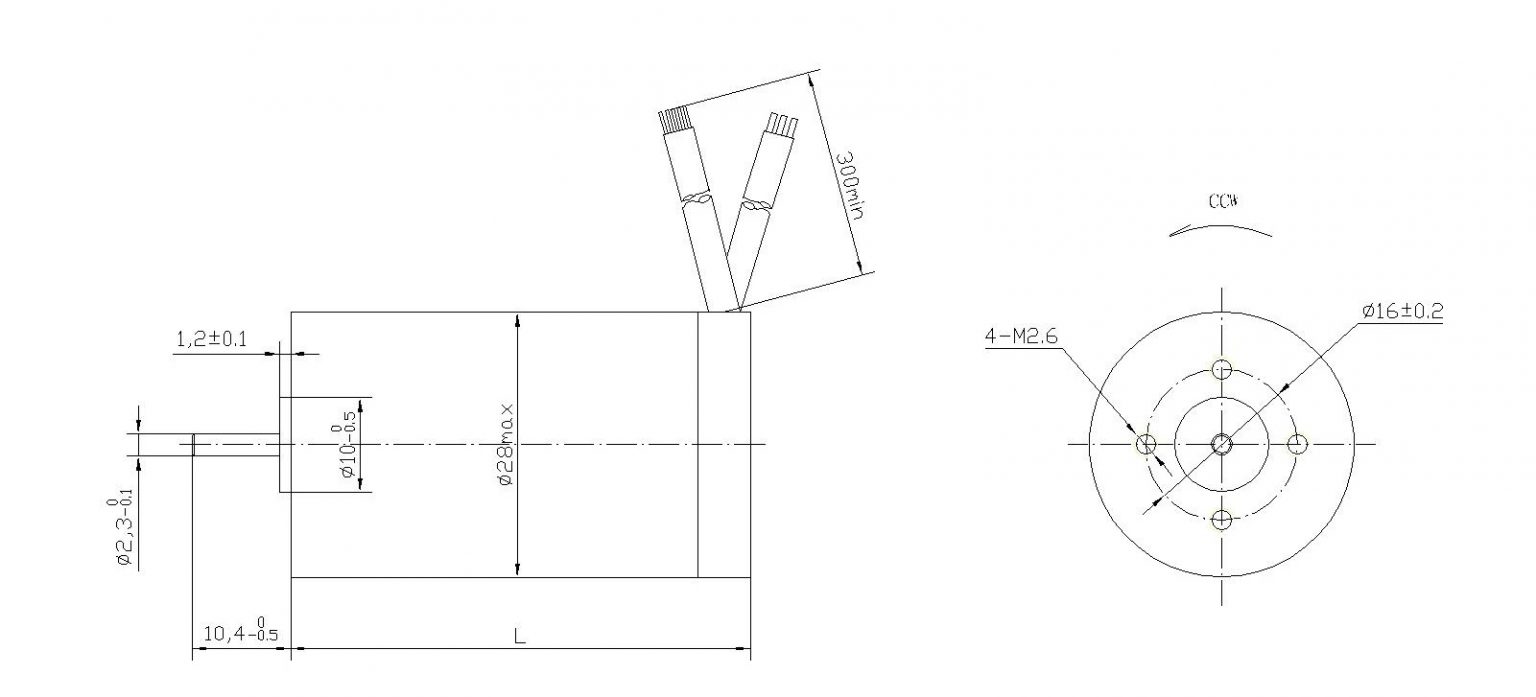

28 series brushless DC motor
Compact & Powerful: Small size, 5-10W power, 12-48V DC wide voltage.
Stable & Precise Torque: Rated torque of 10-20 mN·m for reliable performance.
High Speed & Efficiency: Wide speed range with high operational efficiency.
Custom High Speed: High speeds above 10,000 rpm can be customized.
For Medical Equipment: Ideal for demanding medical applications.
Optional Planetary Gearbox: Enhance torque and versatility.
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |
WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 20AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 28DMW38-2450 | 28DMW43-2450 | 28DMW48-2450 | |
| Voltage | V | 24 | ||
| Number of poles | 4 | |||
| Rated power | W | 6 | 8 | 10 |
| No load speed | rpm | 6000 | 6000 | 6000 |
| Rated torque | Nm | 0.01 | 0.015 | 0.02 |
| Rated Speed | rpm | 5000 | 5000 | 5000 |
| Rated Current | A | 0.5 | 0.8 | 1 |
| Peak Torque | Nm | 0.003 | 0.045 | 0.06 |
| Weight | Kg | 0.08 | 0.1 | 0.14 |
| Length | mm | 38 | 43 | 48 |
