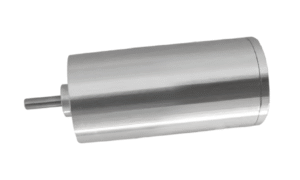

Brushless DC motor with compact size and high speed for electric curtain
Brushless DC motor with compact size and high speed for electric curtain
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation class: Class B |
| Dielectric strength: 500VDC for one minute |
| Ambient temperature: -20—+40℃ |
WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | ORG | 28AWG UL1569 | Phase U |
| 2 | BRN | Phase V | |
| 3 | GRE | Phase W | |
| 4 | RED | 28AWG UL1569 | +5V |
| 5 | YEL | Hall A | |
| 5 | WHI | Hall B | |
| 7 | BLU | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 16DMW32-24120 | |
| Voltage | V | 24 |
| Number of Poles | 2 | |
| Rated Power | W | 8.7 |
| No Load Speed | rpm | 16000 |
| Rated Torque | m.Nm | 6.9 |
| Rated Speed | rpm | 12000 |
| Rated Current | A | 1 |
| Peak Torque | m.Nm | 15 |
| Weight | Kg | 0.03 |
| Length | mm | 32 |
