High-Power Brushless DC Motor with High Torque
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |
WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 8AWG UL1569 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 130DMW190-7230 | 130DMW240-7230 | |
| Voltage | V | 72 | |
| Number of poles | 8 | ||
| Rated power | W | 3000 | 4500 |
| No load speed | rpm | 3600 | 3600 |
| Rated torque | Nm | 9.5 | 14.50 |
| Rated Speed | rpm | 3000 | 3000 |
| Rated Current | A | 52 | 78 |
| Peak Torque | Nm | 28 | 43 |
| Weight | Kg | 10.4 | 13 |
| Length | mm | 190 | 240 |

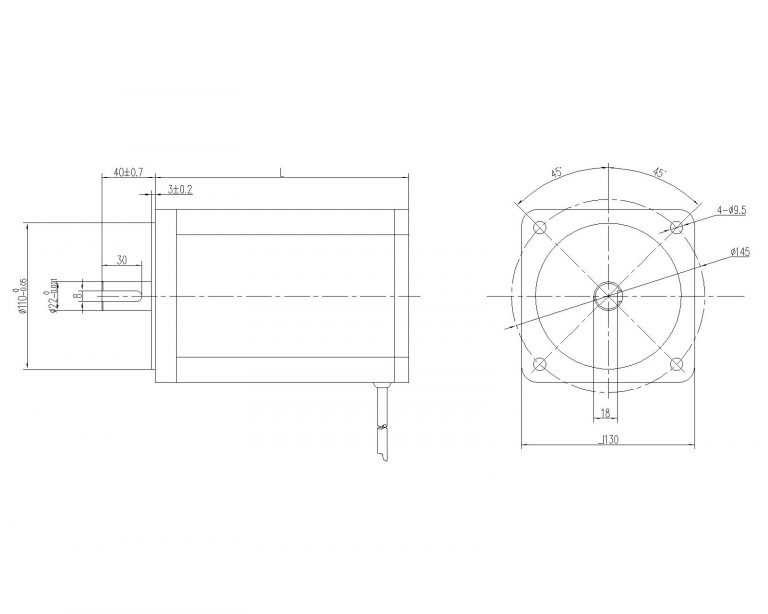

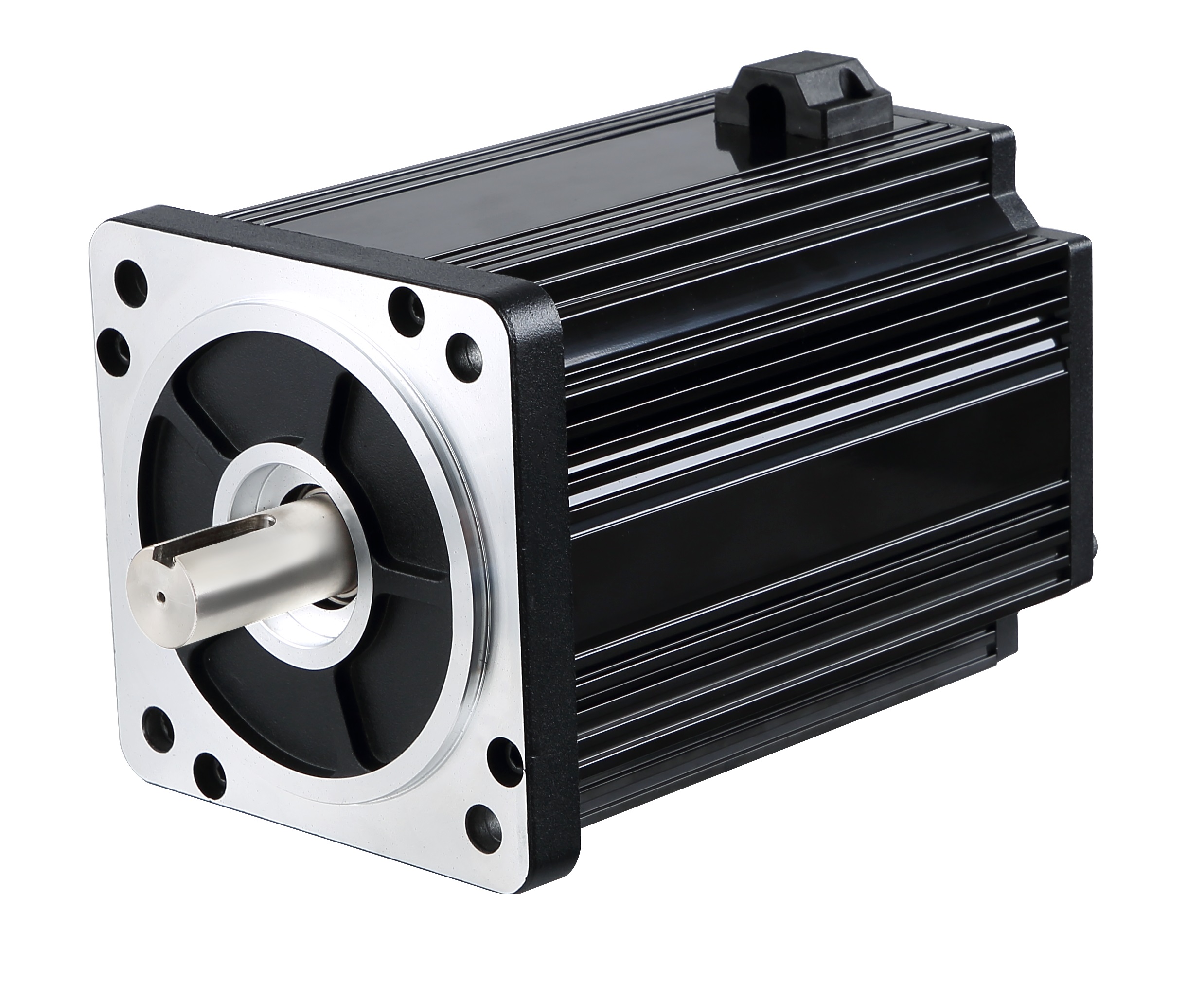

High-Torque Brushless DC Motor
This high-torque BLDC motor delivers robust power ranging from 3000W to 4500W, making it an ideal high-power brushless DC motor for demanding automation tasks. Its wide 12-310V DC voltage input offers exceptional flexibility in various industrial settings.
Engineered for performance, it provides a substantial rated torque of 9.5 to 14.5 Nm, ensuring reliable operation in AGV drive motor and conveyor belt motor applications. The motor’s wide speed range, high efficiency, and long lifetime make it a superior industrial BLDC motor for continuous duty cycles.
As a powerful sorting system motor and logistics automation motor, it is perfectly suited to drive automated conveyor belt transportation systems and other heavy-duty machinery.
To further customize its performance, a range of optional accessories is available, including a planetary gearbox, encoder for precise control, and a brake for enhanced safety.
