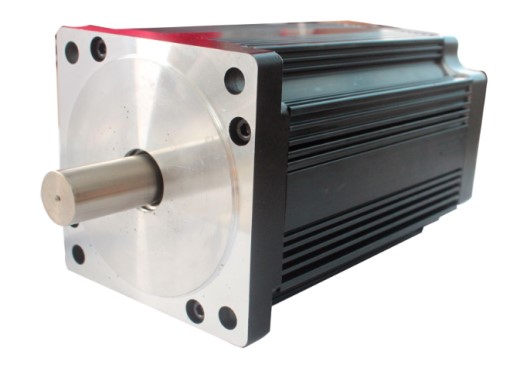

High-Torque Brushless DC Motor
- Key Features: 440-1700W power, 12-310V DC voltage, 1.65-6.6Nm rated torque, wide speed range, high efficiency, long lifetime.
- Applications: industrial automation
- Optional Accessories: Planetary gearbox, encoder, brake.
GENERAL SPECIFICATION
| Winding type: Star |
| Hall effect angle: 120 degree electrical angle |
| Shaft run out: 0.025mm |
| Insulation Class: Class B |
| Dielectric strength:500VDC for one minute |
| Ambient temperature: -20—+40℃ |

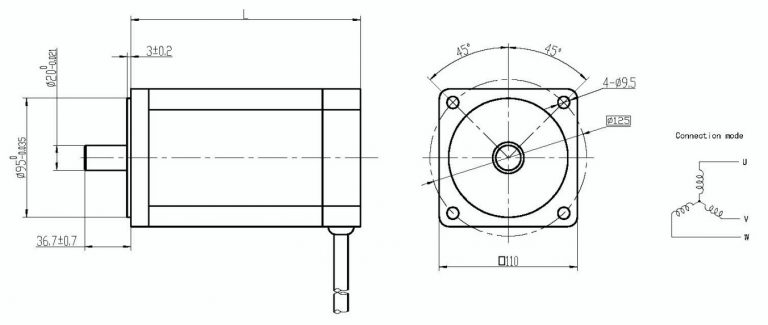

WIRE DIAGRAM
| Lead No. | Lead Color | Lead Gauge | Function |
| 1 | RED | 14AWG UL1015 | Phase U |
| 2 | YEL | Phase V | |
| 3 | BLA | Phase W | |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | Hall A | |
| 5 | GRE | Hall B | |
| 7 | WHI | Hall C | |
| 8 | BLA | GND |
ELECTRICAL SPECIFICATION
| Model | 110DMW93- 31025 | 110DMW123- 31025 | 110DMW153- 31024 | 110DMW183- 31025 | |
| Voltage | V | 310 | |||
| Number of poles | 8 | ||||
| Rated power | W | 440 | 900 | 1300 | 1700 |
| No load speed | rpm | 2900 | 2900 | 2800 | 2900 |
| Rated torque | Nm | 1.65 | 3.30 | 5 | 6.6 |
| Rated Speed | rpm | 2550 | 2550 | 2400 | 2550 |
| Rated Current | A | 2 | 3.5 | 5.1 | 6.7 |
| Torque(max) | Nm | 6 | 12 | 18 | 23 |
| Torque Constant | Nm/A | 1.11 | 1.11 | 1.11 | 1.11 |
| Resistance | ohm | 5 | 2.46 | 1.7 | 1.3 |
| Weight | Kg | 4.2 | 5.5 | 6.8 | 8.1 |
| Length | mm | 93 | 123 | 153 | 183 |
