Max efficiency of gear box : 81%
Max permmissible torque : 20Nm
Motor power : 100-400W
Application : Gate system
Max efficiency of gear box : 81%
Max permmissible torque : 20Nm
Motor power : 100-400W
Application : Gate system
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Rated
voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Rated current | Length |
| VDC | r/min | r/min | N.m | W | A | mm | |
| 86DMW60-4830 | 48 | 3500 | 3000 | 0.32 | 100 | 3.5 | 55 |
| 86DMW70-4830 | 48 | 3500 | 3000 | 0.64 | 200 | 7 | 65 |
| 86DMW80-4830 | 48 | 3500 | 3000 | 1.0 | 300 | 10.5 | 75 |
| 86DMW90-4830 | 48 | 3500 | 3000 | 1.3 | 400 | 14 | 85 |

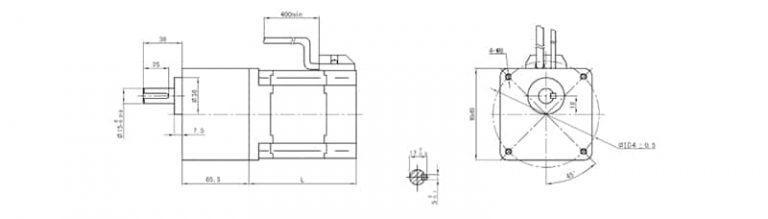

SPUR GEAR BOX SPECIFICATION
| Number of gear trains | 1 | 2 | 3 |
| Reduction ratio | 3/3.6/5/6/7.5/9/12.5/15/18 | 25/30/36 | 50/60/75/90/100/120/150/180/200 |
| length | 65.5 | 65.5 | 65.5 |
