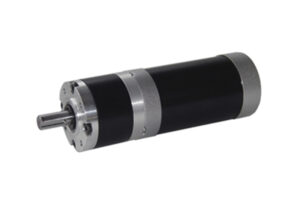

57mm OD Planetary Gearbox
Permissible Load Range : 3N.m~30N.m
Motor Power : 80-200W optional
Application : elevator door,solar cleaning system
57mm OD Planetary Gearbox
Permissible Load Range : 3N.m~30N.m
Motor Power : 80-200W optional
Application : elevator door,solar cleaning system
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number
of poles |
Number
of phase |
Rated
voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Peak
torque |
Peak
current |
| VDC | r/min | r/min | N.m | W | N.m | A | |||
| 57DMW115-2420 | 4 | 3 | 24 | 3000 | 2000 | 0.43 | 90 | 1.29 | 16 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | |
| Length(L) | mm | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 |
| No-load speed | r/min | 833 | 706 | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 |
| Rated speed | r/min | 556 | 471 | 154 | 133 | 111 | 87 | 43 | 36 | 31 | 26 |
| Rated torque | N.m | 1.4 | 1.6 | 4.5 | 5.2 | 6.3 | 8.0 | 15 | 17 | 20 | 24 |
| Peak torque | N.m | 9 | 9 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 |
