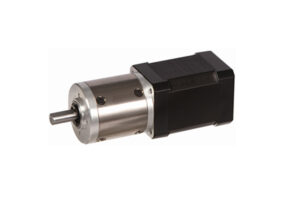

42mm OD Planetary Gearbox, Permissible Load Range : 0.5N.m~5N.m
Motor power : 25-50W optional
Application : texitle machine, vending machine
42mm OD Planetary Gearbox, Permissible Load Range : 0.5N.m~5N.m
Motor power : 25-50W optional
Application : texitle machine, vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number
of poles |
Number
of phase |
Rated
voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Peak
torque |
Peak current |
| VDC | r/min | r/min | mN.m | W | mN.m | A | |||
| 42DMW61-2430 | 8 | 3 | 24 | 4000 | 3000 | 125 | 40 | 370 | 7 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | |

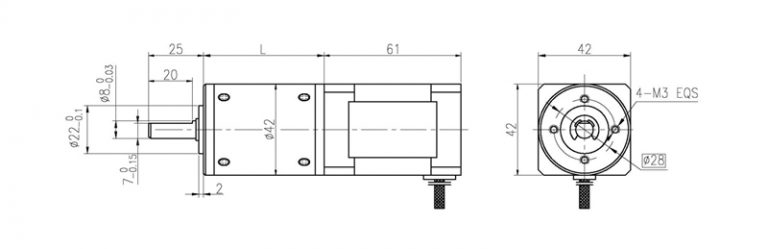

| Length(L) | mm | 34.9 | 34.9 | 45.5 | 45.5 | 45.5 | 55.9 | 55.9 |
| No-load speed | r/min | 1047 | 820 | 267 | 211 | 167 | 71 | 66 |
| Rated speed | r/min | 785 | 615 | 200 | 158 | 125 | 54 | 42 |
| Rated torque | N.m | 0.43 | 0.55 | 1.5 | 1.9 | 2.4 | 5 | 5 |
| Peak torque | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 |
