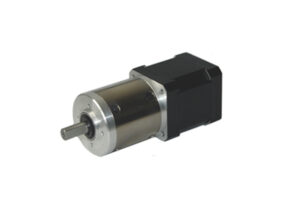

42mm OD Planetary Gearbox
Permissible Load Range : 0.5N.m~5N.m
Motor power : 20-40W optional
Application : reflowing soldering machine,vending machine
42mm OD Planetary Gearbox
Permissible Load Range : 0.5N.m~5N.m
Motor power : 20-40W optional
Application : reflowing soldering machine,vending machine
BRUSHLESS MOTOR SPECIFICATION
| TYPE | Number
of poles |
Number
of phase |
Rated
voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Peak
torque |
Peak
current |
| VDC | r/min | r/min | mN.m | W | mN.m | A | |||
| 42DMW51-2430 | 8 | 3 | 24 | 4000 | 3000 | 96 | 30 | 290 | 5.2 |
BRUSHLESS GEAR MOTOR SPECIFICATION
| Reduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | |

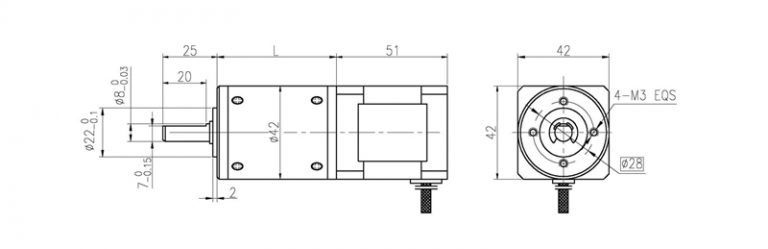

| Length(L) | mm | 34.9 | 34.9 | 45.5 | 45.5 | 45.5 | 55.9 | 55.9 | 55.9 |
| No-load speed | r/min | 1047 | 820 | 267 | 211 | 167 | 71 | 56 | 44 |
| Rated speed | r/min | 785 | 615 | 200 | 158 | 125 | 54 | 42 | 33 |
| Rated torque | N.m | 0.33 | 0.42 | 1.2 | 1.5 | 1.9 | 3.9 | 5 | 5 |
| Peak torque | N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 |
