28mm OD Planetary Gearbox
Permissible Load Range : 0.3N.m~3N.m
Motor power : 5-10W optional
Application : centrifugal machine
28mm OD Planetary Gearbox
Permissible Load Range : 0.3N.m~3N.m
Motor power : 5-10W optional
Application : centrifugal machine
BRUSHLESS MOTORSPECIFICATION
| TYPE | Number
of poles |
Number
of phase |
Rated
voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Peak
torque |
Peak
current |
| VDC | r/min | r/min | mN.m | W | mN.m | A | |||
| 28DMW49-2450 | 8 | 3 | 24 | 6000 | 5000 | 20 | 10 | 60 | 3 |
BRUSHLESS GEAR MOTORSPECIFICATION
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 96 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |

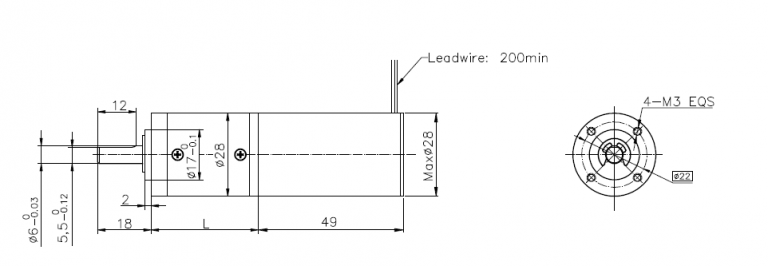

| Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| No-load speed | r/min | 1078 | 772 | 286 | 211 | 148 | 82 | 68 | 59 | 49 | 42 |
| Rated speed | r/min | 809 | 579 | 214 | 158 | 111 | 61 | 51 | 44 | 37 | 31 |
| Rated torque | N.m | 0.45 | 0.63 | 1.5 | 2.1 | 3.0 | 4.8 | 5.8 | 6.7 | 8.1 | 9.5 |
| Peak torque | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 |
