Max efficiency of gear box : 89%
Motor power : 100-300W
Application : AGV
Max efficiency of gear box : 89%
Motor power : 100-300W
Application : AGV
BRUSHLESS MOTORSPECIFICATION
| TYPE |
Rated voltage |
No-load
speed |
Rated
speed |
Rated
torque |
Rated
power |
Rated current | Length |
| VDC | rpm | rpm | N.m | W | A | mm | |
| 86DMW60-2430 | 24 | 3800 | 3000 | 0.33 | 100 | 6 | 55 |
| 86DMW70-2430 | 24 | 3800 | 3000 | 0.67 | 200 | 12 | 65 |
| 86MDW80-2430 | 24 | 3800 | 3000 | 1 | 300 | 18 | 75 |

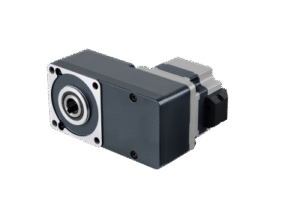

L TYPE GEAR BOXSPECIFICATION
86DMW60-2430
| Reduction ratio | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | ||||||
| Efficiency | 74% | 89% | ||||||||||||
| Rated speed | rpm | 600 | 300 | 200 | 150 | 100 | 60 | 30 | 15 | |||||
| Rated Toqrue | Nm | 1.2 | 2.4 | 3.5 | 4.8 | 7 | 12 | 24 | 40 | |||||
86DMW70-2430
| Reduction ratio | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | ||||||
| Efficiency | 74% | 89% | ||||||||||||
| Rated speed | rpm | 600 | 300 | 200 | 150 | 100 | 60 | 30 | 15 | |||||
| Rated Toqrue | Nm | 2.4 | 4.8 | 7 | 9.6 | 14 | 24 | 45 | 65 | |||||
86DMW80-2430
| Reduction ratio | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | ||||||
| Efficiency | 74% | 89% | ||||||||||||
| Rated speed | rpm | 600 | 300 | 200 | 150 | 100 | 60 | 30 | 15 | |||||
| Rated Toqrue | Nm | 3.5 | 8 | 12 | 16 | 24 | 38 | 50 | 70 | |||||
All gear box output turn direction in above form are opposite as motor direction
