60mm Planetary Gearbox
- Permissible Load Range: 2 N·m to 30 N·m
- Ring Gear Material: Metal
- Application: lawn mower
- Features: High transmission efficiency, Low noise, High precision, High torque.
- Motor: Permanent Magnet DC Motor

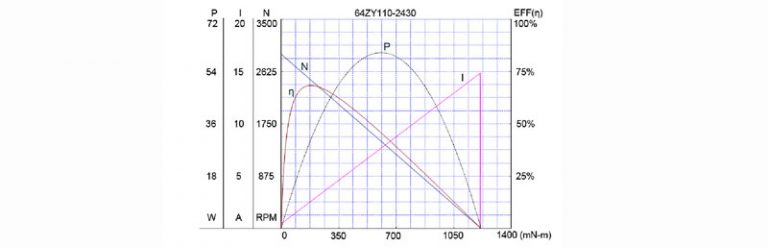

Motor Technical Data
|
Type |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | A | r/min | N.m | W | A | N.m | A | |
| 64ZY110-2436 | 24 | 3600 | 0.70 | 2700 | 0.36 | 102 | 6.0 | 1.4 | 21 |
Gear Motor Technical Data
64ZY110-2436 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | 153 | 187 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |

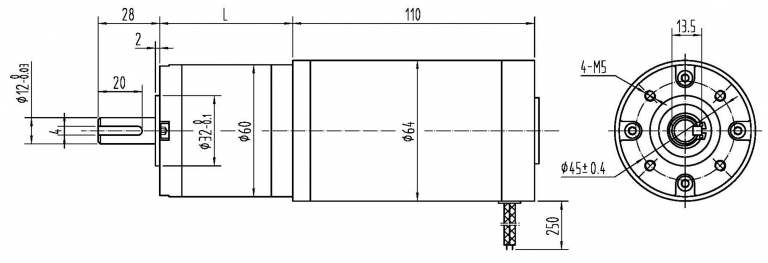

| Length(L) mm | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 |
| No-load speed r/min | 1000 | 847 | 277 | 240 | 200 | 157 | 77 | 65 | 55 | 47 | 38 | 30 | 24 | 19 |
| Rated speed r/min | 750 | 635 | 208 | 180 | 150 | 117 | 57 | 49 | 42 | 35 | 28 | 22 | 18 | 14 |
| Rated torque N.m | 1.2 | 1.4 | 3.8 | 4.4 | 5.2 | 6.7 | 12 | 14 | 17 | 20 | 25 | 30 | 30 | 30 |
| Max. permissible load in a short time
N.m |
9 | 9 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 |
