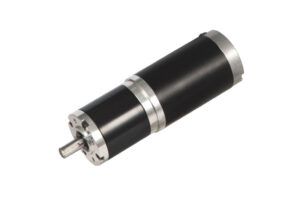

60mm Planetary Gearbox
- Permissible Load Range: 2 N·m to 30 N·m
- Ring Gear Material: Metal
- Application: Electric gate
- Features: High transmission efficiency, Low noise, High precision, High torque.
- Motor: Permanent Magnet DC Motor

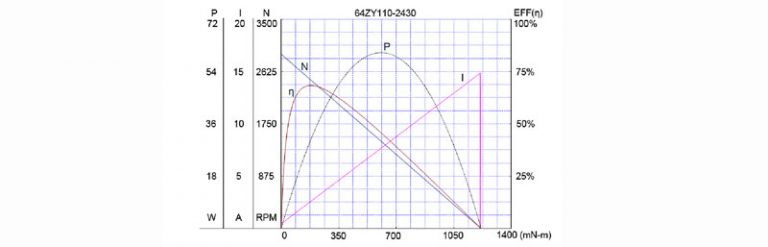

Motor Technical Data
|
TYPE |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | A | r/min | N.m | W | A | N.m | A | |
| 64ZY110-2430 | 24 | 3000 | 0.45 | 2300 | 0.24 | 58 | 3.3 | 1.1 | 15 |
Gear Motor Technical Data
64ZY110-2430 DC Motor
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 | 153 | 187 | 220 | 260 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |

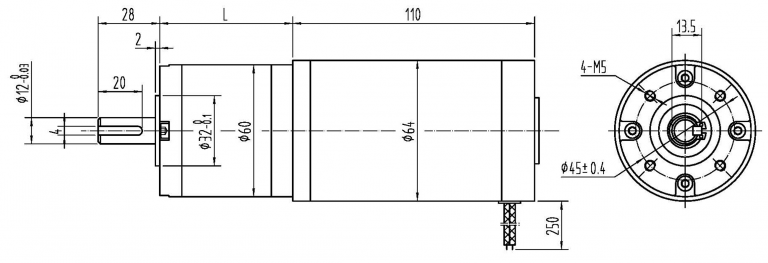

| Length(L) mm | 37.8 | 37.8 | 49.5 | 49.5 | 49.5 | 49.5 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 60.8 | 71.9 | 71.9 | 71.9 | 71.9 |
| No-load speed r/min | 833 | 706 | 231 | 200 | 167 | 130 | 64 | 55 | 46 | 39 | 31 | 25 | 20 | 16 | 14 | 12 |
| Rated speed r/min | 639 | 541 | 177 | 153 | 128 | 100 | 49 | 42 | 35 | 30 | 24 | 19 | 15 | 12 | 11 | 8.8 |
| Rated torque N.m | 0.78 | 0.92 | 2.5 | 2.9 | 3.5 | 4.5 | 8.2 | 9.6 | 11 | 14 | 17 | 21 | 24 | 29 | 30 | 30 |
| Max. permissible load in a short time N.m | 9 | 9 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 | 90 |
