56JXE300K/52ZY95 24V PMDC Planetary Gear Motor with High-Torque

52mm Planetary Gearbox

Permissible Load Range: 2 N·m to 30 N·m
Ring Gear Material: Metal
Application: Screen rolling
Features: Small volume, Light weight, High transmission efficiency, Low noise, High precision, High torque.
Motor: Permanent Magnet DC Motor

Motor Technical Data

TYPE	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
TYPE	VDC	r/min	A	r/min	N.m	W	A	N.m	A
52ZY95-2430	24	3000	0.45	2300	0.12	29	1.9	0.54	9.3
52ZY95-2440	24	4000	0.48	3400	0.11	39	2.7	0.73	12.3

Gear Motor Technical Data

52ZY95-2430 DC Motor

Reduction ratio	3.60	4.25	13	15	18	23	47	55	65	77	96	121	153	187	220	260	307	409
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	4	4	4	4	4	4
Length(L) mm	37.8	37.8	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9	71.9	71.9	71.9
No-load speed r/min	833	706	231	200	167	130	64	55	46	39	31	25	20	16	14	12	9.8	7.3
Rated speed r/min	639	541	177	153	128	100	49	42	35	30	24	19	15	12	11	8.8	7.5	5.6
Rated torque N.m	0.39	0.46	1.4	1.6	1.7	2.2	4.6	5.3	5.7	6.7	8.4	11	13	16	17	20	24	30
Max. permissible load in a short time N.m	6	6	36	36	36	36	72	72	72	72	72	72	90	90	90	90	90	90

52ZY95-2440 DC Motor

Reduction ratio	3.60	4.25	13	15	18	23	47	55	65	77	96	121	153	187	220	260	307	409
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	4	4	4	4	4	4
Length(L) mm	37.8	37.8	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9	71.9	71.9	71.9
No-load speed r/min	1111	914	308	267	222	174	85	73	62	52	42	33	26	21	18	15	13	9.8
Rated speed r/min	944	800	262	227	189	148	72	62	52	44	35	28	22	18	16	13	11	8.3
Rated torque N.m	0.36	0.42	1.3	1.5	1.6	2.0	4.2	4.9	5.2	6.2	7.7	9.7	12	15	16	19	22	29
Max. permissible load in a short time N.m	6	6	36	36	36	36	72	72	72	72	72	72	90	90	90	90	90	90

Dimensions

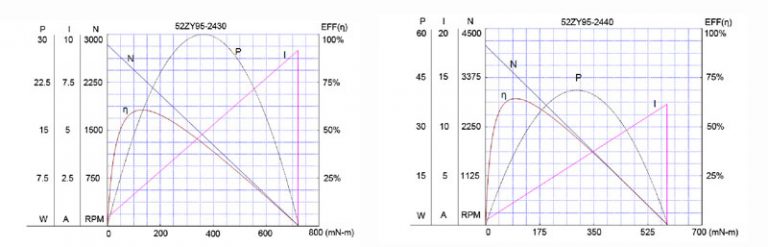

Characteristic Curve

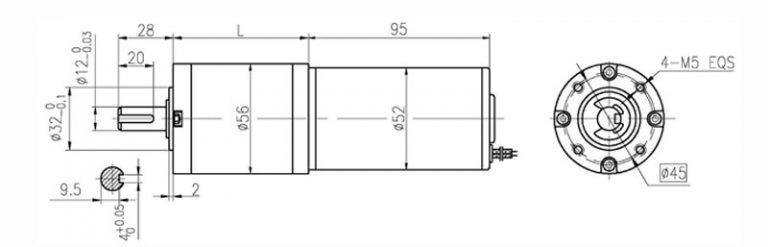

56JXE300K/52ZY95 Dimension Drawing & Specs
