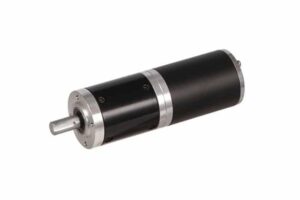

52JX300K/52ZY80 24V PMDC Planetary Gear Motor

High-Torque 52mm Planetary Gearbox

Permissible Load Range: 2 N·m to 20 N·m
Ring Gear Material: Metal
Application: Screen rolling
Features: Small volume, Light weight, High transmission efficiency, Low noise, High precision, High torque.
Motor: Permanent Magnet DC Motor

Motor Technical Data

TYPE	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
TYPE	VDC	r/min	A	r/min	N.m	W	A	N.m	A
52ZY80-2430	24	3000	0.35	2300	0.075	18	1.5	0.320	6.0
52ZY80-2440	24	4000	0.42	3200	0.080	27	2.0	0.446	7.5

Gear Motor Technical Data

52ZY80-2430 DC Motor

Reduction ratio	3.60	4.25	13	15	18	47	55	65	77	168	198	234	276	326
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	45.7	45.7	57.2	57.2	57.2	68.5	68.5	68.5	68.5	79.8	79.8	79.8	79.8	79.8
No-load speed r/min	833	706	231	200	167	64	55	46	39	18	15	13	11	9.2
Rated speed r/min	639	541	177	153	128	49	42	35	30	14	12	9.8	8.3	7.1
Rated torque N.m	0.24	0.29	0.79	0.91	1.1	2.6	3.0	3.6	4.2	8.2	10	11	13	16
Max. permissible load in a short time N.m	6	6	25	25	25	50	50	50	50	60	60	60	60	60

52ZY80-2440 DC Motor

Reduction ratio	3.60	4.25	13	15	18	47	55	65	77	168	198	234	276	326
Number of gear trains	１	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	45.7	45.7	57.2	57.2	57.2	68.5	68.5	68.5	68.5	79.8	79.8	79.8	79.8	79.8
No-load speed r/min	1111	941	308	267	222	85	73	62	52	24	20	17	15	12
Rated speed r/min	889	753	246	213	178	68	58	49	42	19	16	14	12	9.8
Rated torque N.m	0.26	0.31	0.84	1.0	1.2	2.7	3.2	3.8	4.5	8.7	10	12	14	17
Max. permissible load in a short time N.m	6	6	25	25	25	50	50	50	50	60	60	60	60	60

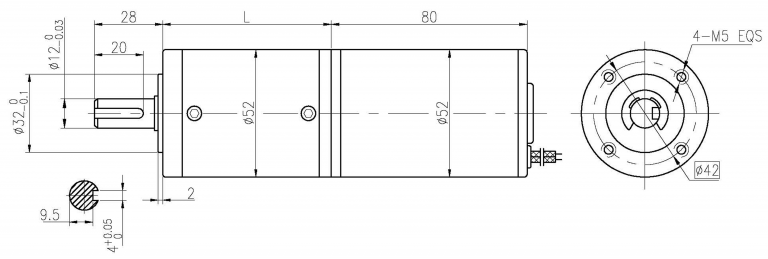

52JX300K/52ZY80 Dimension Drawing & Specs
