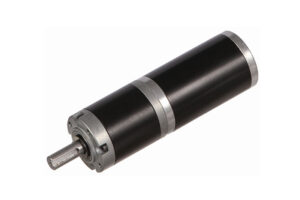

42JXE100K/42ZY75 PM DC Planetary Gear Motor

42mm OD Planetary Gearbox, Power and Precision in a Compact Design

Permissible Load Range: 1 N·m to 10 N·m
Ring Gear Material: Metal / Powder metal
Application: Electric tools
Features: Small volume, Light weight, High transmission efficiency, Low noise, High precision, High torque.
Motor: Permanent Magnet DC Motor

Motor Technical Data

Type	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
Type	VDC	r/min	A	r/min	mN.m	W	A	mN.m	A
42ZY75-2430	24	3000	0.15	2500	44	11.5	0.75	259	3.55
42ZY75-2440	24	4000	0.20	3500	55	20	1.2	360	6.3

Gear Motor Technical Data

42ZY75-2430DC Motor

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	181	219	254	306	354	427
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4	4
Length(L) mm	31.5	31.5	42.1	42.1	42.1	52.5	52.5	52.5	52.5	62.9	62.9	62.9	62.9	62.9	62.9
No-load speed r/min	809	579	214	158	111	59	42	30	22	17	14	12	9.8	8.5	7.0
Rated speed r/min	674	483	179	132	93	49	35	25	18	14	11	9.9	8.2	7.1	5.9
Rated torque N.m	0.15	0.21	0.50	0.68	0.96	1.6	2.3	3.2	4.5	5.2	6.3	7.3	8.8	10	10
Max. permissible load in a short time N.m	3	3	12	12	12	25	25	25	25	30	30	30	30	30	30

42ZY75-2440DC Motor

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	181	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	31.5	31.5	42.1	42.1	42.1	52.5	52.5	52.5	52.5	62.9	62.9	62.9	62.9	62.9
No-load speed r/min	1078	772	286	211	148	78	56	40	29	22	18	16	13	11
Rated speed r/min	943	676	250	184	130	69	49	35	25	19	16	14	11	9.9
Rated torque N.m	0.18	0.26	0.62	0.85	1.2	2.1	2.9	4.0	5.6	6.5	7.8	9.1	10	10
Max. permissible load in a short time N.m	3	3	12	12	12	25	25	25	25	30	30	30	30	30

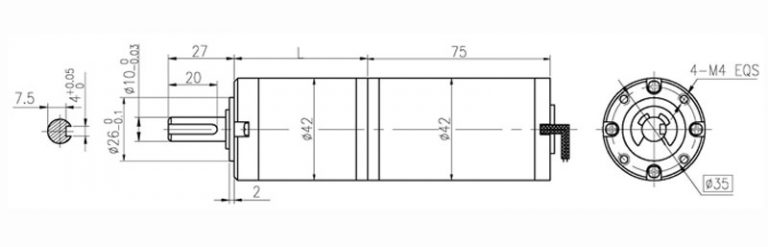

42JXE100K/42ZY75 Dimension Drawing & Specs
