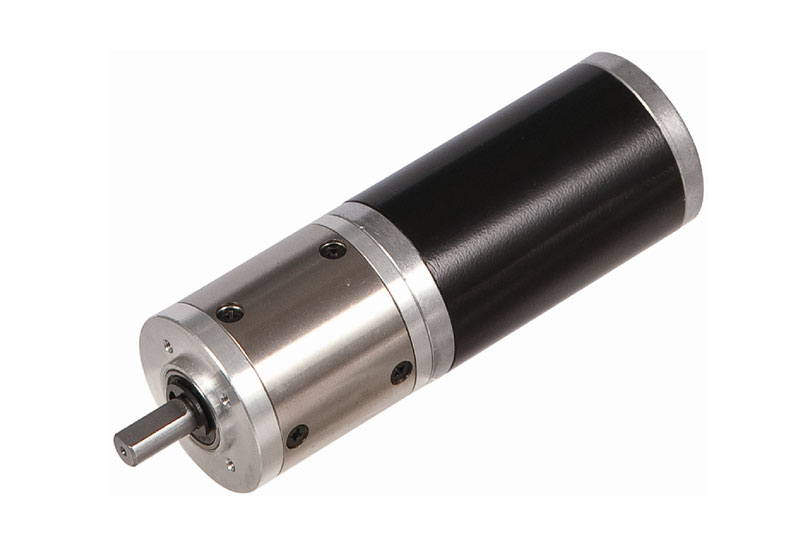

42mm OD Planetary Gearbox
- Permissible Load Range: 0.5 N·m to 5.0 N·m
- Ring Gear Material: Metal
- Motor: Permanent Magnet DC Motor
Motor Technical Data
| TYPE | |||||||||
| Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
|
| VDC | r/min | A | r/min | mN.m | W | A | mN.m | A | |
| 42ZY75-2430 | 24 | 3000 | 0.15 | 2500 | 44 | 11.5 | 0.75 | 259 | 3.55 |
| 42ZY75-2440 | 24 | 4000 | 0.20 | 3500 | 55 | 20 | 1.2 | 360 | 6.3 |
Gear Motor Technical Data
42ZY75-2430 DC Motor
| Reduction ratio | 3.82 | 4.88 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |

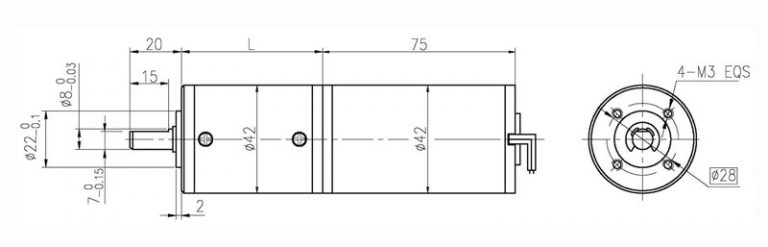

| Length(L) mm | 37.5 | 37.5 | 48.1 | 48.1 | 48.1 | 58.5 | 58.5 | 58.5 | 58.5 | 68.9 |
| No-load speed r/min | 785 | 615 | 200 | 158 | 125 | 54 | 42 | 33 | 26 | 14 |
| Rated speed r/min | 654 | 512 | 167 | 132 | 104 | 45 | 35 | 27 | 22 | 12 |
| Rated torque N.m | 0.15 | 0.19 | 0.53 | 0.68 | 0.86 | 1.8 | 2.3 | 2.9 | 3.7 | 5 |
| Max. permissible load in a short time N.m | 1.5 | 1.5 | 6 | 6 | 6 | 15 | 15 | 15 | 15 | 15 |
42ZY75-2440 DC Motor
| Reduction ratio | 3.82 | 4.88 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length(L) mm | 37.5 | 37.5 | 48.1 | 48.1 | 48.1 | 58.5 | 58.5 | 58.5 | 58.5 | 68.9 |
| No-load speed r/min | 1047 | 820 | 267 | 211 | 167 | 71 | 56 | 44 | 34 | 19 |
| Rated speed r/min | 916 | 717 | 233 | 184 | 146 | 63 | 49 | 37 | 30 | 17 |
| Rated torque N.m | 0.19 | 0.24 | 0.67 | 0.85 | 1.1 | 2.2 | 2.9 | 3.7 | 4.7 | 5 |
| Max. permissible load in a short time N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 |
