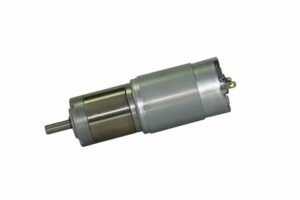

36JXE30K/36ZY57P PM DC Planetary Gear Motor

36mm OD Planetary Gearbox

Permissible Load Range: 0.3 N·m to 3.0 N·m
Ring Gear Material Options: Powder metal or Metal
Motor: Permanent Magnet DC Motor

Motor Technical Data

TYPE	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
TYPE	VDC	r/min	mA	r/min	mN.m	W	A	mN.m	A
36ZY57P-1260	12	6000	260	5000	25	13.1	1.6	75	4.8
36ZY57P-2460	24	6000	130	5000	26	13.5	0.8	78	2.4

Gear Motor Technical Data

36ZY57P-1260 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	115	139	181	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed r/min	1617	1158	429	316	222	118	85	60	52	43	33	27	24	20	17
Rated speed r/min	1346	965	357	263	185	98	70	50	43	36	28	23	20	16	14
Rated torque N.m	0.081	0.12	0.28	0.38	0.49	0.93	1.3	1.8	2.1	2.5	2.9	3	3	3	3
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	7.5	9	9	9	9	9

36ZY57P-2460DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	115	139	181	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed r/min	1617	1158	429	316	222	118	85	60	52	43	33	27	24	20	17
Rated speed r/min	1346	965	357	263	185	98	70	50	43	36	28	23	20	16	14
Rated torque N.m	0.087	0.12	0.29	0.40	0.51	1.0	1.3	1.9	2.2	2.6	3	3	3	3	3
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	7.5	9	9	9	9	9

36JXE30K/36ZY57P Dimension Drawing & Specs
