32JXE30K/28ZY47P PM DC Planetary Gear Motor

32mm OD Planetary Gearbox

Permissible Load Range: 0.3 N·m to 3.0 N·m
Ring Gear Material: Metal
Motor: Permanent Magnet DC Motor

Motor Technical Data

TYPE
	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Output power	Rated current	Stall torque	Stall current
	VDC	r/min	mA	r/min	mN.m	W	mA	mN.m	A
28ZY47P-2445	24	4500	80	3000	9	2.8	270	25	0.7
28ZY47P-2460	24	6000	100	4500	17	8.0	470	65	1.8

Gear Motor Technical Data

28ZY47P-2445 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	427	495	596
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4	4
Length(L) mm	25.7	25.7	32.8	32.8	32.8	39.7	39.7	39.7	39.7	46.6	46.6	46.6	46.6	46.6	46.6
No-load speed r/min	1213	869	321	237	167	88	63	45	32	24	17	12	11	9.1	7.6
Rated speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1	7.0	6.1	5.0
Rated torque N.m	0.030	0.042	0.10	0.14	0.20	0.34	0.47	0.66	0.91	1.1	1.5	2.2	2.5	2.9	3
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9	9	9

28ZY47P-2460 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	219	254	306	354
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	25.7	25.7	32.8	32.8	32.8	39.7	39.7	39.7	39.7	46.6	46.6	46.6	46.6	46.6
No-load speed r/min	1617	1158	429	316	222	118	85	60	43	32	27	24	20	17
Rated speed r/min	1213	869	321	237	167	88	63	45	32	24	21	18	15	13
Rated torque N.m	0.06	0.08	0.19	0.26	0.37	0.63	0.88	1.2	1.7	2.1	2.4	2.8	3	3
Max. permissible load in a short time N.m	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9	9

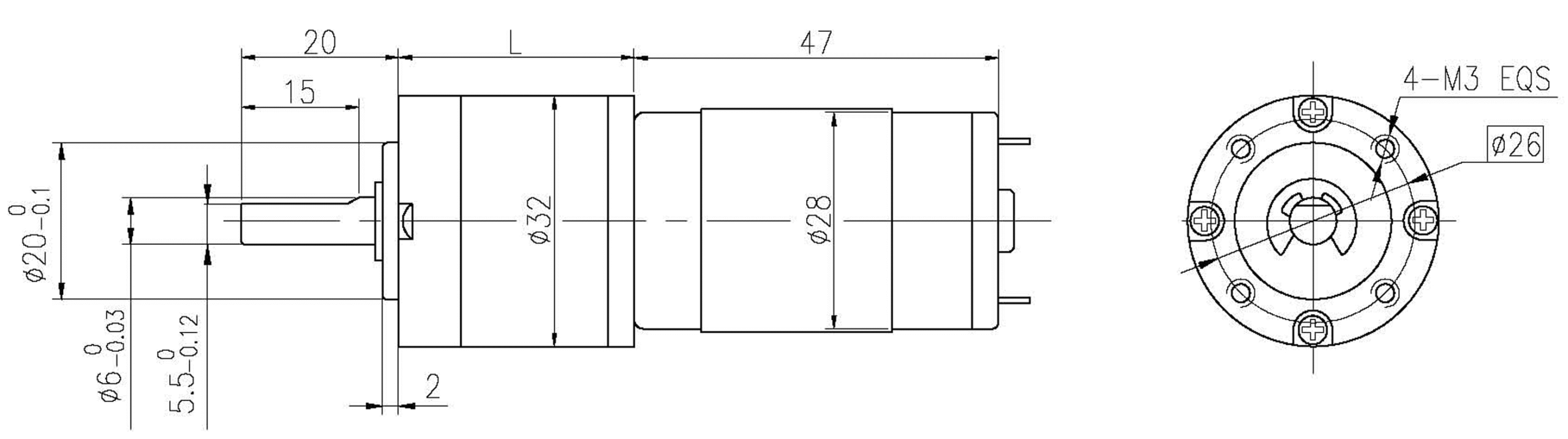

32JXE30K/28ZY47P Dimension Drawing & Specs
