Motor Technical Data
|
TYPE |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | A | r/min | mN.m | W | A | mN.m | A | |
| 42ZY75-2440 | 24 | 4000 | 0.20 | 3500 | 55 | 20 | 1.2 | 360 | 6.3 |
Gear Motor Technical Data
42ZY75-2440DC Motor
| Reduction ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |

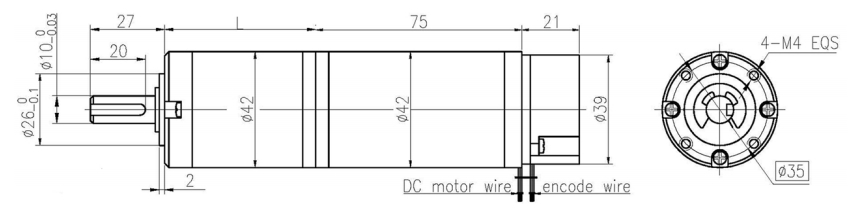

| Length(L) mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 62.9 | 62.9 | 62.9 | 62.9 | 62.9 |
| No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 22 | 18 | 16 | 13 | 11 |
| Rated speed r/min | 943 | 676 | 250 | 184 | 130 | 69 | 49 | 35 | 25 | 19 | 16 | 14 | 11 | 9.9 |
| Rated torque N.m | 0.18 | 0.26 | 0.62 | 0.85 | 1.2 | 2.0 | 2.9 | 4.0 | 5.6 | 6.5 | 7.8 | 9.0 | 10 | 10 |
| Max. permissible load in a short time N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 |
